iFlightPlanner



...

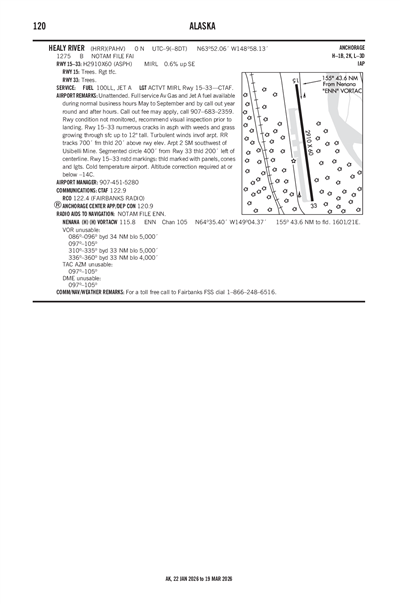

HEALY RIVER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAHV
ICAO PAHVIATA HRRLocal HRR
HEALY RIVER
PublicPUB

0 miles N of HEALY, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
63° 52' 03"N 148° 58' 08"W
Elevation
1275' MSL
Pattern Alt
2275' MSL
Mag Variation
16°E
Declination
16°E
Fuel
JET A, 100LL
FSS
FAIRBANKS (FAI)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAIN (8nm) VFR
7:56 PM AKST
Clear
10sm
-17°F
-24°F
29.54"Hg
Calm
AO2 SLP091 T12721311 FZRANO TSNO $
METAR PAIN 040456Z AUTO 00000KT 10SM CLR M27/M31 A2954 RMK AO2 SLP091 T12721311 FZRANO TSNO $
+ Add Your Business

PAHV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RY 15/33 - CTAF.

Center

ANCHORAGE CENTER 120.9
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC (ZAN) ON 120.9/319.2 (MURPHY DOME RCAG).

Flight Service

Flight Service 122.4
(FAI)

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PAFA (63nm)
Tue, 3/3 2:34 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 9:00 PM AKST
VFR
3:00 PM AKST - 9:00 PM AKST
Sky Clear
6sm
030° 3kts
TAF PAFA 032334Z 0400/0506 03003KT P6SM SKC
PAHV
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: 907-451-2200
JASON LUDINGTON
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: 907-451-5280
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
ACTVT MIRL RY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Charter Service

Runway 15/33

2910 ft. x 60 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 15 Runway 33
True Heading 172°352°
Traffic Pattern Right Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 63° 52' 17"N 63° 51' 49"N
Longitude 148° 58' 12"W 148° 58' 03"W
Elevation 1,256' 1,275'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TURBULENT WINDS INVOF ARPT.
A110-3RWY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-4ARPT 2 SM SW OF USIBELLI MINE.
A110-5RR TRACKS 700 FT FM THLD 20 FT ABOVE RWY ELEVATION.
A110-6COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -14C.
A33-15/33_CONDNUMEROUS CRACKS IN ASPH WITH WEEDS & GRASS GROWING THRU SFC UP TO 12 IN TALL.
A42-15_MARKRY 15/33 NSTD MKGS: THLD MKD BY PANELS, CONES & LIGHTS.
A70-AFULL SERVICE AV GAS AND JET A AVAILABLE DURING NORMAL BUSINESS HOURS MAY TO SEPTEMBER AND BY CALL OUT YEAR ROUND AND AFTER HOURS. CALL OUT FEE MAY APPLY, CALL: 907-683-2359.
A81-APTACTVT MIRL RY 15/33 - CTAF.
A84SEGMENTED CIRCLE 400 FT FM RY33 THLD 200 FT L OF CNTRLN.
HEALY RIVER (ICAO: PAHV, IATA: HRR) is a public airport located in HEALY, AK, US.
