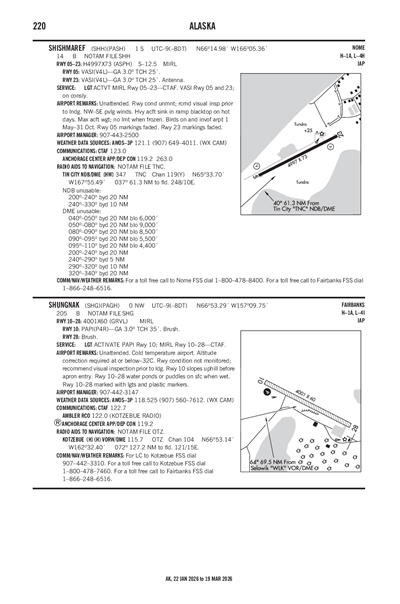

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAGH
SHUNGNAK
PublicPUB

0 miles NW of SHUNGNAK, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
66° 53' 17"N 157° 09' 45"W
205' MSL
1205' MSL
13E
None Listed
KOTZEBUE (OTZ)
FAIRBANKS
ANCHORAGE (ZAN)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

PAGH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.7

AWOS-3P

AWOS-3P
907-437-2024
 118.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PAGH
Domestic
1/14/252209Z !SHG 01/085 SHG APRON ALL FICON 1IN DRY SN OVER COMPACTED SN OBS AT 2501142209. 2501142209-2501152209
1/14/252209Z !SHG 01/084 SHG TWY ALL FICON 1IN DRY SN OVER COMPACTED SN OBS AT 2501142209. 2501142209-2501152209
1/14/252209Z !SHG 01/083 SHG RWY 28 FICON 100 PCT 1/4IN DRY SN OVER COMPACTED SN OBS AT 2501142209. 2501142209-2501152209
1/14/252209Z !SHG 01/082 SHG RWY 10 FICON 100 PCT 1/4IN DRY SN OVER COMPACTED SN OBS AT 2501142209. 2501142209-2501152209
12/23/241708Z !SHG 12/097 SHG SVC AUTOMATED WX BCST SYSTEM PRECIPITATION U/S 2412231708-2504271500
12/13/242234Z !SHG 12/057 SHG AD AP ABN U/S 2412132234-2502162359
12/5/240703Z !SHG 12/017 SHG RWY 10 PAPI LOW INTST U/S 2412050703-2507271500EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: (907) 451-2200
ALVIN WERNEKE
PO BOX 55
KOTZEBUE, AK 99752
Phone: 907-442-3147
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
SHG
--
ACTVT PAPI RWY 10; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 10/28

4001 ft. x 60 ft.
GRAVEL
Fair
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 117°297°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 66° 53' 26"N 66° 53' 08"N
Longitude 157° 10' 29"W 157° 08' 60"W
Elevation 174' 205'
Threshold Crossing Height 35 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2RWY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-3WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -35C.
SHUNGNAK (ICAO: PAGH, IATA: SHG) is a public airport located in SHUNGNAK, AK.
