PAFB
LADD AAF
PrivatePVT

2 miles E of FAIRBANKS/FT WAINWRIGHT, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
64° 50' 15"N 147° 36' 52"W
449' MSL
1449' MSL
17E
JP-8
FAIRBANKS (FAI)
FAIRBANKS
ANCHORAGE (ZAN)
7/11/24-8/8/24
PAFB LIFR
1:57 AM AKDT
Light Rain
Overcast 3,000'
Broken 2,000'
Broken 400'
7sm
45°F
44°F
29.73"Hg
230° 5kts
AO2A SLP075 P0002 T00730067 $
PAFB 190957Z 23005KT 7SM -RA BKN004 BKN020 OVC030 07/07 A2973 RMK AO2A SLP075 P0002 T00730067 $
Add Your Business

PAFB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 125.0

ATIS

ATIS
907-353-5233
 134.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
FM
 40.8
LCL/P
 125.0

Other

BASE OPS
 139.3
PAR
 121.3
PAR
 134.1
PMSV METRO
 142.1
RANGE CTL
FM
 38.3

FAA A/FD Pages

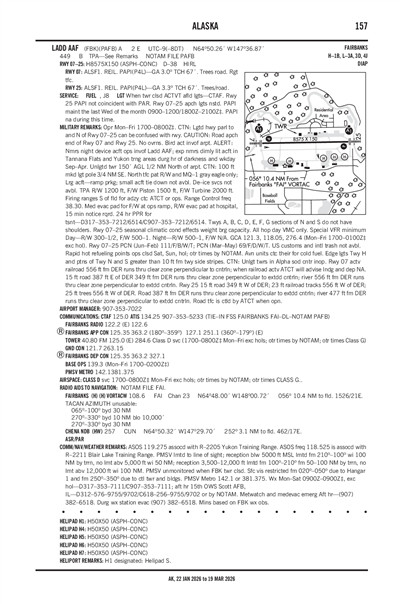

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAFB
Wed, 9/18 10:00 PM AKDT
Wed, 9/18 10:00 PM AKDT - Fri, 9/20 4:00 AM AKDT
VFR
10:00 PM AKDT - 1:00 AM AKDT
Light Rain
Overcast 4,000'
Scattered 2,100'
Few 600'
5.59sm
29.68"Hg
250° 5kts
Light, In Cloud (Rime): 4,000-9,000'
MVFR
Temporary 10:00 PM AKDT - 1:00 AM AKDT
Light Rain and Mist
Broken 2,000'
Scattered 600'
3.73sm
Calm
IFR
Becoming 1:00 AM AKDT - 6:00 AM AKDT
Light Rain and Mist
Broken 2,000'
Broken 500'
2.98sm
29.70"Hg
250° 6kts
Light, In Cloud (Rime): 4,000-13,000'
MVFR
Becoming 6:00 AM AKDT - 1:00 PM AKDT
Light Rain and Mist
Broken 2,000'
Scattered 500'
3.73sm
29.79"Hg
270° 9kts
Light, In Cloud (Rime): 4,000-9,000'
VFR
Becoming 1:00 PM AKDT - 4:00 PM AKDT
Broken 4,000'
Scattered 1,500'
6sm
29.91"Hg
270° 9kts
Light, In Cloud (Rime): 4,000-9,000'
MVFR
Becoming 4:00 PM AKDT - 4:00 AM AKDT
Broken 2,000'
Scattered 1,200'
6sm
29.94"Hg
260° 9kts
Light, In Cloud (Rime): 3,000-7,000'
TAF PAFB 190600Z 1906/2012 25005KT 9000 -RA FEW006 SCT021 OVC040 620405 QNH2967INS
   TEMPO 1906/1909 6000 -RA BR SCT006 BKN020
   BECMG 1909/1910 25006KT 4800 -RA BR BKN005 BKN020 620409 QNH2971INS
   BECMG 1914/1915 27009KT 6000 -RA BR SCT005 BKN020 620405 QNH2979INS
   BECMG 1921/1922 27009KT 9999 NSW SCT015 BKN040 620405 QNH2990INS
   BECMG 2000/2001 26009KT 9999 SCT012 BKN020 620304 QNH2995INS TX09/1922Z TN07/1910Z
PAFB
Military
9/23/241730Z AERODROME SLING LOAD OPNS, THREE H47 SLING LOADING STORAGE CONTAINERS VIA FBK-NORDALE-RP3-HUSKY-RIVER-FBK, AT OR BELOW 1500' MSL. 23 SEP 24, 0930L - 1600L (1730Z-0000Z).
9/20/241400Z !PAFB M0759/24 FBK SVC JP8 FUEL NOT AVBL FROM AFLD POL COLD & RAPID (HOT) FUEL ISSUING POINTS ON 20 SEPT 2024 BTWN 0600L - 0900L (1400Z - 1700Z). 2409201400-2409201700
9/19/241400Z !PAFB M0758/24 FBK SVC JP8 FUEL NOT AVBL FROM AFLD POL COLD & RAPID (HOT) FUEL ISSUING POINTS ON 19 SEPT 2024 BTWN 0600L - 0900L (1400Z - 1700Z). 2409191400-2409191700
9/18/242000Z AERODROME 18 SEP- 22 SEP: R2205 C/H WILL BE ACTIVE WITH INDIRECT LIVE FIRE ACTIVITIES VICINITY OF YTA MCMAHON CALFEX AND YTA OP SHACK DAILY FROM1200L- 1700L (2000Z - 0100Z). ALL NON-APPROVED AIRCRAFT WILL REMAIN CLEAR.
9/18/241600Z AERODROME 18 SEP - 22 SEP: R2205 A/B WILL BE ACTIVE WITH DIRECT LIVE FIRE ACTIVITIES VICINITY OF YTA MANCHU RANGE, YTA MPTR, AND YTA IPBC DAILY FROM 0800L - 0200L (1600Z - 1000Z). APPROVED AIRCRAFT WILL REMAIN ABOVE 4000' AGL. ALL NON-APPROVED AIRCRAFT WILL REMAIN CLEAR.
9/17/241600Z AERODROME 17 SEP - 22 SEP: R2205 A/B WILL BE ACTIVE WITH DIRECT LIVE FIRE ACTIVITIES VICINITY OF YTA MANCHU RANGE, YTA MPTR, AND YTA IPBC DAILY FROM 0800L - 0200L (1600Z - 1000Z). APPROVED AIRCRAFT WILL REMAIN ABOVE 4000' AGL. ALL NON-APPROVED AIRCRAFT WILL REMAIN CLEAR.
9/17/241600Z AERODROME VARIABLE HEIGHT ANTENNA (VHA) SYSTEMS IVO TA108 TO CONDUCT OPERATOR TRAINING. MAX ALTITUDE OF FLIGHT: 100&,146; AGL AND BELOW. LOCATION: TA 108, FWA LAUNCH GRID: 6450.586N14737.281W, UL: 6450.532N14738.117W, LL: 6450.361N14737.501W, UR: 6451.060N14737.051W, LR: 6450.455N14736.599W. GRID: 06WVS 70399 91686. LOST LINK PROCEDURES: NO EMERGENCY PROCEDURES. THE DRONE IS TETHERED AND WILL NOT FLY ABOVE 100FT AGL.
9/17/240047Z !PAFB M0764/24 FBK TWY D LOCATION SIGN MISSING FROM SW CORNER OF TWY D AND TWY H. 2409170047-2412102359
9/16/242100Z !PAFB M0751/24 FBK UNMANNED ACFT 16 SEP- 19 SEP: R2205 B/G WILL BE ACTIVE WITH UAV/UAS ACTIVITIES DAILY FROM 1300L - 2300L (2100Z - 0700Z). ALL NON-APPROVED AIRCRAFT WILL REMAIN CLEAR. DLY 2100-0700 2409162100-2409200700
9/10/242224Z !PAFB V0362/24 FBK AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 25 INCREASE CAT A CIRCLING MDA FROM 1000 TO 1020, HAT INCREASED FROM 551 TO 571. 2409102224-2411010001
9/6/241929Z OBST LIGHTS DO NOT WORK ON RVR TOWERS LOCATED IN ALPHA SOD CENTER. TEMPORARY BLINKING RED LIGHTS ARE INSTALLED.
9/5/241822Z AERODROME QUIET HOURS IN EFFECT WEDNESDAY 2 OCT FOR CHANGE OF RESPONSIBILITY CEREMONY FROM 1230L-1430L (2030Z-2230Z). NO APU OPS, ENGINE STARTS, RUN-UPS TAKE-OFFS OR LANDINGS DURING THIS PERIOD. ACTUAL MEDEVAC MISSIONS AND BLM FIREFIGHTING EXEMPT.
8/8/242358Z OBST CRANE IS FOR CONSTRUCTION WORK AND SHOULD BE IN USE UNTIL 1 NOV 2024. LOCATION IS WEST OF MERIDIAN ROAD AND NORTH OF THE PX EXTENSION ROAD. SOUTH OF OAK AVENUE. LATTITUDE: 64DEG 49.46? N, LONGITUDE 147 DEG 38.3? W. GROUND ELEVATION IS 454.0? AND BOOM IS 210? FOR A TOTAL ASML OF 664?. IT WILL HAVE RED LIGHTS AND A FLAG. ASN: 2024-AAL-492-OE.
8/8/242201Z !PAFB M0649/24 FBK TWY S BTN TWY D AND TWY E CLSD TEMPORARILY DUE TO PARKED ACFT. 2408082201-2410312359
8/8/242157Z AERODROME EXERCISE CAUTION WHEN FLYING IN THE VICINITY OF BIRCH HILL. BLM SMOKEJUMPERS MAY BE CONDUCTING PRACTICE JUMP OPERATION AT 5000' AGL AND BELOW. CONTACT TOWER TO SEE IF OPERATIONS ARE ACTUALLY TAKING PLACE, OR MONITOR THE CTAF FREQ 125.0 MHZ WHEN TOWER IS CLOSED.
8/5/242314Z OBST TOWER 644920N1473648W (.92NM SOUTH PAFB) 584FT MSL (125FT AGL) NOT LGTD FORT WAINWRIGHT SOUTH, RHINELAND AVE, ALERT AND AVOID.
8/5/242308Z OBST LIGHT OTS ON THE WIND DIRECTION INDICATOR (WINDSOCK) EAST OF BASSETT HOSPITAL HELIPAD.
8/5/242304Z OBST TOWER 645039N1473914W (1.6NM NORTHWEST PAFB) 557FT MSL (105FT AGL) LGTD CELL TOWER ON FT WAINWRIGHT NEAR INTERSECTION OF TRAINOR GATE ROAD AND RIVER ROAD.
8/5/242301Z OBST TOWER 644942N1474210W (2.41NM WESTSOUTHWEST PAFB) 549FT MSL (100FT AGL) LGTD CELL TOWER (WEST POST, SW GAFFNEY GATE). HAS A RED OBSTRUCTION LIGHT
8/5/242259Z OBST TOWER 644938N1473924W (1.32NM SOUTHWEST PAFB) 559FT MSL (110FT AGL) LGTD (NEXT TO QUICK LANE ON FT WAINWRIGHT). HAS A RED OBSTRUCTION LIGHT.
8/2/242112Z !PAFB M0620/24 FBK AD CONST AREA BUILDING RENOVATIONS TAKING PLACE IN HGR 1. PERSONNEL, VEHICLES AND MATERIALS IVO HANGAR. USE CAUTION AND AVOID AREA. 2408022112-2410302359
8/1/241628Z RWY 07/25 TOUCH AND GO'S ARE NOT AUTHORIZED EXPECT FOR BLM AIRCRAFT. OVERFLY ONLY.
7/22/241845Z !PAFB M0577/24 FBK OBST CRANE 644942N1473803W (0.8NM SW FBK) 530FT MSL
(83FT AGL) FLAGGED AND LGTD OPERATING OVER BARRACKS BLDG 3718. ASN 2024-AAL-458-OE 2407221845-2410142359
Yes
MON-FRI 1700-0800++
U.S. ARMY
U.S. ARMY FORCES COMMAND
ATLANTA, GA
HQ 172 INFANTRY BRIGADE
FT RICHARDSON
ALASKA 99505
Phone: 907-353-7022
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
PAFB
--
WHEN TWR CLSD ACTVT AFLD LGTS - CTAF
N/A
Yes
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
13
0
0
0
90
0
None
None
None
None
Cargo Handling

Runway 07/25

8575 ft. x 150 ft.
ASPH
CONC
NONE
HIGH

--
38,000lbs
--
--
  Runway 07 Runway 25
True Heading 89°269°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 64° 50' 15"N 64° 50' 16"N
Longitude 147° 38' 31"W 147° 35' 13"W
Elevation 443' 448'
Threshold Crossing Height 67 ft. AGL 67 ft. AGL
Visual Glide Path Angle 3° 3.3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 50' 01"N N/A
Longitude 147° 35' 22"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H4

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H4 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 49' 58"N N/A
Longitude 147° 38' 10"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H5

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H5 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 49' 57"N N/A
Longitude 147° 37' 28"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H6

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H6 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 49' 60"N N/A
Longitude 147° 36' 10"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H7

50 ft. x 50 ft.
ASPH CONC
Good
NONE


--
--
--
--
  Runway H7 Runway
True Heading 35°215°
Traffic Pattern
Markings NONE
Markings Condition
Latitude 64° 50' 01"N N/A
Longitude 147° 35' 45"W N/A
Elevation 449' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NORTH TFC PAT R/W & MQ-1 GRAY EAGLE ONLY; LRG ACFT - RAMP PRKG; SMALL ACFT TIE DOWN NOT AVBL.
A110-10BIRD ACT INVOF ARPT.
A110-11ALERT: NMRS NIGHT DEVICE ACFT OPS INVOF LADD AAF; EXP NMRS DIMLY LIT ACFT IN TANNANA FLATS & YUKON TRNG AREA DURG HR OF DARKNESS & WKDAY SEP-APR.
A110-12(A35) T200; ST175; TT340; TDT714.
A110-18CTN: 100 FT MKD LGT POLE 3/4 NM SE.
A110-2MINS BASED ON FBK WX OBS.
A110-21ASOS 119.275 ASSOCD WITH R-2205 YUKON TRNG RANGE; ASOS 18.525 ASSOCD WITH R-2211 BLAIR LAKE TRNG RANGE. PMSV LMTD TO LINE OF SIGHT; RECEPTION BLW 5000 FT MSL LMTD FM 210-100 WI 100 NM BY TRRN, NO LMT ABV 5000 FT WI 50 NM; RECEPTION 3500-12000 FT LMTD FM 100-210 FM 50-100 NM BY TRRN, NO LMT ABV 12000 FT WI 100 NM. PMSV UNMON WHEN FBK TWR CLSD. SFC VIS RSTRD FM 020-050 DUE TO HNGR 1 & FM 250-350 DUE TO ATCT & BLDGS.
A110-23ALL HOP DAY VMC ONLY.
A110-24TWY A, B, C, D, E, F, G, SECTIONS OF N & S DO NOT HAVE SHOULDERS.
A110-25DE-ICE SVCS NOT AVBL.
A110-3FIRING RANGE S OF FLD FOR ADZY CTC ATCT OR OPS.
A110-31PMSV METRO 142.1 OR 381.375. WX MON-SAT 0900Z-0900Z++ EXC HOL - D317-353-7111/C907-353-7111S; AFT HR 15TH OWS SCOTT AFB, IL - D312-576-9755/9702/C618-256-9755/9702 OR BY NOTAM. METWATCH & MEDEVAC EMERG AFT HR - C907-382-6518.
A110-32SVC: PAPI MAINT LAST WED OF MONTH 0900-1200/1800Z-2100Z++; PAPI NA DURG THIS TIME.
A110-34SVC: US CUSTOMS & INTL TRASH NOT AVBL.
A110-35EDGE LGTS TWY H & PTNS OF TWY N & S GTR THAN 10 FT FM TWY SIDE STRIPES.
A110-36GCA 121.3 118.05 276.4; MON-FRI 1700-0100++ EXC HOL.
A110-37RAPID HOT REFUELING POINTS OPS CLSD SAT, SUN, HOL; OTR TIMES BY NOTAM. AVN UNITS CTC THEIR OPS FOR COLD FUEL.
A110-39CTN: UNLGT TWRS IN ALPHA SOD CNTR INOP.
A110-4MED EVAC PAD FOR F/W AT OPS RAMP; R/W EVAC PAD AT HOSPITAL; 15 MIN NOTICE RQRD.
A110-41DURG WX STATION EVAC - 907-382-6518.
A110-6CTN: LGTD HWY PARL TO & N OF RWY 07/25 CAN BE CONFUSED WITH RWY.
A110-8INSPN BY DEPT OF ARMY.
LADD AAF (ICAO: PAFB, IATA: FBK) is a private airport located in FAIRBANKS/FT WAINWRIGHT, AK.
