No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAEH
CAPE NEWENHAM LRRS
PrivatePVT

1 miles SE of CAPE NEWENHAM, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
58° 38' 53"N 162° 03' 50"W
531' MSL
1531' MSL
12E
None Listed
KENAI (ENA)
KODIAK
ANCHORAGE (ZAN)
10/31/24-11/28/24
PAEH MVFR
2:55 AM AKST
Broken 1,500'
10sm
33°F
31°F
29.32"Hg
060° 9kts
AO2 SLP936 T00051008 10007 21013 57011 $
PAEH 091155Z AUTO 06009KT 010V130 10SM BKN015 01/M01 A2932 RMK AO2 SLP936 T00051008 10007 21013 57011 $
Add Your Business

PAEH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.2

No communication frequencies available for this airport.

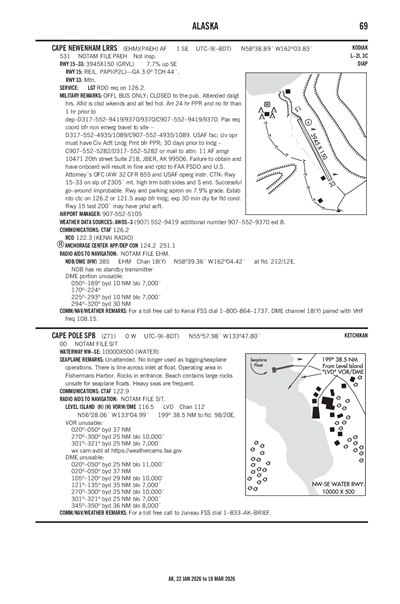

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PAEH
Domestic
11/5/241931Z !PAEH 11/001 EHM RWY 15/33 CLSD 2411051931-2411061700
Military
9/26/242005Z !PAEH V0695/24 EHM AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED RNAV (GPS) RWY 15 LNAV MDA MINIMA: CAT ABC 1320-3 864 (800-3). 2409262005-2504302359
No
DALGT
NORMALLY ATNDD 0800-1700 WKDAYS. AFLD IS CLOSED WEEKENDS AND ALL FED HOL.
U.S. AIR FORCE
11 ACW, ELMENDORF AFB
ANCHORAGE, AK 99506-2270
COMMANDER
11 ACW, 6900 9TH ST. STE 301
ELMENDORF AFB, AK 99506-2270
Phone: 907-552-5105
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
PAEH
--
RDO REQ ON 126.2
N/A
Yes
No
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 15/33

3945 ft. x 150 ft.

GRVL
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 164°344°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 58° 39' 12"N 58° 38' 35"N
Longitude 162° 04' 00"W 162° 03' 39"W
Elevation 226' 531'
Threshold Crossing Height 44 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-10ALL ARR 24 HR PPR BUT NO LATER THAN 1 HR PRIOR TO DEP - D317-552-9419/9370/C907-552-9419/9370.
A110-11PAX MUST COORD NON-EMERG TRAVEL PRIOR - DSN 317-552-4400/9630 OR C907-552-4400/9630.
A110-12CIVIL AIRCRAFT LANDING PERMIT - D317-552-1448/4176/C907-552-1448/4176; MAIL: ATTN: 11 AF AMGR 10471 20TH STREET SUITE 231, JBER AK, 99506.
A110-5RWY & PRKG APRON ON 7.9 PCT GRADE.
A110-6ESTABLISH RADIO CONTACT AS SOON AS POSSIBLE PRIOR TO LANDING. AFTER INITIAL CONTACT ON FREQ 126.2 OR 121.5 EXPECT A 30 MIN DELAY FOR CURRENT AIRSTRIP CONDITIONS.
A110-9USAF INSTALLATION. ALL CIVIL ACFT OPERATORS MUST HAVE A CURRENT CIVIL AIRCRAFT LANDING PERMIT (CALP) BEFORE A PPR CAN BE ISSUED. IAW AIR FORCE INSTRUCTION 10-1001 (HTTP://STATIC.E-PUBLISHING.AF.MIL/PRODUCTION/1/AF_A3_5/PUBLICATION/AFI10-1001/AFI10-1001.PDF) AT LEAST 30 DAYS PRIOR TO FIRST INTENDED LANDING. FAILURE TO OBTAIN AND HAVE ONBOARD APPROVED CALP WILL RESULT IN FINES LEVIED AGAINST VIOLATORS AND REPORTS FORWARDED TO THE FAA FSDO AND U.S. ATTORNEY'S OFFICE IAW 32 CFR 855 AND USAF OPERATING INSTRUCTIONS.
CAPE NEWENHAM LRRS (ICAO: PAEH, IATA: EHM) is a private airport located in CAPE NEWENHAM, AK.
