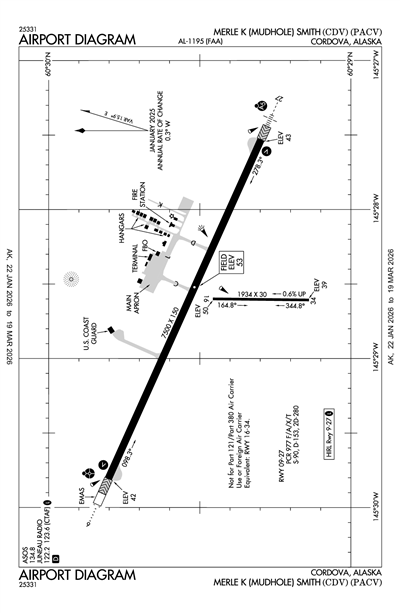

MERLE K (MUDHOLE) SMITH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PACV
ICAO PACVIATA CDVLocal CDV
MERLE K (MUDHOLE) SMITH
PublicPUB

11 miles SE of CORDOVA, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
60° 29' 30"N 145° 28' 39"W
Elevation
53' MSL
Pattern Alt
1053' MSL
Mag Variation
16°E
Declination
19°E
Fuel
None Listed
FSS
JUNEAU (JNU)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PACV VFR
5:53 PM AKST
Clear
10sm
19°F
6°F
29.29"Hg
160° 3kts
AO2 SLP921 T10721144 55002
METAR PACV 040253Z 16003KT 10SM CLR M07/M14 A2929 RMK AO2 SLP921 T10721144 55002
+ Add Your Business

PACV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 134.8
(907) 424-5900

Common

CTAF 123.6
ACTVT MALSR RWY 27; ODALS RWY 09; VASI RWYS 09 & 27; HIRL RWY 09/27 - CTAF.

Center

ANCHORAGE CENTER 119.3
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 133.6/269.4 (MIDDLETON ISLAND RCAG) AND 119.3 (JOHNSTONE POINT RCAG).
ANCHORAGE CENTER 133.6
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 133.6/269.4 (MIDDLETON ISLAND RCAG) AND 119.3 (JOHNSTONE POINT RCAG).

Flight Service

Flight Service 121.5
(JNU)
Flight Service 122.2
(JNU), COMMUNICATIONS PRVDD BY JUNEAU FSS ON FREQS 122.2 & 123.6 (CORDOVA RCO).
Flight Service 123.6
(JNU), COMMUNICATIONS PRVDD BY JUNEAU FSS ON FREQS 122.2 & 123.6 (CORDOVA RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PACV
Tue, 3/3 2:21 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 3:00 PM AKST
VFR
3:00 PM AKST - 12:00 AM AKST
Sky Clear
6sm
VRB° 4kts
VFR
12:00 AM AKST - 3:00 PM AKST
Showers in vicinity
Broken 4,000'
6sm
VRB° 5kts
TAF PACV 032321Z 0400/0424 VRB04KT P6SM SKC
   FM040900 VRB05KT P6SM VCSH BKN040
PACV
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
2100Z
2/26/26
0001Z
!CDV 02/429 CDV NAV ILS RWY 27 DME U/S 2602252100-2602260001
2/25/26
2100Z
2/26/26
0130Z
Runway!CDV 02/426 CDV RWY 09 ALS U/S 2602252100-2602260130
2/25/26
1700Z
2/25/26
2100Z
!CDV 02/427 CDV AD AP RVR ALL U/S 2602251700-2602252100
2/24/26
2031Z
2/25/26
2031Z
!CDV 02/424 CDV APRON ALL FICON WET OBS AT 2602242031. 2602242031-2602252031
2/24/26
2031Z
2/25/26
2031Z
!CDV 02/423 CDV TWY B, L FICON PATCHY ICE AND WET OBS AT 2602242031. 2602242031-2602252031
2/24/26
2031Z
2/25/26
2031Z
!CDV 02/422 CDV TWY ALL EXC TWY B AND L FICON WET OBS AT 2602242031. 2602242031-2602252031
2/24/26
2031Z
2/25/26
2031Z
Runway!CDV 02/421 CDV RWY 09 FICON 5/5/5 100 PCT WET OBS AT 2602242031. 2602242031-2602252031
1/22/26
1718Z
7/31/26
2359Z
Runway!CDV 01/477 CDV RWY 27 ENGINEERED MATERIAL ARST SYSTEM NOT STD 2601221718-2607312359
FDC
10/16/24
2110Z
!FDC 4/0024 CDV SID MERLE K (MUDHOLE) SMITH, CORDOVA, AK.
CASEL SEVEN DEPARTURE...
FROM HUMPY TO WEVIN NA. DISREGARD J133. 2410162110-2610162109EST
No
0600-1630
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: 907-451-2200
MATTHEW MYSZKA
BOX 598
CORDOVA, AK 99574
Phone: 907-424-3202
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
CDV
--
ACTVT MALSR RWY 27; ODALS RWY 09; VASI RWYS 09 & 27; HIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 09/27

7500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

90,000lbs
153,000lbs
280,000lbs
--
  Runway 09 Runway 27
True Heading 114°294°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 60° 29' 48"N 60° 29' 18"N
Longitude 145° 29' 48"W 145° 27' 32"W
Elevation 42' 43'
Threshold Crossing Height 41 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights ODALS MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 16/34

1934 ft. x 30 ft.
GRVL
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 181°1°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition POOR POOR
Latitude 60° 29' 27"N 60° 29' 08"N
Longitude 145° 28' 36"W 145° 28' 36"W
Elevation 50' 39'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ERRATIC WINDS.
A110-10ARPT SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-11WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-14TSA REGULATED ARPT; SEE 49 CFR 1542. GATES & DOORS MUST BE SECURED ALL TIMES; INFO - AMGR.
A110-15ARPT SVCS & COND RPTG AVBL ONLY DURG MAINT DUTY HR; AFT HR - AMGR. BTN 1600 & 0700 SNOW REMOVAL & DEICE NA. RWY COND RPT REFLECTS DAY OPS ONLY.
A110-4MOOSE & BIRDS INVOF ARPT & RWYS.
A110-5ARFF EQUIP DURG ACR ACT ONLY.
A110-6CORDOVA WX - 424-7614 OR 122.65.
A26CLSD TO ACR OPS MORE THAN 30 PAX SEATS EXC 24 HR PPR IN WRITING - AMGR BOX 598 CORDOVA AK 99574.
A30-16/34RWY 16/34 NOT AVBL FOR PART 121/380 SKED AND NON-SKED OPS WITH PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-09/27PCR VALUE: 977/F/A/X/T
A42-16_MARK36 IN ORANGE CONES MAY 1 - OCT 25.
A42-34_MARK36 IN ORANGE CONES MAY 1 - OCT 25.
A43-09RWY 09 VASI UNUSBL BYD 4 NM DUE TO OBSTS.
A81-APTACTVT MALSR RWY 27; ODALS RWY 09; VASI RWYS 09 & 27; HIRL RWY 09/27 - CTAF.
E60-27_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 250 FT IN LENGTH BY 170 FT IN WIDTH LCTD DER 27.
MERLE K (MUDHOLE) SMITH (ICAO: PACV, IATA: CDV) is a public airport located in CORDOVA, AK, US.
