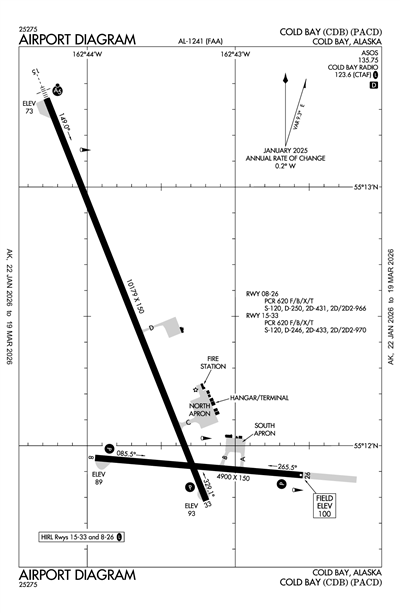

COLD BAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PACD
ICAO PACDIATA CDBLocal CDB
COLD BAY
PublicPUB

0 miles N of COLD BAY, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
55° 12' 21"N 162° 43' 34"W
Elevation
100' MSL
Pattern Alt
1100' MSL
Mag Variation
10°E
Declination
12°E
Fuel
JET A, 100LL
FSS
COLD BAY (CDB)
Sectional
COLD BAY
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PACD MVFR
6:52 PM AKST
Overcast 1,800'
10sm
18°F
9°F
29.77"Hg
350° 10kts
LST REPORT
METAR PACD 040352Z AUTO 35010KT 10SM OVC018 M08/M13 A2977 RMK LST REPORT
+ Add Your Business

PACD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.75
(907) 532-2639

Common

CTAF 123.6
ATCVT MALSR RWY 15; PAPI RWY 08, 26 & 33; HIRL RWY 08/26 & 15/33 - CTAF.

Center

ANCHORAGE CENTER 118.5
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 118.5/278.3 (COLD BAY RCAG).

Flight Service

Flight Service 121.5
(ENA)
Flight Service 122.2
(ENA)
Flight Service 123.6
(ENA)

Terminal Area Forecast

PACD
Tue, 3/3 8:30 PM AKST
Tue, 3/3 9:00 PM AKST - Wed, 3/4 9:00 PM AKST
MVFR
9:00 PM AKST - 9:00 AM AKST
Overcast 1,800'
6sm
010° 10kts
MVFR
9:00 AM AKST - 9:00 PM AKST
Overcast 2,500'
6sm
360° 12kts
TAF PACD 040530Z 0406/0506 01010KT P6SM OVC018
   FM041800 36012KT P6SM OVC025 AMD NOT SKED
PACD
EffectiveExpiresCategoryNOTAM
Domestic
3/9/26
0300Z
5/30/26
1500Z
!CDB 03/005 CDB SVC AUTOMATED WX BCST SYSTEM U/S DLY 0300-1500 2603090300-2605301500
3/8/26
0400Z
3/8/26
1500Z
!CDB 03/006 CDB SVC AUTOMATED WX BCST SYSTEM U/S 2603080400-2603081500
3/4/26
0400Z
3/7/26
1600Z
!CDB 03/004 CDB SVC AUTOMATED WX BCST SYSTEM U/S DLY 0400-1600 2603040400-2603071600
3/3/26
1653Z
3/4/26
1653Z
!CDB 03/003 CDB APRON ALL FICON 1/8IN DRY SN OBS AT 2603031653. 2603031653-2603041653
3/3/26
1653Z
3/4/26
1653Z
!CDB 03/002 CDB TWY ALL FICON 1/8IN DRY SN OBS AT 2603031653. 2603031653-2603041653
2/27/26
0802Z
!CDB 02/350 CDB NAV TACAN AZM U/S 2602270802-2604301500EST
2/26/26
1854Z
3/31/26
2359Z
!CDB 02/348 CDB AD AP RWY 26 WINDCONE LGT U/S 2602261854-2603312359EST
2/26/26
1849Z
3/31/26
2359Z
!CDB 02/347 CDB AD AP RWY 15 WINDCONE LGT U/S 2602261849-2603312359EST
2/26/26
1709Z
3/16/26
0245Z
!CDB 02/346 CDB SVC COLD BAY FSS CLSD LOCAL AP ADVISORY SER NOT AVBL DLY 1700-0245 2602261709-2603160245
2/26/26
0510Z
!CDB 02/345 CDB NAV TACAN U/S 2602260510-2612251500EST
2/25/26
2118Z
3/10/26
2118Z
!CDB 02/342 CDB AD AP JET A FUEL NOT AVBL EXC 90MIN PPR 907-532-7055
2602252118-2603102118
2/25/26
1958Z
!CDB 02/340 CDB NAV ILS RWY 15 LOC/GP U/S 2602251958-2603281500EST
2/25/26
1956Z
3/7/26
1500Z
!CDB 02/339 CDB NAV ELF NDB U/S 2602251956-2603071500EST
2/25/26
1944Z
Runway!CDB 02/338 CDB RWY 26 PAPI U/S 2602251944-2604251500EST
2/25/26
1944Z
Runway!CDB 02/337 CDB RWY 08 PAPI U/S 2602251944-2604251500EST
2/25/26
1944Z
Runway!CDB 02/336 CDB RWY 33 PAPI U/S 2602251944-2604251500EST
2/25/26
1941Z
4/25/26
1500Z
Runway!CDB 02/335 CDB RWY 15 ALS U/S 2602251941-2604251500
2/25/26
1827Z
Runway!CDB 02/334 CDB RWY 15 RVR U/S 2602251827-2603281500EST
2/25/26
1728Z
!CDB 02/333 CDB COM REMOTE COM OUTLET 123.6, 122.2, 121.5 U/S 2602251728-2603291200EST
2/21/26
2203Z
3/31/26
2359Z
!CDB 02/309 CDB AD AP NORTH RAMP WINDCONE LGT U/S 2602212203-2603312359EST
2/20/26
2349Z
!CDB 02/299 CDB NAV VOR U/S 2602202349-2604251500EST
1/30/26
2246Z
Runway!CDB 01/330 CDB RWY 15 RAI LGT U/S 2601302246-2612251500EST
FDC
2/25/26
2049Z
3/25/26
2049Z
!FDC 6/0393 CDB SID COLD BAY, COLD BAY, AK.
CHUNA TWO DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ELF NDB OUT OF SERVICE. 2602252049-2603252049EST
2/25/26
2049Z
3/25/26
2049Z
!FDC 6/0392 CDB ODP COLD BAY, COLD BAY, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 9...
TEXTUAL DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ELF NDB OUT OF SERVICE. 2602252049-2603252049EST
2/23/26
1503Z
7/7/26
1503Z
!FDC 6/8436 CDB SID COLD BAY, COLD BAY, AK.
WETSI TWO DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CDB VOR OUT OF SERVICE. 2602231503-2607071503EST
2/23/26
1503Z
7/7/26
1503Z
!FDC 6/8435 CDB IAP COLD BAY, COLD BAY, AK.
ILS OR LOC RWY 15, AMDT 19...
ADF AND DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
MISSED APPROACH: CLIMB TO 1200 THEN CLIMBING LEFT TURN TO 2200 DIRECT ELF NDB AND HOLD (ADF REQUIRED), CONTINUE CLIMB-IN-HOLD TO 2200,
CDB VOR OUT OF SERVICE. 2602231503-2607071503EST
2/23/26
1503Z
7/7/26
1503Z
!FDC 6/8434 CDB IAP COLD BAY, COLD BAY, AK.
LOC BC RWY 33, AMDT 11...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CDB VOR OUT OF SERVICE. 2602231503-2607071503EST
2/23/26
1503Z
7/7/26
1503Z
!FDC 6/8433 CDB ODP COLD BAY, COLD BAY, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 9...
DEPARTURE PROCEDURE RWY 8, 15, 26, 33: ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CDB VOR OUT OF SERVICE. 2602231503-2607071503EST
2/23/26
1502Z
!FDC 6/8431 CDB IAP U.S. DOD COLD BAY, COLD BAY, AK.
HI - VOR OR TACAN RWY 15, AMDT 5...
TACAN PORTION NA, CDB TACAN AZIMUTH OUT OF SERVICE.
2602231502-2610051502EST
No
MON - SAT 0700 - 1800
ALASKA DOT&PF SOUTHCOAST REGION
P.O BOX 112506
JUNEAU, AK 99811
Phone: 907-465-1763
HAROLD KREMER
BOX 97
COLD BAY, AK 99571
Phone: 907-532-5000
COLD BAY FSS (CDB)
Toll Free: 1-800-478-7250
CDB
--
ATCVT MALSR RWY 15; PAPI RWY 08, 26 & 33; HIRL RWY 08/26 & 15/33 - CTAF.
PHOTOCELL OPS.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 08/26

4900 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
431,000lbs
966,000lbs
  Runway 08 Runway 26
True Heading 95°275°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 55° 11' 57"N 55° 11' 53"N
Longitude 162° 43' 57"W 162° 42' 33"W
Elevation 89' 100'
Threshold Crossing Height 38 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

10179 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
246,000lbs
433,000lbs
970,000lbs
  Runway 15 Runway 33
True Heading 158°338°
Traffic Pattern Left Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 55° 13' 20"N 55° 11' 47"N
Longitude 162° 44' 16"W 162° 43' 12"W
Elevation 72' 93'
Threshold Crossing Height -- 36 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1SNOW, ICE REMOVAL & ARPT HAZ RPRTG DURG DUTY HR UNLESS PRIOR ARNGMT IN WRITING - AMGR.
A110-10PAEW ON RWYS.
A110-14ARPT SAND LRGR GRADE THAN FAA RCMDD/SEE AC150/5200-30.
A110-15WX CAMERA AVBL - HTTPS://WEATHERCAMS.FAA.GOV
A110-18DEICING & FUEL M-F 0800-1700 - 907-532-2467; AFT HR PPR & FEE - 907-532-7055.
A110-2BIRDS INVOF ARPT.
A110-3LOCKED WHEEL NA.
A110-7CUST UNAVBL. FOREIGN RFLG ARR 24-48 HR WRITTEN PPR - FAX 907-271-2684 OR 907-271-2686.
A110-9UNLGTD TWR 0.4 NM N, 0.9 NM S & 4.8 NM NW.
A26CLSD TO ACR OPS MORE THAN 30 PAX SEATS EXC WRITTEN PPR - AMGR BOX 97 COLD BAY AK 99571. ARFF AVBL FOR PART 121 ETOPS ACR WITH 30 MIN NOTICE.
A39-08/26PCR VALUE: 620/F/B/X/T
A39-15/33PCR VALUE: 620/F/B/X/T
A43-08UNUSBL BYD 5 DEGS RIGHT OF CNTRLN.
A81-APTATCVT MALSR RWY 15; PAPI RWY 08, 26 & 33; HIRL RWY 08/26 & 15/33 - CTAF.
A81-BCNPHOTOCELL OPS.
COLD BAY (ICAO: PACD, IATA: CDB) is a public airport located in COLD BAY, AK, US.
