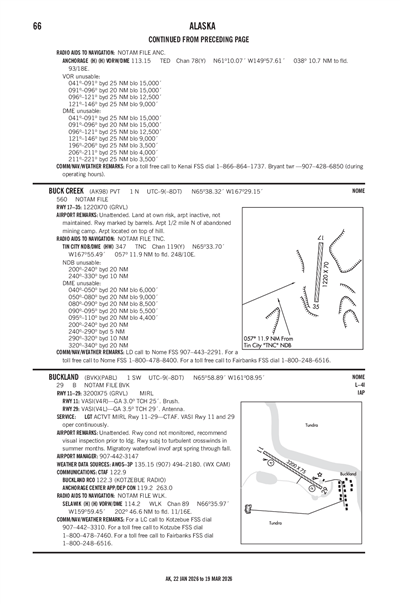

BUCKLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PABL
ICAO PABLIATA BKCLocal BVK
BUCKLAND
PublicPUB

1 miles SW of BUCKLAND, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
65° 58' 54"N 161° 08' 57"W
Elevation
29' MSL
Pattern Alt
1029' MSL
Mag Variation
10°E
Declination
11°E
Fuel
None Listed
FSS
KOTZEBUE (OTZ)
Sectional
NOME
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PABL IFR
4:56 PM AKST
Haze
Clear
2.5sm
-17°F
-23°F
29.92"Hg
350° 10kts
AO2 SNB16E53 SLP136 P0000 T12721306 FZRANO
METAR PABL 050156Z AUTO 35010KT 2 1/2SM HZ CLR M27/M31 A2992 RMK AO2 SNB16E53 SLP136 P0000 T12721306 FZRANO
+ Add Your Business

PABL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 135.15
(907) 494-2180

Common

CTAF 122.9
ACTVT MIRL RWY 11/29 - CTAF. VASI RWY 11 & 29 OPER CONTINUOUSLY.

Center

ANCHORAGE CENTER 119.2
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 119.2/263.0 (KOTZEBUE RCAG).

Flight Service

Flight Service 122.3
(OTZ), COMMUNICATIONS PRVDD BY KOTZEBUE FSS ON FREQ 122.3 (BUCKLAND RCO).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

PAOT (65nm)
Wed, 3/4 2:22 PM AKST
Wed, 3/4 3:00 PM AKST - Thu, 3/5 3:00 PM AKST
VFR
3:00 PM AKST - 5:00 PM AKST
Sky Clear
6sm
VRB° 3kts
VFR
5:00 PM AKST - 12:00 AM AKST
Sky Clear
6sm
330° 5kts
VFR
12:00 AM AKST - 3:00 PM AKST
Sky Clear
6sm
040° 5kts
TAF PAOT 042322Z 0500/0524 VRB03KT P6SM SKC
   FM050200 33005KT P6SM SKC
   FM050900 04005KT P6SM SKC
PABL
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
1704Z
3/4/26
1704Z
!BVK 03/015 BVK APRON ALL FICON COMPACTED SN 12IN BERMS OBS AT 2603031704. 2603031704-2603041704
3/3/26
1704Z
3/4/26
1704Z
!BVK 03/014 BVK TWY ALL FICON COMPACTED SN 12IN BERMS OBS AT 2603031704. 2603031704-2603041704
3/3/26
1702Z
3/4/26
1702Z
Runway!BVK 03/013 BVK RWY 29 FICON 100 PCT COMPACTED SN 12IN BERMS OBS AT 2603031702. 2603031702-2603041702
3/3/26
1702Z
3/4/26
1702Z
Runway!BVK 03/012 BVK RWY 11 FICON 100 PCT COMPACTED SN 12IN BERMS OBS AT 2603031702. 2603031702-2603041702
8/26/25
2053Z
Runway!BVK 08/041 BVK RWY 29 VASI U/S 2508262053-2609061500EST
FDC
2/12/26
2245Z
!FDC 6/3605 BVK IAP BUCKLAND, BUCKLAND, AK.
RNAV (GPS) RWY 11, AMDT 2A...
DISREGARD PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 25).
2602122245-2802122242EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99701
Phone: 907-451-2200
ALVIN WERNEKE
PO BOX 55
KOTZEBUE, AK 99752
Phone: 907-442-3147
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
BVK
--
ACTVT MIRL RWY 11/29 - CTAF. VASI RWY 11 & 29 OPER CONTINUOUSLY.
N/A
Yes - Lighted
Yes
No
None
No
None
None
None
None
None

Runway 11/29

3200 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 11 Runway 29
True Heading 122°302°
Traffic Pattern
Markings
Markings Condition
Latitude 65° 59' 02"N 65° 58' 45"N
Longitude 161° 09' 30"W 161° 08' 24"W
Elevation 27' 29'
Threshold Crossing Height 25 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator V4R V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY SUBJECT TO TURBULENT CROSSWINDS IN SUMMER MONTHS.
A110-2RY COND NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-4MIGRATORY WATERFOWL INVOF ARPT SPRING THROUGH FALL.
A110-5WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A5NORTHWEST ARCTIC BOROUGH
A81-APTACTVT MIRL RWY 11/29 - CTAF. VASI RWY 11 & 29 OPER CONTINUOUSLY.
BUCKLAND (ICAO: PABL, IATA: BVK) is a public airport located in BUCKLAND, AK, US.
