PABI
ALLEN AAF
PrivatePVT

3 miles S of DELTA JUNCTION FT GREELY, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
63° 59' 43"N 145° 43' 12"W
1285' MSL
2285' MSL
23E
JP-8
FAIRBANKS (FAI)
ANCHORAGE
ANCHORAGE (ZAN)
7/11/24-8/8/24
PABI MVFR
2:53 AM AKDT
Light Rain
Overcast 2,600'
Few 1,900'
9sm
41°F
39°F
29.79"Hg
230° 6kts
AO2 SLP102 P0003 T00500039 TSNO
PABI 191053Z AUTO 23006KT 9SM -RA FEW019 OVC026 05/04 A2979 RMK AO2 SLP102 P0003 T00500039 TSNO
Add Your Business

PABI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

ATIS

ATIS
 132.075

ASOS

ASOS
907-869-3480
 135.65

Emergency

EMERG
FM LCL EMERG
 40.8

Ground

GND/P
 118.225

Tower

LCL/P
 119.8

Other

OPS
 122.9

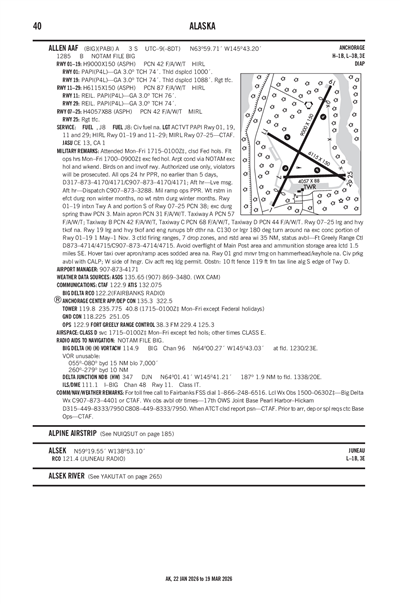

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PABI
Wed, 9/18 5:08 PM AKDT
Wed, 9/18 5:00 PM AKDT - Thu, 9/19 8:00 PM AKDT
MVFR
5:00 PM AKDT - 12:00 AM AKDT
Light Rain and Mist
Overcast 6,500'
Broken 3,000'
Few 2,000'
4.97sm
29.53"Hg
VRB° 6kts
Moderate, In Cloud (Rime): 5,000-12,000'
MVFR
Temporary 6:00 PM AKDT - 12:00 AM AKDT
Light Rain
Overcast 1,500'
3.11sm
Calm
MVFR
Becoming 12:00 AM AKDT - 4:00 PM AKDT
Drizzle
Overcast 3,000'
Broken 1,000'
5.59sm
29.70"Hg
270° 12kts
Gusts 18kts
Moderate, In Cloud (Rime): 4,000-12,000'
MVFR
Becoming 4:00 PM AKDT - 8:00 PM AKDT
Mist
Overcast 3,000'
Broken 1,000'
3.73sm
29.88"Hg
290° 12kts
Moderate, In Cloud (Rime): 4,000-12,000'
TAF AMD PABI 190108Z 1901/2004 VRB06KT 8000 -RA BR FEW020 BKN030 OVC065 650507 QNH2952INS
   TEMPO 1902/1908 5000 -RA OVC015
   BECMG 1908/1909 27012G18KT 9000 DZ BKN010 OVC030 650408 QNH2970INS
   BECMG 2000/2001 29012KT 6000 BR BKN010 OVC030 650408 QNH2989INS TX07/1922Z TN04/1915Z LAST NO AMDS AFT 1906 NEXT 1914
PABI
Military
9/12/240032Z !PABI M0289/24 BIG RWY 29 RWY END ID LGT U/S REIL LIGHT AT APPROACH OF RWY 29 SOUTH SIDE OTS. 2409120032-2409302359
9/11/242318Z RUNWAY 11/29 MANDATORY SIGNS ARE SHOWING INCORRECT 10/28 WRITING. INTERPRET 10 AS 11 AND 28 AS 29. SIGNS WILL BE UPDATED ASAP.
9/10/241857Z OBST 100FT AGL TALL FLAGGED UNLIT CRANE LOCATED 1.5NM SOUTH OF CENTER OF ALLEN ARMY AIRFIELD 4896FT FROM THE APPROACH OF RUNWAY 1 ON MAIN POST
9/5/240001Z !PABI V0357/24 BIG AERODROME INSTRUMENT APPROACH PROCEDURE NOT AUTHORIZED RNAV (GPS) RWY 19 2409050001-2503200001
9/5/240001Z !PABI V0356/24 BIG AERODROME INSTRUMENT APPROACH PROCEDURE NOT AUTHORIZED RNAV (GPS) RWY 10 2409050001-2503200001
9/3/242246Z AERODROME BIG DME OTS
9/3/242245Z AERODROME BIG RUNWAY 10 ILS SYSTEM OTS
8/27/241729Z !PABI M0268/24 BIG AD BIRD ACTIVITY EXPECT MIGRATORY BIRDS IN THE VICINITY OF AND OVERFLYING THE AIRFIELD FROM APRIL 1ST UNTIL OCTOBER 15TH. 2408271729-2411151700
8/27/241728Z CAUTION: MAGNETIC VARIATION OF RECORD IS 23 DEGREE EAST, ACTUAL MAGVAR IS 17 DEGREES EAST. EXCESSIVE DIFFERENCES IS THE MAGNETIC VARIATION (MV) USED BY AIRCRAFT GUIDANCE SYSTEMS, GROUND NAVAIDS, AND PROCEDURES CAN RESULT IN UNACCEPTABLE AIRCRAFT LATERAL GUIDANCE PERFORMANCE AND/OR AN UNSAFE CONDITION. PLEASE REPORT IFR PROCEDURAL DEVIATIONS IN RUNWAY ALIGNMENT TO ATC.
8/27/241728Z SEVERAL OBSTACLES ARE LOCATED WITHIN 1000 FEET OF THE APPROACHES OF THE FOLLOWING RUNWAY; RUNWAY 10 HAS A FENCE, SERVICE ROAD, HIGHWAY AND MARKED POWER LINES. RUNWAY 19 AND 28 HAS A CREEK, FENCE AND SERVICE ROAD. RUNWAY 1 HAS A FENCE AND A SERVICE ROAD. ASSAULT STRIP 7 HAS A FENCE WITH OBSTRUCTION LIGHTS AND A SERVICE ROAD AND A CREEK.
8/27/241728Z RWY 07/25 IS AN LZ, HEADINGS ARE 074 DEGREES (MAGNETIC) FOR LZ 7 AND 254 DEGREES (MAGNETIC) FOR LZ 25.
8/27/241727Z AIRFIELD BACKUP GENERATOR OUT OF SERVICE.
8/14/241639Z RWY 01/19 IAP ALLEN AAF, DELTA JUNCTION/FORT GREELY, AK. VOR/DME OR TACAN RWY 19 , AMDT 2B... PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, BIG DELTA TACAN OUT OF SERVICE.
8/8/241600Z !PABI V0349/24 BIG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RWY 10 IAPS ARE TO NEWLY PAINTED RWY 11/29 IN PREPERATION FOR MAGVAR UPDATE. 2408081600-2411280001
Yes
MON-FRI 1715-0100Z++
CLSD FED HOLS.
U.S. ARMY
U.S. ARMY FORCES COMMAND
ATLANTA, GA
HQ 172 INFANTRY BRIGADE
FT RICHARDSON
ALASKA 99505
Phone: 907-873-7400
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
BIG
--
ACTVT PAPI RWY 01, 19, 10 & 28; HIRL RWY 01/19 & 10/28; MIRL RWY 07/25 - CTAF.
N/A
Yes
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
3
0
0
None
None
None
None
None

Runway 01/19

9000 ft. x 150 ft.
ASPH
Good
NONE
HIGH
42 /F/A/W/T
--
--
--
--
  Runway 01 Runway 19
True Heading 30°210°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 63° 59' 11"N 64° 00' 28"N
Longitude 145° 44' 07"W 145° 42' 27"W
Elevation 1,285' 1,220'
Threshold Crossing Height 74 ft. AGL 74 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 07/25

4057 ft. x 88 ft.
ASPH
Good
NONE
MED
42 /F/A/W/T
--
--
--
--
  Runway 07 Runway 25
True Heading 92°272°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 63° 59' 29"N 63° 59' 28"N
Longitude 145° 43' 49"W 145° 42' 18"W
Elevation 1,268' 1,257'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

6115 ft. x 150 ft.
ASPH
Good
NONE
HIGH
87 /F/A/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 125°305°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 63° 59' 59"N 63° 59' 25"N
Longitude 145° 44' 08"W 145° 42' 15"W
Elevation 1,254' 1,256'
Threshold Crossing Height 76 ft. AGL 74 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1MIL RAMP OPS PPR.
A110-10WT RSTRN IN EFCT DURG NON WINTER MONTHS; NO WT RSTRN DURG WINTER MONTHS.
A110-19BIRDS ON & INVOF RWY.
A110-2AVOID OVERFLIGHT OF MAIN POST AREA & AMMUNITION STORAGE AREA 1.5 MI SE.
A110-21ARPT COND VIA NOTAM EXC HOL & WKEND.
A110-23AFT HR - DISPATCH C907-873-3288.
A110-25JASU; 2 (CE-13) 1 AIR STARTS (CA-1).
A110-26ISABEL PASS AND BLACK RAPIDS WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-27WX OBS AVBL OTR TIMES - 17TH OWS JOINT BASE PEARL HARBOR-HICKAM D315-449-8333/7950/C808-449-8333/7950.
A110-28FLIGHT OPS MON-FRI 1700-0900Z++ EXC FED HOL.
A110-29C130 OR LRGR 180 DEG TURN AROUND NA EXC CONC PORTION OF RWY 01/19 1 MAY-1 NOV.
A110-3ALL OPS 24 HR PPR; NO EARLIER THAN 5 DAYS; D317-873-4170/4171/C907-873-4170/4171; AFT HR - LVE MSG.
A110-31MAIN APRON PCN 31 F/A/W/T. TWY A PCN 57 F/A/W/T; TWY B PCN 42 F/A/W/T; TWY C PCN 68 F/A/W/T; TWY D PCN 44 F/A/W/T.
A110-33HOVER TAXI OVR APRON/RAMP ACES SODDED AREA NA.
A110-38OBSTN: 10 FT FENCE 119 FT FM TAX LINE ALG S EDGE OF TWY D.
A110-39CIV PRKG AVBL WITH CALP; W SIDE OF HNGR.
A110-4LCL WX OBS 0600-2130 - BIG DELTA WX C907-873-4401 OR CTAF.
A110-63 CTLD FIRING RANGES, 7 DROP ZONES & RSTRD AREA WI 35 NM; STATUS AVBL - FT GREELY RANGE CTL D873-4714/4715/C907-873-4714/4715.
A110-9GWT RWY 07/25 - ST127. GWT RWY 01/19 - ST127.
ALLEN AAF (ICAO: PABI, IATA: BIG) is a private airport located in DELTA JUNCTION FT GREELY, AK.
