iFlightPlanner



...

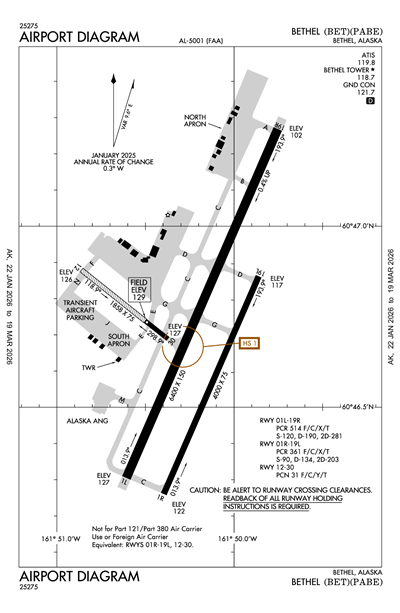

BETHEL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PABE
ICAO PABEIATA BETLocal BET
BETHEL
PublicPUB

3 miles SW of BETHEL, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
60° 46' 43"N 161° 50' 14"W
Elevation
129' MSL
Pattern Alt
1129' MSL
Mag Variation
10°E
Declination
11°E
Fuel
JET A, JET A-1, 100LL, 100
FSS
KENAI (ENA)
Sectional
MC GRATH
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PABE VFR
8:53 PM AKST
Clear
10sm
-7°F
-14°F
29.78"Hg
360° 11kts
AO2 SLP090 T12171256 11183 21222 58007 $
METAR PABE 040553Z 36011KT 10SM CLR M22/M26 A2978 RMK AO2 SLP090 T12171256 11183 21222 58007 $
+ Add Your Business

PABE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.8
ASOS 135.45
(907) 560-7632

Common

CTAF 118.7
WHEN ATCT CLSD ACTVT HIRL RWY 01L/19R, 01R/19L, RWY 12/30; TWY LIGHTS - CTAF. ACTVT MALSR RWY 01L & 19R; REIL RWY 01R & 19L; VASI RWY 01L & 19R; PAPI RWY 01R & 19L - CTAF.

Ground

BETHEL GROUND 121.7
0700-2200 1 APR - 31 OCT; 0700-2000 1 NOV - 31 MAR.

Tower

BETHEL TOWER 118.7
0700-2200 1 APR - 31 OCT; 0700-2000 1 NOV - 31 MAR.

Center

ANCHORAGE CENTER 125.2
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 125.2/372.0 (BETHEL RCAG).

Flight Service

Flight Service 118.7
(ENA)
Flight Service 121.5
(ENA)
Flight Service 122.2
(ENA)

Emergency

Emergency 121.5

Terminal Area Forecast

PABE
Tue, 3/3 8:30 PM AKST
Tue, 3/3 9:00 PM AKST - Wed, 3/4 9:00 PM AKST
VFR
9:00 PM AKST - 1:00 AM AKST
Sky Clear
6sm
360° 12kts
VFR
1:00 AM AKST - 9:00 PM AKST
Sky Clear
6sm
360° 10kts
TAF PABE 040530Z 0406/0506 36012KT P6SM SKC
   FM041000 36010KT P6SM SKC
PABE
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
1506Z
3/4/26
1506Z
Runway!BET 03/020 BET RWY 01R FICON 1/1/1 30 PCT ICE SCARIFIED AND SANDED OBS AT 2603031506. 2603031506-2603041506
3/3/26
1505Z
3/4/26
1505Z
!BET 03/019 BET APRON ALL FICON ICE SCARIFIED OBS AT 2603031505. 2603031505-2603041505
3/3/26
1505Z
3/4/26
1505Z
!BET 03/018 BET TWY B, D, E, F, G, N FICON ICE SCARIFIED AND SANDED OBS AT 2603031505. 2603031505-2603041505
2/27/26
0750Z
Runway!BET 02/362 BET RWY 19L RWY END ID LGT U/S 2602270750-2604301500EST
2/27/26
0748Z
Runway!BET 02/361 BET RWY 01R PAPI U/S 2602270748-2604301500EST
2/26/26
0538Z
3/13/26
0538Z
!BET 02/352 BET OBST TOWER LGT (ASR 1244797) 604652.70N1615304.60W (1.4NM W BET) 383.2FT (224.1FT AGL) U/S 2602260538-2603130538
2/18/26
1622Z
!BET 02/265 BET SVC PCL RWY 01L VASI U/S EXC LOW INTST ON CONS 2602181622-2604261500EST
1/28/26
0003Z
6/30/26
2359Z
!BET 01/326 BET APRON S RAMP NW CORNER 300FT X 300FT CLSD 2601280003-2606302359
1/22/26
1400Z
3/16/26
0600Z
!BET 01/250 BET AD AP ARFF MNT CTAF 118.7 DLY 1400-0600 2601221400-2603160600
12/25/25
0637Z
Runway!BET 12/315 BET RWY 01L RAI LGT U/S 2512250637-2610311500EST
11/19/25
0652Z
Runway!BET 11/275 BET RWY 19R VASI U/S 2511190652-2608021500EST
10/31/25
0025Z
5/31/26
0100Z
!BET 10/212 BET APRON WEST RAMP TWY LGTS U/S 2510310025-2605310100
Yes
MAY-OCT MON-FRI 0700-2100
MAY-OCT SAT-SUN 0700-2200
NOV-APR MON-FRI 0500-2100
NOV-APR SAT-SUN 0700-2100
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0749
NICK NORWOOD
BOX 505
BETHEL, AK 99559
Phone: 907-543-2498
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
BET
--
WHEN ATCT CLSD ACTVT HIRL RWY 01L/19R, 01R/19L, RWY 12/30; TWY LIGHTS - CTAF. ACTVT MALSR RWY 01L & 19R; REIL RWY 01R & 19L; VASI RWY 01L & 19R; PAPI RWY 01R & 19L - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Minor
Minor
None
None
Cargo Handling

Runway 01L/19R

6400 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
190,000lbs
281,000lbs
--
  Runway 01L Runway 19R
True Heading 23°203°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 60° 46' 18"N 60° 47' 16"N
Longitude 161° 50' 37"W 161° 49' 45"W
Elevation 127' 102'
Threshold Crossing Height 39 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 01R/19L

4000 ft. x 75 ft.
ASPH
Fair
NONE
HIGH

90,000lbs
134,000lbs
203,000lbs
--
  Runway 01R Runway 19L
True Heading 23°203°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 60° 46' 16"N 60° 46' 52"N
Longitude 161° 50' 24"W 161° 49' 52"W
Elevation 122' 117'
Threshold Crossing Height 31 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12/30

1858 ft. x 75 ft.
GRVL
Good
NONE
HIGH
31/F/C/Y/T
--
--
--
--
  Runway 12 Runway 30
True Heading 128°308°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 60° 46' 53"N 60° 46' 41"N
Longitude 161° 50' 52"W 161° 50' 22"W
Elevation 126' 127'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-10WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
A110-12TSNT PRKG W END OF S RAMP MRKD BY GREEN CONES.
A110-14COND RPRTG & OTR MAINT SVC AVBL DURG MAINT DUTY HR. AFT HR SVC PPR IN WRITING - AMGR.
A110-15NWS BLN LAUNCH FAC ON ARPT - SEE INSIDE BACK CVR FOR OPS DTLS.
A110-17LOCK WHEEL TURNS NA ALL SFCS.
A110-18TSA REG; SEE 49 CFR 1542. GATES & DOORS SECURED ALL TIMES. UNFAM TSNT - AMGR.
A110-19ARPT SAND SMALLER GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-8PAEW MAY BE ON RWYS.
A110-9PTARMIGAN & WATERFOWL INVOF ARPT.
A26CLSD TO ACR OPS MORE THAN 30 PAX SEATS OR APVD WRITTEN PPR - AMGR BOX 505, BETHEL, AK 99559.
A30-01R/19LRWY 01R/19L NOT AVBL FOR PART 121/380 SKED AND NON-SKED OPS WITH PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-12/30RWY 12/30 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. W 1200 FT CLSD OVR 12500 LBS GWT APR-NOV.
A33-12/30_SURF495 FT ASPH RWY 30 END; RMNG GRVL.
A39-01L/19RPCR VALUE: 514/F/C/X/T
A39-01R/19LPCR VALUE: 361/F/C/X/T
A47-01LTOUCHDOWN RVR AVBL 0700-2000 1 NOV-30 MAR; 1 APR-31 OCT 0700-2200.
A47-19RTOUCHDOWN RVR AVBL 0700-2000 1 NOV-30 MAR; 1 APR-31 OCT 0700-2200.
A70-100SELF VC FUEL NA; FEE AFT 1800.
A81-APTWHEN ATCT CLSD ACTVT HIRL RWY 01L/19R, 01R/19L, RWY 12/30; TWY LIGHTS - CTAF. ACTVT MALSR RWY 01L & 19R; REIL RWY 01R & 19L; VASI RWY 01L & 19R; PAPI RWY 01R & 19L - CTAF.
BETHEL (ICAO: PABE, IATA: BET) is a public airport located in BETHEL, AK, US.
