iFlightPlanner



...

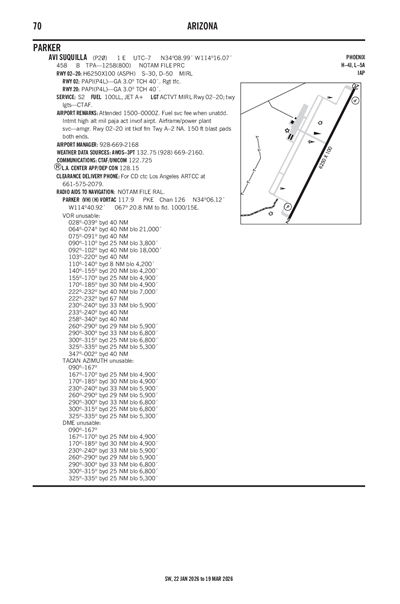

AVI SUQUILLA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

P20
Local P20
AVI SUQUILLA
PublicPUB

1 miles E of PARKER, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 08' 59"N 114° 16' 04"W
Elevation
458' MSL
Pattern Alt
1258' MSL
Mag Variation
11°E
Declination
10°E
Fuel
JET A (FSII), 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KHII (25nm) VFR
6:35 AM MST
Clear
10sm
57°F
25°F
29.95"Hg
060° 5kts
AO2
METAR KHII 041335Z AUTO 06005KT 10SM CLR 14/M04 A2995 RMK AO2
+ Add Your Business

P20 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 132.75
(928) 669-2160

Common

CTAF 122.725
ACTVT MIRL RWY 02/20; TWY LGTS - CTAF.
UNICOM 122.725

Center

L.A. CENTER CENTER 128.15
LOW, APCH/DEP CTL SVC PRVDD BY LOS ANGELES ARTCC (ZLA) ON FREQS 128.15/285.6 (LAGUNA RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBLH (39nm)
Wed, 3/4 3:20 AM PST
Wed, 3/4 4:00 AM PST - Thu, 3/5 4:00 AM PST
VFR
4:00 AM PST - 6:00 AM PST
Scattered 25,000'
6sm
300° 6kts
VFR
6:00 AM PST - 2:00 PM PST
Broken 25,000'
Scattered 20,000'
6sm
VRB° 4kts
VFR
2:00 PM PST - 4:00 AM PST
Sky Clear
6sm
220° 6kts
TAF KBLH 041120Z 0412/0512 30006KT P6SM SCT250
   FM041400 VRB04KT P6SM SCT200 BKN250
   FM042200 22006KT P6SM SKC
P20
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
1654Z
8/31/26
2359Z
!PRC 02/233 P20 OBST TOWER LGT (ASR 1003258) 333536.40N1133724.70W (46.13NM SE P20) 1665FT (260FT AGL) U/S 2602201654-2608312359
2/19/26
1356Z
4/30/26
1730Z
!PRC 02/202 P20 OBST TOWER (ASN 2021-AWP-11614-OE) 333644N1134147W (44.3NM SE P20 ) 1384FT (151FT AGL) NOT LGTD 2602191356-2604301730
1/10/26
1121Z
4/10/26
0500Z
!PRC 01/104 P20 OBST TOWER LGT (ASR 1221297) 340011.00N1141343.00W (9.1NM SSE P20) 901.9FT (259.8FT AGL) U/S 2601101121-2604100500
12/9/25
1852Z
Runway!PRC 12/123 P20 RWY 02 PAPI U/S 2512091852-2605042111EST
FDC
3/3/26
1956Z
4/3/26
1956Z
!FDC 6/2919 P20 ODP AVI SUQUILLA, Parker, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PKE VOR OUT OF SERVICE. 2603031956-2604031956EST
No
0800-1700
FUEL SVC FEE WHEN UNATDD.
COLORADO RIVER INDIAN TRIBES
26600 MOHAVE ROAD
PARKER, AZ 85344
Phone: 928-669-2168
JOSH PHILLIPS
28940 AIRPORT ROAD
PARKER, AZ 85344
Phone: 928-669-2168
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT MIRL RWY 02/20; TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 02/20

6250 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
50,000lbs
--
--
  Runway 02 Runway 20
True Heading 26°206°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 08' 32"N 34° 09' 27"N
Longitude 114° 16' 21"W 114° 15' 48"W
Elevation 454' 457'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-6INTMT HIGH ALT MIL PAJA ACT INVOF OF AIRPT.
A110-7FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A17-H1FUEL SVC FEE WHEN UNATDD.
A30-02/20INT TKOF FM TWY A-2 NA. 150 FT BLAST PADS BOTH ENDS.
A71AIRFRAME/POWER PLANT SVC - AMGR
A81-APTACTVT MIRL RWY 02/20; TWY LGTS - CTAF.
AVI SUQUILLA (IATA: P20) is a public airport located in PARKER, AZ, US.
