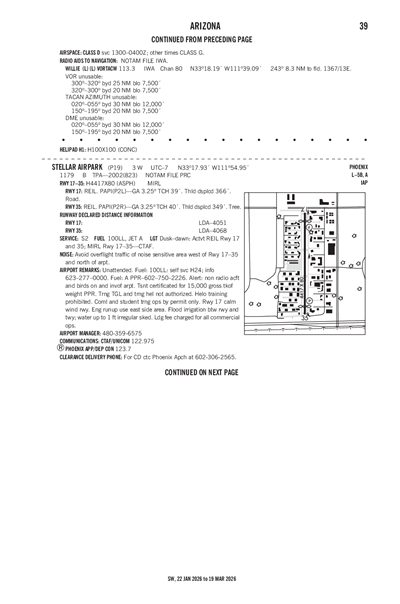

STELLAR AIRPARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

P19
Local P19
STELLAR AIRPARK
PublicPUB

3 miles W of CHANDLER, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 17' 56"N 111° 54' 57"W
Elevation
1179' MSL
Pattern Alt
2002' MSL
Mag Variation
10°E
Declination
9°E
Fuel
JET A, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KCHD (6nm) VFR
8:55 PM MST
Clear
10sm
71°F
32°F
29.92"Hg
Calm
AO2 T02160002 $
METAR KCHD 040355Z AUTO 00000KT 10SM CLR 22/00 A2992 RMK AO2 T02160002 $
+ Add Your Business

P19 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.975
DUSK-DAWN: ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF.
UNICOM 122.975

Arrival

SUNSS STAR 124.1

Approach

PHOENIX APPROACH 123.7

Departure

PHOENIX DEPARTURE 123.7

FAA A/FD Pages

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KPHX (9nm)
Tue, 3/3 7:53 PM MST
Tue, 3/3 8:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
8:00 PM MST - 12:00 AM MST
Scattered 25,000'
6sm
240° 4kts
VFR
12:00 AM MST - 11:00 AM MST
Scattered 25,000'
Few 20,000'
6sm
110° 5kts
VFR
11:00 AM MST - 3:00 PM MST
Broken 25,000'
Scattered 20,000'
6sm
180° 5kts
VFR
3:00 PM MST - 11:00 PM MST
Broken 25,000'
Scattered 20,000'
6sm
260° 6kts
TAF KPHX 040253Z 0403/0506 24004KT P6SM SCT250
   FM040700 11005KT P6SM FEW200 SCT250
   FM041800 18005KT P6SM SCT200 BKN250
   FM042200 26006KT P6SM SCT200 BKN250
P19
EffectiveExpiresCategoryNOTAM
Domestic
1/2/26
0000Z
12/31/26
2359Z
!PRC 01/006 P19 AIRSPACE SEE PXR 01/005 UAS DLY 0000-2359
2601020000-2612312359
12/30/25
1300Z
3/31/26
2300Z
!PRC 12/258 P19 OBST CRANE LGT (ASN 2025-AWP-14318-OE) 331746N1115231W (2.0NM E P19) 1335FT (140FT AGL) U/S DLY 1300-2300 2512301300-2603312300
12/23/25
0110Z
12/31/26
2359Z
!PRC 12/237 P19 TWY B2 CLSD EXC 1HR PPR 480-359-6575 2512230110-2612312359
FDC
2/25/26
1600Z
3/3/26
2000Z
!FDC 6/8881 P19 ODP STELLAR AIRPARK, CHANDLER, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TFD VORTAC OUT OF SERVICE. 2602251600-2603032000EST
No
UNATNDD
STELLAR RUNWAY UTILIZERS ASSN, INC.
11 NORTH STELLAR PARKWAY
CHANDLER, AZ 85226
Phone: 480-359-6575
BOARD OF DIRECTORS
11 NORTH STELLAR PARKWAY
CHANDLER, AZ 85226
Phone: 480-359-6575
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
DUSK-DAWN: ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 17/35

4417 ft. x 80 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 18' 17"N 33° 17' 34"N
Longitude 111° 54' 57"W 111° 54' 57"W
Elevation 1,178' 1,174'
Threshold Crossing Height 39 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.25° 3.25°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1ALERT: NON RADIO ACFT & BIRDS ON & INVOF ARPT.
A110-11TSNT CRTFYD FOR 15000 GROSS TKOF WEIGHT PPR.
A110-12FOR CD CTC PHOENIX APCH AT 602-306-2565.
A110-2TRNG TGL & TRNG HEL NA.
A110-4AVOID OTFC OF NOISE SENS AREA W OF RWY 17/35 & N OF ARPT.
A110-5COML & STUDENT TRNG OPS PMT ONLY.
A110-8FLOOD IRRIGATION BTW RWY & TWY; WATER UP TO 1 FT IREG SKED.
A110-9ENG RUNUP USE E SIDE AREA.
A16AVBL TO ALL 7 MEMBER BOARD.
A30-17/35RWY 17 CALM WIND RWY.
A57-1750:1 SLOPE TO DTHR; 11 FT TREE 565 FT FM DTHR 10 FT L OF CNTRLN.
A57-35APCH SLOPE 22:1 TO DTHR.
A58-17+8 FT FENCE 130 FT FM RWY END; +15 FT ROAD 164 FT FM RWY END ACRS THR.
A58-35+6 FT FENCE 80 FT FM RWY END ACRS THR; +15 FT ROAD 85 FT FM RWY END ACRS THR.
A70-100LLSELF SVC H24; INFO 623-277-0000.
A70-APPR - 602-750-2226.
A81-APTDUSK-DAWN: ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF.
E111TFC PAT TO W OF ARPT.
STELLAR AIRPARK (IATA: P19) is a public airport located in CHANDLER, AZ, US.
