iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

P13
SAN CARLOS APACHE
PublicPUB

7 miles SE of GLOBE, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 21' 11"N 110° 40' 02"W
3261' MSL
4261' MSL
12E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
4/17/25-5/15/25
KE77 (43nm) VFR
1:35 AM MST
Clear
10sm
63°F
55°F
30.01"Hg
190° 5kts
AO2
METAR KE77 140835Z AUTO 19005KT 10SM CLR 17/13 A3001 RMK AO2
+ Add Your Business

P13 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
928-475-5560
 120.075

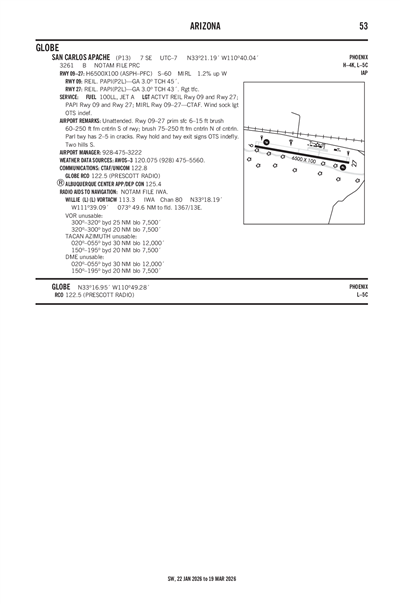

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIWA (49nm)
Mon, 10/13 11:14 PM MST
Mon, 10/13 11:00 PM MST - Tue, 10/14 11:00 PM MST
VFR
1:00 PM MST - 11:00 PM MST
Few 7,000'
6sm
240° 10kts
VFR
11:00 PM MST - 1:00 AM MST
Showers in vicinity
Scattered 6,000'
Few 5,000'
6sm
190° 10kts
VFR
9:00 AM MST - 1:00 PM MST
Scattered 5,000'
Few 4,000'
6sm
160° 9kts
VFR
1:00 AM MST - 9:00 AM MST
Few 7,000'
Few 5,000'
6sm
130° 7kts
TAF KIWA 140614Z 1406/1506 19010KT P6SM VCSH FEW050 SCT060
   FM140800 13007KT P6SM FEW050 FEW070
   FM141600 16009KT P6SM FEW040 SCT050
   FM142000 24010KT P6SM FEW070 AMD LTD TO CLD VIS AND WIND TIL 141200
P13
EffectiveExpiresCategoryNOTAM
Domestic
4/18/25
1220Z
Runway!PRC 04/180 P13 RWY 27 RWY END ID LGT U/S 2504181220-2510202111EST
4/18/25
1220Z
Runway!PRC 04/179 P13 RWY 09 PAPI U/S 2504181220-2510202111EST
4/18/25
1218Z
Runway!PRC 04/178 P13 RWY 09 RWY END ID LGT U/S 2504181218-2510202111EST
4/14/25
1331Z
Runway!PRC 04/115 P13 RWY 27 PAPI UNUSABLE 2504141331-2510142111EST
1/13/25
2151Z
!PRC 01/103 P13 SVC AUTOMATED WX BCST SYSTEM PRESENT WX UNREL 2501132151-2511192359EST
No
UNATNDD
SAN CARLOS APACHE TRIBE
PO BOX O
SAN CARLOS, AZ 85550
Phone: 928-475-2361
MARVIN MULL
C/O SAN CARLOS APACHE TRIBE, P.O. BOX O
SAN CARLOS, AZ 85550
Phone: 928-475-3222
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

6500 ft. x 100 ft.
ASPH
Fair
PFC
MED

60,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 102°282°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 33° 21' 18"N 33° 21' 05"N
Longitude 110° 40' 40"W 110° 39' 25"W
Elevation 3,261' 3,181'
Threshold Crossing Height 45 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1TWO HILLS S.
A110-2RWY HOLD & TWY EXIT SIGNS OTS INDEFLY.
A110-4PARL TWY HAS 2-5 IN CRACKS.
SAN CARLOS APACHE (IATA: P13) is a public airport located in GLOBE, AZ.
