P04
Local P04
BISBEE MUNI
PublicPUB

5 miles SE of BISBEE, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 22' 08"N 109° 53' 01"W
Elevation
4790' MSL
Pattern Alt
5790' MSL
Mag Variation
9°E
Declination
12°E
Fuel
100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KDUG (16nm) VFR
6:56 PM MST
Clear
10sm
67°F
20°F
30.02"Hg
260° 5kts
AO2 SLP123 T01941067 TSNO
METAR KDUG 040156Z AUTO 26005KT 10SM CLR 19/M07 A3002 RMK AO2 SLP123 T01941067 TSNO
+ Add Your Business

P04 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
GATES & LOUNGE CODE - CTAF.
UNICOM 122.8

Flight Service

Flight Service 122.4
(PRC), COMMUNICATIONS PRVDD BY PRESCOTT RADIO FREQ 122.4 (BISBEE RCO)

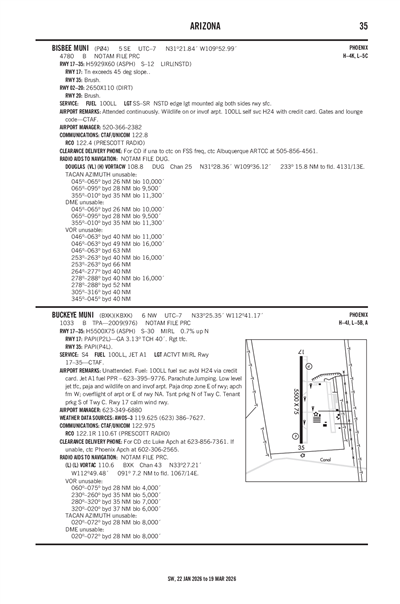

FAA A/FD Pages

Terminal Area Forecast

KDUG (16nm)
Tue, 3/3 4:22 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 9:00 PM MST
Sky Clear
6sm
230° 15kts
Gusts 24kts
VFR
9:00 PM MST - 1:00 AM MST
Sky Clear
6sm
350° 7kts
VFR
1:00 AM MST - 1:00 PM MST
Sky Clear
6sm
VRB° 3kts
VFR
1:00 PM MST - 5:00 PM MST
Broken 25,000'
6sm
240° 12kts
Gusts 20kts
TAF KDUG 032322Z 0400/0424 23015G24KT P6SM SKC
   FM040400 35007KT P6SM SKC
   FM040800 VRB03KT P6SM SKC
   FM042000 24012G20KT P6SM BKN250
P04
EffectiveExpiresCategoryNOTAM
Domestic
2/18/26
2044Z
!PRC 02/200 P04 COM REMOTE COM OUTLET 122.4 U/S 2602182044-2603042300EST
2/17/26
1055Z
3/4/26
0955Z
!PRC 02/183 P04 OBST TOWER LGT (ASR 1220849) 312640.90N1094948.20W (5.5NM NNE P04) 4859.6FT (264.8FT AGL) U/S 2602171055-2603040955
3/12/22
1730Z
!PRC 03/116 P04 SVC PCL ALL DECOMMISSIONED 2203121730-PERM
No
ALL
CITY OF BISBEE
118 ARIZONA ST
BISBEE, AZ 85603
Phone: 520-432-6000
CITY OF BISBEE
118 ARIZONA ST
BISBEE, AZ 85603
Phone: 520-432-6000
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 02/20

2700 ft. x 200 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading 35°215°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 31° 21' 59"N 31° 22' 21"N
Longitude 109° 53' 04"W 109° 52' 46"W
Elevation 4,758' 4,789'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

5929 ft. x 60 ft.
ASPH
Good
NONE
LOW

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 189°9°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 22' 36"N 31° 21' 38"N
Longitude 109° 52' 58"W 109° 53' 09"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A11MATTHEW GURNEY - 520-432-6262.
A110-1GATES & LOUNGE CODE - CTAF.
A110-2WILDLIFE ON OR INVOF ARPT.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A40-17/35NSTD: EDGE LGT MOUNTED ALG BOTH SIDES RWY SFC.
A57-17CTLG OBSTN EXCEEDS 45 DEG SLOPE.
A58-171 FT BRUSH 0-200 FT FM RWY END ACRS THR.
A58-354-5 FT BRUSH 25-200 FT FM THR 65-125 FT R & 80-125 FT L OF CNTRLN.
A70-100LLSELF SVC H24 WITH CREDIT CARD.
BISBEE MUNI (IATA: P04) is a public airport located in BISBEE, AZ, US.
