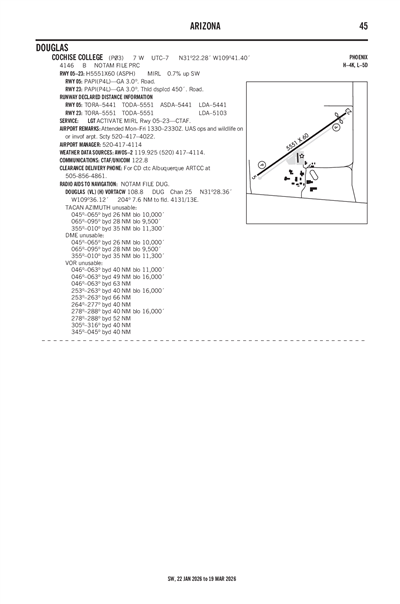

COCHISE COLLEGE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

P03
Local P03
COCHISE COLLEGE
PublicPUB

7 miles W of DOUGLAS, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 22' 17"N 109° 41' 24"W
Elevation
4146' MSL
Pattern Alt
5146' MSL
Mag Variation
9°E
Declination
12°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KDUG (8nm) VFR
8:56 PM MST
Clear
10sm
58°F
20°F
30.06"Hg
360° 8kts
AO2 SLP131 T01441067 TSNO
METAR KDUG 040356Z AUTO 36008KT 10SM CLR 14/M07 A3006 RMK AO2 SLP131 T01441067 TSNO
+ Add Your Business

P03 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-2 119.925
(520) 417-4114

Common

CTAF 122.8
ACTVT MIRL RWY 05/23 - CTAF.
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KDUG (8nm)
Tue, 3/3 4:22 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 9:00 PM MST
Sky Clear
6sm
230° 15kts
Gusts 24kts
VFR
9:00 PM MST - 1:00 AM MST
Sky Clear
6sm
350° 7kts
VFR
1:00 AM MST - 1:00 PM MST
Sky Clear
6sm
VRB° 3kts
VFR
1:00 PM MST - 5:00 PM MST
Broken 25,000'
6sm
240° 12kts
Gusts 20kts
TAF KDUG 032322Z 0400/0424 23015G24KT P6SM SKC
   FM040400 35007KT P6SM SKC
   FM040800 VRB03KT P6SM SKC
   FM042000 24012G20KT P6SM BKN250
P03
No NOTAM Available
No
MON-FRI 0630-1630
COCHISE COLLEGE
4190 W. HWY 80
DOUGLAS, AZ 85607
Phone: 520-417-4114
BELINDA BURNETT
COCHISE COMMUNITY COLLEGE 4190 W. HIGHWAY 80
DOUGLAS, AZ 85607
Phone: 520-417-4114
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT MIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
Pilot Instruction

Runway 05/23

5551 ft. x 60 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 57°237°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 22' 02"N 31° 22' 31"N
Longitude 109° 41' 51"W 109° 40' 57"W
Elevation 4,146' 4,110'
Threshold Crossing Height -- --
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1UAS OPS & WILDLIFE ON OR INVOF ARPT.
A110-2SCTY - 520-417-4022.
A110-5FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A57-23APCH SLOPE 42:1 TO DTHR.
A58-052-4 FT WEEDS 100-200 FT FM THR ACRS APCH.
A58-2315 FT ROAD 70 FT FM THR 250 FT L OF CNTRLN; 4 FT FENCE 55 FT FM THR 50-250 FT L OF CNTRLN; +2-3 FT BRUSH 20-200 FT FM THR ACRS APCH.
A81-APTACTVT MIRL RWY 05/23 - CTAF.
E111E111 PROVIDED VFR ONLY.
COCHISE COLLEGE (IATA: P03) is a public airport located in DOUGLAS, AZ, US.
