iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

NSTU
PAGO PAGO INTL
PublicPUB

3 miles SW of PAGO PAGO, AS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
14° 19' 54"S 170° 42' 41"W
31' MSL
1031' MSL
12E
JET A-1+, 100
HONOLULU (HNL)
GNC 20
AUCKLAND OCEANIC FIR (NZZO)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

NSTU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
684-699-0179
 127.925

FAA A/FD Pages

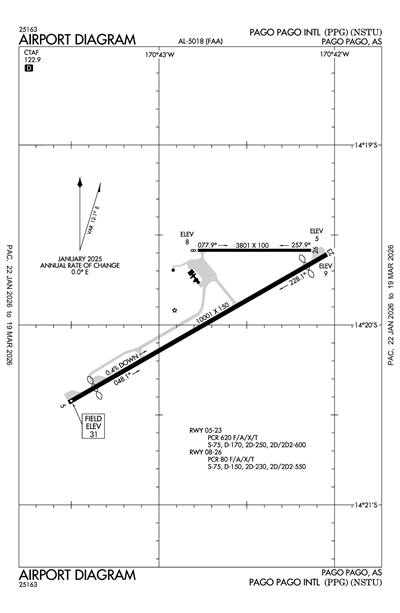

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
NSTU
Domestic
12/18/240442Z !PPG 12/001 PPG SVC AUTOMATED WX BCST SYSTEM U/S 2412180442-2501302000EST
10/1/241753Z !PPG 10/001 PPG NAV ILS RWY 05 GP UNUSABLE BEYOND 8NM
2410011753-PERM
FDC
1/13/252120Z !FDC 5/3029 PPG IAP PAGO PAGO INTL, PAGO PAGO, AS.
ILS OR LOC RWY 5, AMDT 15...
MISSED APPROACH: CLIMB TO 1100 THEN CLIMBING RIGHT TURN ON HEADING 090 TO 3000 THEN CLIMBING RIGHT TURN TO 4000 DIRECT TUT NDB AND HOLD..
ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TUT VOR OUT OF SERVICE. 2501132120-2502132120EST
1/13/252120Z !FDC 5/3028 PPG ODP PAGO PAGO INTL, PAGO PAGO, AS.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TUT VOR OUT OF SERVICE. 2501132120-2502132120EST
No
ALL
GOVT OF AMERICAN SAMOA
DEPT OF PORT ADMIN, BOX 1539
PAGO PAGO, AS 96799
Phone: 684-633-4251
TAVITA S FUIMAONO
1539 AIRPORT WAY P.O. BOX 1539, P.O. BOX 1539
PAGO PAGO, AS 96799
Phone: 684-733-3154
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
PPG
--
DUSK-DAWN. ACTVT MALSR RWY 05; PAPI RWYS 05 & 23; HIRL RWYS 05/23 & 08/26; TWY LGTS FREQ - 118.3.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
Minor
None
None
Cargo Handling
Charter Service

Runway 05/23

10001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
60 /F/A/W/T
75,000lbs
170,000lbs
250,000lbs
600,000lbs
  Runway 05 Runway 23
True Heading 60°240°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 14° 20' 26"S 14° 19' 36"S
Longitude 170° 43' 31"W 170° 42' 03"W
Elevation 31' 9'
Threshold Crossing Height 57 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3.25° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 08/26

3801 ft. x 100 ft.
ASPH
Good
GRVD
HIGH
45 /F/A/W/T
75,000lbs
150,000lbs
230,000lbs
550,000lbs
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 14° 19' 35"S 14° 19' 35"S
Longitude 170° 42' 47"W 170° 42' 08"W
Elevation 8' 5'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10PERMLY LGTD & MKD 226' TWR ATOP MT ALAVA 4.3SM NNE ARPT.
A110-11FOR NOTAM CONTACT NEW ZEALAND (643) 358-1688 FSS: NEW ZEALAND
A110-3<ALL FLTS (EXCP SKED) PRIOR PMSN FROM AMGR WITH 24 HRS PRIOR NOTICE.
A110-4SEA SPRAY FM SURF & BLOW HOLES MAY DRIFT ACRS RWY 05/23 UNDER ROUGH SEA CONDS.
A110-5ALL ACFT TRANSITING PAGO PAGO (EXCP COMMERCIAL CARRIERS) MUST MAKE FUEL ARRANGEMENTS WITH PPG AT 684-733-3158.
A110-9OLOTELE MT 1617 FT MSL 3.5 MILES WEST OF THLD RY 08.
PAGO PAGO INTL (ICAO: NSTU, IATA: PPG) is a public airport located in PAGO PAGO, AS.
