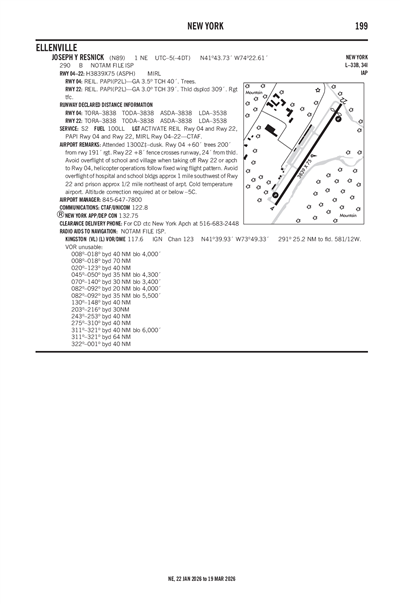

JOSEPH Y RESNICK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

N89
Local N89
JOSEPH Y RESNICK
PublicPUB

1 miles NE of ELLENVILLE, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 43' 44"N 74° 22' 37"W
Elevation
290' MSL
Pattern Alt
1290' MSL
Mag Variation
13°W
Declination
14°W
Fuel
100LL
FSS
NEW YORK (ISP)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KMGJ (14nm) VFR
5:54 PM EST
Clear
10sm
39°F
31°F
30.22"Hg
Calm
AO2 SLP238 T00391006
METAR KMGJ 042254Z AUTO 00000KT 10SM CLR 04/M01 A3022 RMK AO2 SLP238 T00391006
+ Add Your Business

N89 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT REIL RWY 04 & 22; PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.
UNICOM 122.8

Approach

NEW YORK APPROACH 132.75

Departure

NEW YORK DEPARTURE 132.75

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSWF (18nm)
Wed, 3/4 6:40 PM EST
Wed, 3/4 7:00 PM EST - Fri, 3/6 1:00 AM EST
VFR
7:00 PM EST - 11:00 PM EST
Broken 12,000'
Scattered 5,000'
Few 800'
6sm
VRB° 3kts
MVFR
11:00 PM EST - 1:00 AM EST
Mist
Broken 12,000'
Broken 5,000'
Scattered 500'
4sm
VRB° 1kts
IFR
1:00 AM EST - 4:00 AM EST
Mist
Overcast 500'
1sm
VRB° 2kts
LIFR
4:00 AM EST - 6:00 AM EST
Fog
Overcast 200'
0.5sm
VRB° 1kts
LIFR
6:00 AM EST - 1:00 PM EST
Light Rain and Mist
Overcast 300'
1sm
070° 3kts
LIFR
1:00 PM EST - 11:00 PM EST
Light Rain and Mist
Overcast 300'
2sm
070° 6kts
IFR
11:00 PM EST - 1:00 AM EST
Rain and Mist
Overcast 500'
3sm
070° 8kts
TAF KSWF 042340Z 0500/0606 VRB03KT P6SM FEW008 SCT050 BKN120
   FM050400 VRB01KT 4SM BR SCT005 BKN050 BKN120
   FM050600 VRB02KT 1SM BR OVC005
   FM050900 VRB01KT 1/2SM FG OVC002
   FM051100 07003KT 1SM -RA BR OVC003
   FM051800 07006KT 2SM -RA BR OVC003
   FM060400 07008KT 3SM RA BR OVC005 AMD NOT SKED
N89
EffectiveExpiresCategoryNOTAM
Domestic
2/13/26
1513Z
Runway!ISP 02/098 N89 RWY 04 PAPI UNUSABLE 2602131513-2608132111EST
2/7/26
2115Z
3/24/26
2359Z
!ISP 02/054 N89 OBST POLE LGT (ASN 2020-AEA-2880-OE) 414447N0742255W (1.1NM N N89) 614FT (57FT AGL) U/S 2602072115-2603242359
2/3/26
1032Z
3/20/26
1032Z
!ISP 02/015 N89 OBST POWER LINE LGT (ASN 2020-AEA-2884-OE) 414447N0742256W (1.1NM N N89) 571FT (57FT AGL) U/S 2602031032-2603201032
1/28/26
0945Z
3/14/26
0738Z
!ISP 01/365 N89 OBST POWER LINE LGT (ASN UNKNOWN) 414448N0742243W (1.13NM N N89) 696FT (57FT AGL) U/S 2601280945-2603140738
1/27/26
0615Z
3/13/26
0200Z
!ISP 01/349 N89 OBST POLE LGT (ASN 2020-AEA-2883-OE) 414447N0742256W (1.1NM N N89) 576FT (57FT AGL) U/S 2601270615-2603130200
1/23/26
0607Z
3/22/26
0546Z
!ISP 01/280 N89 OBST POLE LGT (ASN 2020-AEA-2882-OE) 414446N0742258W (1.1NM NNW N89) 565FT (62FT AGL) U/S 2601230607-2603220546
No
0800-DARK
TOWN OF WAWARSING
108 CANAL STREET
ELLENVILLE, NY 12428
Phone: 845-647-6570
TERRY HOUCK
TOWN SUPERVISOR 108 CANAL STREET
ELLENVILLE, NY 12428
Phone: 845-647-7800
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
ISP
--
ACTVT REIL RWY 04 & 22; PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Minor
Minor
None
None
Pilot Instruction

Runway 04/22

3839 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 04 Runway 22
True Heading 33°213°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 43' 28"N 41° 43' 60"N
Longitude 74° 22' 50"W 74° 22' 23"W
Elevation 290' 283'
Threshold Crossing Height 40 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1AVOID OVERFLIGHT OF SCHOOL & VILLAGE WHEN TAKING OFF RWY 22 OR APCH TO RWY 4, HEL OPNS FOLLOW FIXED WING FLT PAT.
A110-10FOR CD CTC NEW YORK APCH AT 516-683-2448
A110-11COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -5C.
A110-2AVOID OVERFLIGHT OF HOSP & SCHOOL BUILDINGS APPROX 1 MILE SW OF RWY 22 & PRISON APPROX 1/2 MILE NE OF ARPT.
A110-6RWY 04; 60 FT TREES 200 FT FM RWY, 191 RIGHT.
A110-7RWY 22; 8 FT FENCE CROSSES RWY 24 FT FM THR.
A110-8AWOS FREQUENCY 122.8 - 5 CLICKS.
A57-22RWY 22 APCH RATIO 0:1 TO DTHR BASED ON 8 FT FENCE 243 FT LEFT OF DTHR. RWY 22 CLNC OBSTN IS CORN IN FIELD.
A58-04RWY 04 65 FT TREES, 0 FT FM RWY THLD, 206 FT RIGHT.
A58-22RY 22 +35-55 FT TREES, 0-80 FT FROM RY THRESHOLD, 90-200 FT LEFT OF CNTRLN; -6 FT CREEK 0B 50 FT FROM THRESHOLD; +8 FT FENCE CROSSES RUNWAY 24 FT FROM THRESHOLD.
A81-APTACTVT REIL RWY 04 & 22; PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.
E111VFR USE ONLY
JOSEPH Y RESNICK (IATA: N89) is a public airport located in ELLENVILLE, NY, US.
