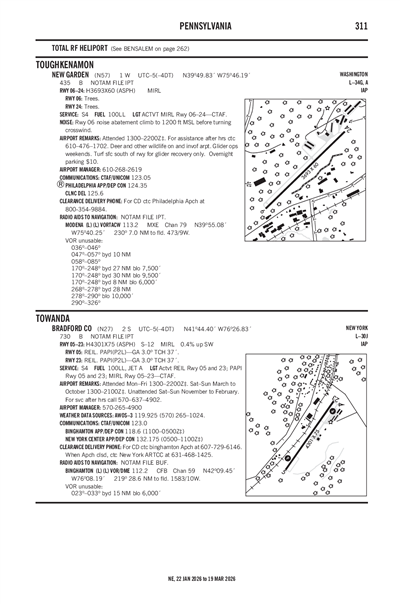

NEW GARDEN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

N57
Local N57
NEW GARDEN
PublicPUB

1 miles W of TOUGHKENAMON, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 49' 50"N 75° 46' 11"W
Elevation
435' MSL
Pattern Alt
1435' MSL
Mag Variation
12°W
Declination
9°W
Fuel
100LL
FSS
WILLIAMSPORT (IPT)
Sectional
WASHINGTON
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KMQS (10nm) LIFR
10:55 PM EST
Mist and Unknown Precipitation
Overcast 300'
3sm
36°F
36°F
30.21"Hg
VRB° 3kts
AO2 UPB0350 P0000 T00210021
METAR KMQS 040355Z AUTO VRB03KT 3SM UP BR OVC003 02/02 A3021 RMK AO2 UPB0350 P0000 T00210021
+ Add Your Business

N57 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.05
ACTVT MIRL RWY 06/24 - CTAF.
UNICOM 123.05

Clearance

Clearance Delivery 125.6

Approach

PHILADELPHIA APPROACH 124.35

Departure

PHILADELPHIA DEPARTURE 124.35

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KILG (12nm)
Tue, 3/3 9:45 PM EST
Tue, 3/3 10:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
10:00 PM EST - 11:00 PM EST
Light Rain and Mist
Overcast 500'
3sm
230° 8kts
IFR
11:00 PM EST - 5:00 AM EST
Light Drizzle and Mist
Overcast 500'
3sm
230° 8kts
LIFR
5:00 AM EST - 11:00 AM EST
Mist
Overcast 300'
2sm
VRB° 3kts
MVFR
11:00 AM EST - 3:00 PM EST
Mist
Broken 1,500'
6sm
030° 5kts
MVFR
3:00 PM EST - 7:00 PM EST
Light Rain and Mist
Overcast 1,500'
3sm
070° 5kts
TAF KILG 040245Z 0403/0424 23008KT 3SM -RA BR OVC005
   FM040400 23008KT 3SM -DZ BR OVC005
   FM041000 VRB03KT 2SM BR OVC003
   FM041600 03005KT 6SM BR BKN015
   FM042000 07005KT 3SM -RA BR OVC015
N57
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0630Z
2/25/26
1100Z
!IPT 02/212 N57 COM CLR DELIVERY 125.6 U/S 2602250630-2602251100
No
0800 - 1700
NEW GARDEN TOWNSHIP
TOWNSHIP MANAGER 299 STARR RD.
LANDENBURG, PA 19350
Phone: 610-268-2915
JONATHAN MARTIN
1235 NEWARK ROAD
TOUGHKENAMON, PA 19374
Phone: 610-268-2619
WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF
IPT
--
ACTVT MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 06/24

3693 ft. x 60 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 06 Runway 24
True Heading 46°226°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 49' 37"N 39° 50' 03"N
Longitude 75° 46' 28"W 75° 45' 54"W
Elevation 433' 430'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 06 NOISE ABATEMENT CLIMB TO 1200 FT MSL BFR TURNING CROSSWIND.
A110-2FOR ASST AFTER HRS CTC 610-476-1702
A110-3DEER AND OTHER WILDLIFE ON AND INVOF ARPT.
A110-5OVNGT PRKG FEE.
A110-6FOR CD CTC PHILADELPHIA APCH AT 800-354-9884.
A33-06/24_SURFTURF SFC SOUTH OF RWY FOR GLIDER RECOVERY ONLY.
A57-06CTLG OBSTN EXCEEDS 45 DEG SLP.
A58-0613 FT TREES, 183 FT FROM RWY END & 149 FT RIGHT.
A76-GLDGLIDER OPS INVOF AIRPORT.
A81-APTACTVT MIRL RWY 06/24 - CTAF.
E111VFR USE ONLY
NEW GARDEN (IATA: N57) is a public airport located in TOUGHKENAMON, PA, US.
