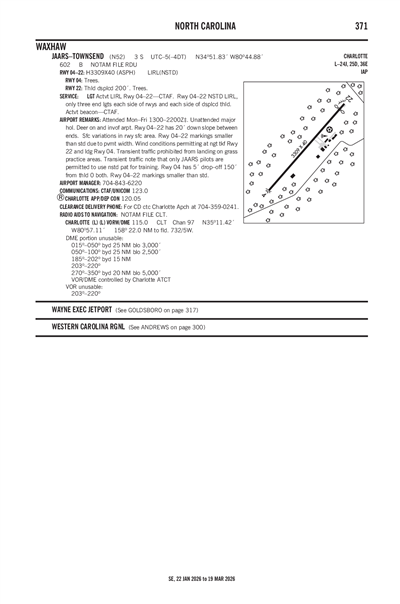

JAARS-TOWNSEND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

N52
Local N52
JAARS-TOWNSEND
PublicPUB

3 miles S of WAXHAW, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 51' 50"N 80° 44' 53"W
Elevation
602' MSL
Pattern Alt
1602' MSL
Mag Variation
8°W
Declination
7°W
Fuel
None Listed
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KLKR (10nm) LIFR
10:55 PM EST
Mist
Overcast 3,400'
Broken 2,600'
0.75sm
46°F
46°F
30.34"Hg
Calm
AO2
METAR KLKR 040355Z AUTO 00000KT 3/4SM BR BKN026 OVC034 08/08 A3034 RMK AO2
+ Add Your Business

N52 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
ACTVT BEACON - CTAF.; ACTVT LIRL RWY 04/22 - CTAF.
UNICOM 123.0

Arrival

JOOLS STAR 135.6
RASLN STAR 126.15

Approach

CHARLOTTE APPROACH 120.05

Departure

CHARLOTTE DEPARTURE 120.05

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KCLT (24nm)
Tue, 3/3 9:03 PM EST
Tue, 3/3 9:00 PM EST - Thu, 3/5 1:00 AM EST
VFR
9:00 PM EST - 11:00 PM EST
Scattered 25,000'
6sm
210° 3kts
MVFR
11:00 PM EST - 1:00 AM EST
Broken 2,300'
6sm
220° 3kts
MVFR
1:00 AM EST - 6:00 AM EST
Broken 1,900'
6sm
210° 3kts
VFR
6:00 AM EST - 9:00 AM EST
Mist
Broken 12,000'
Scattered 2,000'
6sm
230° 3kts
VFR
9:00 AM EST - 12:00 AM EST
Scattered 4,000'
6sm
220° 6kts
MVFR
12:00 AM EST - 1:00 AM EST
Broken 2,900'
6sm
200° 4kts
TAF KCLT 040203Z 0402/0506 21003KT P6SM SCT250
   FM040400 22003KT P6SM BKN023
   FM040600 21003KT P6SM BKN019
   FM041100 23003KT 6SM BR SCT020 BKN120
   FM041400 22006KT P6SM SCT040
   FM050500 20004KT P6SM BKN029
N52
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
2125Z
5/25/26
0500Z
!RDU 02/412 N52 OBST TOWER LGT (ASR 1227379) 345655.10N0805038.20W (6.9NM NW N52) 867.8FT (242.8FT AGL) U/S 2602242125-2605250500
FDC
4/22/24
2128Z
!FDC 4/3899 N52 IAP JAARS-TOWNSEND, WAXHAW, NC.
RNAV (GPS) RWY 22, ORIG-A...
DELETE DESCENT ANGLE 3.05/TCH 40. PROFILE NOTE: VISUAL SEGMENT OBSTACLES..
2404222128-2604222128EST
No
MON-FRI 0800-1700
UNATNDD MAJOR HOLS.
JAARS INC.
PO BOX 248
WAXHAW, NC 28173
Phone: 704-843-6220
DAN MILLER
7710 JAARS ROAD
WAXHAW, NC 28173
Phone: 704-843-6220
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
ACTVT LIRL RWY 04/22 - CTAF.
ACTVT BEACON - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
Avionics

Runway 04/22

3309 ft. x 40 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 04 Runway 22
True Heading 38°218°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 34° 51' 37"N 34° 52' 03"N
Longitude 80° 45' 05"W 80° 44' 41"W
Elevation 602' 599'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RWY 04 HAS 5 FT DROP-OFF 150 FT FM THR, 0 BOTH.
A110-10TSNT TFC NOTE THAT ONLY JAARS PILOTS ARE PMTD TO USE NON-STD PATTERNS FOR T.
A110-2DEER ON AND INVOF ARPT.
A110-5RWY 04/22 20 FT DOWN SLOPE BTN ENDS.
A110-6SFC VARN IN RESA.
A110-7WIND CONDS PMTG AT NIGHT TKOF RWY 22 & LAND RWY 04.
A110-8TSNT TFC PROHIBITED FM LNDG ON GRASS PRACTICE AREAS.
A110-9FOR CD CTC CHARLOTTE APCH AT 704-359-0241.
A17-D1UNATNDD MAJOR HOLS.
A40-04/22RWY 04/22 NSTD LIRL. ONLY THREE END LGTS EACH SIDE OF RWYS & EACH SIDE OF DSPLCD THR.
A42-04_MARKMRKGS SMALLER THAN STD DUE TO PVMT WIDTH.
A42-22_MARKMRKGS SMALLER THAN STD DUE TO PVMT WIDTH.
A57-22APCH SLOPE 5:1 TO DSPLCD THR.
A58-04+15 FT WINDSOCK POLE 132 FT FROM THR OFFSET 74 FT LEFT OF CNTRLN; AND +51 FT TREES 0-200 FT FROM THR OFFSET 133 FT RIGHT OF CNTRLN; +51 FT TREES 0-200 FT FROM THR OFFSET 157 FT LEFT OF CNTRLN; AND +7 FT FENCE 0-200 FT FROM THR OFFSET 112 FT RIGHT AND OFFSET 120 FT LEFT OF CNTRLN.
A58-2284 FT TREES 0-200 FT FM THR OFFSET 133 FT RIGHT; 65 FT TREES 0-200 FT FM THR OFFSET 107 FT LEFT.
A81-APTACTVT LIRL RWY 04/22 - CTAF.
A81-BCNACTVT BEACON - CTAF.
JAARS-TOWNSEND (IATA: N52) is a public airport located in WAXHAW, NC, US.
