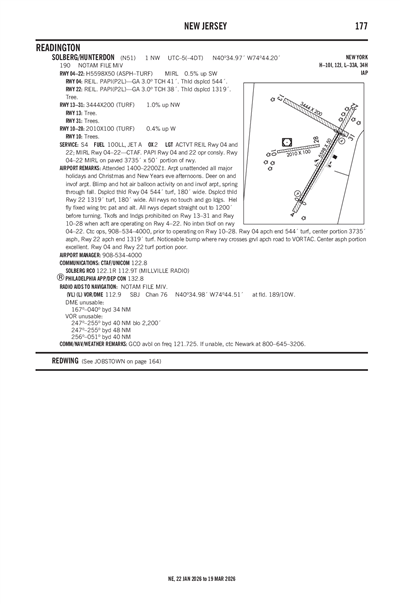

SOLBERG/HUNTERDON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

N51
Local N51
SOLBERG/HUNTERDON
PublicPUB

1 miles NW of READINGTON, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 34' 58"N 74° 44' 12"W
Elevation
190' MSL
Pattern Alt
1190' MSL
Mag Variation
12°W
Declination
10°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KSMQ (4nm) IFR
8:53 PM EST
Light Rain and Mist
Overcast 700'
3sm
34°F
33°F
30.23"Hg
Calm
AO2 SLP239 P0005 T00110006
METAR KSMQ 040153Z AUTO 00000KT 3SM -RA BR OVC007 01/01 A3023 RMK AO2 SLP239 P0005 T00110006
+ Add Your Business

N51 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT REIL RWY 04 & 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
UNICOM 122.8

Arrival

WILKES-BARRE STAR 127.6

Approach

NEWARK APPROACH 132.8

Departure

NEWARK DEPARTURE 132.8

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725. IF UNABLE, CTC NEWARK APCH AT 800-645-3206.

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KTTN (19nm)
Tue, 3/3 8:54 PM EST
Tue, 3/3 9:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
9:00 PM EST - 11:00 PM EST
Light Rain and Mist
Overcast 300'
2sm
VRB° 3kts
LIFR
11:00 PM EST - 4:00 AM EST
Light Rain and Mist
Overcast 300'
2sm
240° 5kts
LIFR
4:00 AM EST - 11:00 AM EST
Light Drizzle and Mist
Overcast 300'
2sm
VRB° 3kts
MVFR
11:00 AM EST - 2:00 PM EST
Mist
Broken 1,500'
6sm
040° 4kts
VFR
2:00 PM EST - 7:00 PM EST
Broken 4,000'
6sm
080° 3kts
TAF KTTN 040154Z 0402/0424 VRB03KT 2SM -RA BR OVC003
   FM040400 24005KT 2SM -RA BR OVC003
   FM040900 VRB03KT 2SM -DZ BR OVC003
   FM041600 04004KT 6SM BR BKN015
   FM041900 08003KT P6SM BKN040
N51
EffectiveExpiresCategoryNOTAM
FDC
11/25/24
1549Z
!FDC 4/8485 N51 IAP SOLBERG/HUNTERDON, READINGTON, NJ.
VOR RWY 4, AMDT 2...
NOTE: PROCEDURE NA AT NIGHT.
2411251549-2611251549EST
11/25/24
1549Z
!FDC 4/8480 N51 IAP SOLBERG/HUNTERDON, READINGTON, NJ.
RNAV (GPS) RWY 22, ORIG-D...
ADD NOTE: CIRCLING RWY 4 NA AT NIGHT.
2411251549-2611251548EST
5/21/24
1805Z
!FDC 4/7495 N51 IAP SOLBERG/HUNTERDON, READINGTON, NJ.
RNAV (GPS) RWY 4, AMDT 1...
STRAIGHT-IN MINIMUMS NA ALL CATS.
NEWARK LIBERTY INTL ALTIMETER SETTING MINIMUMS: STRAIGHT-IN MINIMUMS NA ALL CATS.
ADD NOTE CIRCLING RWY 4 NA AT NIGHT.
2405211805-2605211804EST
No
0900-1700
ARPT UNATNDD ALL MAJOR HOLIDAYS & CHRISTMAS & NEW YEARS EVE AFTERNOONS.
SOLBERG AVIATION COMPANY
39 THOR SOLBERG ROAD
WHITEHOUSE STATION, NJ 08889
Phone: 908-534-4000
SUZANNE SOLBERG NAGLE
39 THOR SOLBERG ROAD
WHITEHOUSE STATION, NJ 08889
Phone: 908-534-4000
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
--
ACTVT REIL RWY 04 & 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Pilot Instruction
Aircraft Rental

Runway 04/22

5598 ft. x 50 ft.
ASPH
TURF
NONE
MED

--
--
--
--
  Runway 04 Runway 22
True Heading 29°209°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 40° 34' 27"N 40° 35' 15"N
Longitude 74° 44' 26"W 74° 43' 50"W
Elevation 180' 153'
Threshold Crossing Height 41 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 10/28

2010 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 81°261°
Traffic Pattern
Markings
Markings Condition POOR POOR
Latitude 40° 34' 55"N 40° 34' 58"N
Longitude 74° 44' 36"W 74° 44' 11"W
Elevation 186' 178'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

3444 ft. x 200 ft.
TURF
Good
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 119°299°
Traffic Pattern Left Left
Markings
Markings Condition GOOD GOOD
Latitude 40° 35' 19"N 40° 35' 02"N
Longitude 74° 44' 32"W 74° 43' 53"W
Elevation 187' 152'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10HEL FLY FIXED WING TFC PAT AND ALT.
A110-11NO INTXN TKOF ON RWY 04/22.
A110-3NO TGL ALL RWYS.
A110-4ALL RWYS DEPT STRAIGHT OUT TO 1200 FT MSL BEFORE TURNING.
A110-5BLIMP AND HOT AIR BALLOON ACTIVITY ON AND INVOF ARPT SPRING THRU FALL.
A110-6GCO AVBL ON FREQ 121.725. IF UNABLE, CTC NEWARK APCH AT 800-645-3206.
A110-7DEER ON AND INVOF ARPT.
A110-8TKOFS & LNDGS PROHIBITED ON RWY 13/31 & RWY 10/28 WHEN ACFT ARE OPERNG ON RWY 4/22.
A110-9CTC OPS, 908-534-4000, PRIOR TO OPERATING ON RWY 10/28.
A14CO-MGRS THOR SOLBERG III AND LORRAINE SOLBERG.
A17-M1ARPT UNATNDD ALL MAJOR HOLIDAYS & CHRISTMAS & NEW YEARS EVE AFTERNOONS.
A33-04/22_CONDRWY 04 TURF PORTION POOR AND UNUSBL. CENTER ASPH PORTION EXCELLENT. RWY 22 TURF PORTION POOR AND UNUSBL.
A33-04/22_SURFRWY 04 & RWY 22 TURF PTN POOR.
A33-10/28_CONDNOTICEABLE BUMP WHERE RWY CROSSES GRVL APCH ROAD TO VORTAC.
A40-04/22RWY 04/22 MIRL ON PAVED 3735 FT BY 50 FT PORTION OF RWY.
A51-04DSPLCD THLD 544 FT TURF 180 FT WIDE.
A51-22DSPLCD THLD 1319 FT TURF 180 FT WIDE.
A81-APTACTVT REIL RWY 04 & 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
SOLBERG/HUNTERDON (IATA: N51) is a public airport located in READINGTON, NJ, US.
