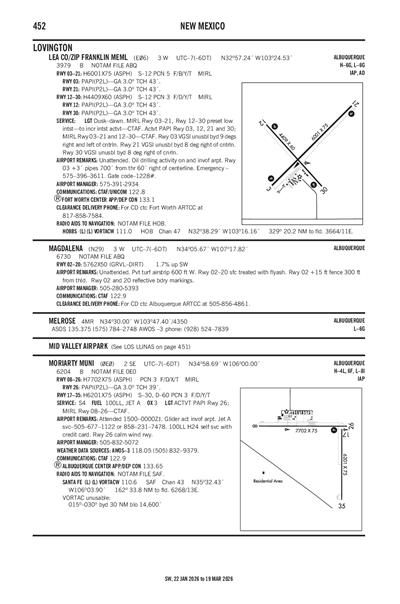

MAGDALENA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

N29
Local N29
MAGDALENA
PublicPUB

3 miles W of MAGDALENA, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 05' 40"N 107° 17' 49"W
Elevation
6730' MSL
Pattern Alt
7730' MSL
Mag Variation
8°E
Declination
11°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KONM (20nm) VFR
7:55 PM MST
Clear
10sm
69°F
15°F
30.02"Hg
320° 9kts
Gusts 15kts
AO2 T02081097
METAR KONM 040255Z AUTO 32009G15KT 10SM CLR 21/M10 A3002 RMK AO2 T02081097
+ Add Your Business

N29 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KTCS (52nm)
Tue, 3/3 4:31 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 8:00 PM MST
Few 25,000'
6sm
250° 15kts
Gusts 25kts
VFR
8:00 PM MST - 5:00 PM MST
Few 25,000'
6sm
300° 8kts
TAF KTCS 032331Z 0400/0424 25015G25KT P6SM FEW250
   FM040300 30008KT P6SM FEW250
N29
No NOTAM Available
No
UNATNDD
VILLAGE OF MAGDALENA
PO BOX 145
MAGDALENA, NM 87825
Phone: 575-854-2261
RICHARD RUMPF
BOX145
MAGDALENA, NM 87825
Phone: 505-280-5393
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
--
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 02/20

5762 ft. x 50 ft.
GRVL DIRT
Excellent
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading 31°211°
Traffic Pattern
Markings
Markings Condition
Latitude 34° 05' 16"N 34° 06' 05"N
Longitude 107° 18' 06"W 107° 17' 31"W
Elevation 6,730' 6,633'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No
A110-2PVT TURF STRIP 600 FT W.
A110-5FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A30A-02+15 FT FENCE 300 FT FM THR.
A34-02/20FLYASH
A42-02_MARKREFLECTIVE BDRY MARKINGS.
A42-20_MARKREFLECTIVE BDRY MARKINGS.
MAGDALENA (IATA: N29) is a public airport located in MAGDALENA, NM, US.
