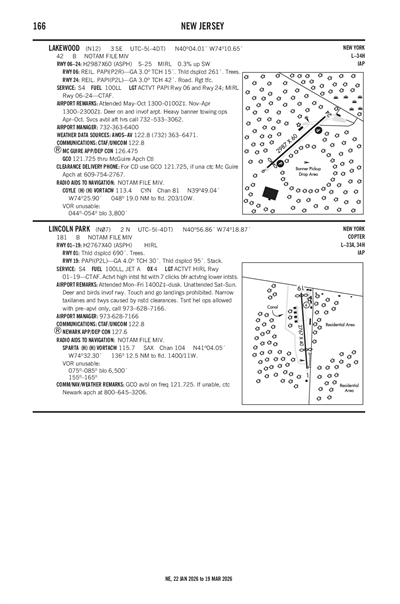

LINCOLN PARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

N07
Local N07
LINCOLN PARK
PublicPUB

2 miles N of LINCOLN PARK, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 56' 51"N 74° 18' 52"W
Elevation
181' MSL
Pattern Alt
1181' MSL
Mag Variation
13°W
Declination
13°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KCDW (5nm) VFR
3:53 AM EST
Overcast 4,300'
10sm
36°F
35°F
30.20"Hg
220° 3kts
AO2 SLP235 60000 T00220017 56004
METAR KCDW 040853Z AUTO 22003KT 10SM OVC043 02/02 A3020 RMK AO2 SLP235 60000 T00220017 56004
+ Add Your Business

N07 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT HIRL RY 01/19 - CTAF. ACTVT HIGH INTST FST WITH 7 CLICKS BFR ACTVTNG LOWER INTSTS.
UNICOM 122.8

Approach

NEWARK APPROACH 127.6

Departure

NEWARK DEPARTURE 127.6

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725. IF UNABLE, CTC NEWARK APCH AT 800-645-3206.

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KTEB (13nm)
Wed, 3/4 3:33 AM EST
Wed, 3/4 4:00 AM EST - Thu, 3/5 7:00 AM EST
IFR
4:00 AM EST - 8:00 AM EST
Mist
Overcast 2,000'
Broken 600'
3sm
VRB° 4kts
MVFR
8:00 AM EST - 11:00 AM EST
Mist
Broken 1,200'
Scattered 600'
5sm
280° 2kts
VFR
11:00 AM EST - 3:00 PM EST
Scattered 25,000'
Few 2,000'
6sm
360° 4kts
VFR
3:00 PM EST - 11:00 PM EST
Broken 25,000'
Scattered 10,000'
6sm
VRB° 3kts
VFR
11:00 PM EST - 2:00 AM EST
Mist
Broken 25,000'
Broken 10,000'
Scattered 600'
6sm
VRB° 2kts
IFR
2:00 AM EST - 7:00 AM EST
Mist
Broken 800'
3sm
VRB° 2kts
TAF KTEB 040833Z 0409/0512 VRB04KT 3SM BR BKN006 OVC020
   FM041300 28002KT 5SM BR SCT006 BKN012
   FM041600 36004KT P6SM FEW020 SCT250
   FM042000 VRB03KT P6SM SCT100 BKN250
   FM050400 VRB02KT 6SM BR SCT006 BKN100 BKN250
   FM050700 VRB02KT 3SM BR BKN008
N07
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
1822Z
6/30/26
1822Z
!MIV 03/007 N07 OBST TOWER LGT (ASR 1054662) 410100.30N0742745.10W (7.8NM WNW N07) 1423.9FT (249.0FT AGL) U/S 2603021822-2606301822
1/20/26
1502Z
Runway!MIV 01/186 N07 RWY 19 PAPI UNUSABLE 2601201502-2607202111EST
No
MON-FRI 0900-DUSK
SAT-SUN UNATT
LINCOLN PARK AIRPORT INC
425 BEAVER BROOK ROAD
LINCOLN PARK, NJ 07035
Phone: 973-628-7166
TOM VAN WINGERDEN
425 BEAVER BROOK ROAD
LINCOLN PARK, NJ 07035
Phone: 973-628-7166
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
--
ACTVT HIRL RY 01/19 - CTAF. ACTVT HIGH INTST FST WITH 7 CLICKS BFR ACTVTNG LOWER INTSTS.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01/19

2767 ft. x 40 ft.
ASPH
Good
NONE
HIGH

--
--
--
--
  Runway 01 Runway 19
True Heading 355°175°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 56' 38"N 40° 57' 05"N
Longitude 74° 18' 51"W 74° 18' 54"W
Elevation 177' 181'
Threshold Crossing Height -- 30 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NARROW TAXILANES & TWYS CAUSED BY NSTD CLNCS.
A110-3DEER AND BIRDS INVOF RUNWAY.
A110-5TOUCH AND GO LANDINGS PROHIBITED.
A110-6GCO AVBL ON FREQ 121.725. IF UNABLE, CTC NEWARK APCH AT 800-645-3206.
A110-7TSNT HEL OPS ALLOWED WITH PRE-APVL ONLY, CALL 973-628-7166.
A110-MANAGERFBO CTC (973) 633-0450.
A57-01+50 FT TREE LINE 0-680 FT AND 90-160 FT R; APCH RATIO 0:1 BASED ON DSPLCD THLD.
A57-19APCH RATIO 7:1 TO DSPLCD THLD.
A58-01+75 FT TREES 0-200 FT FROM RWY END 250 L - 250 R.
A58-19+30 FT HGR 80 FT FROM RWY END 200 FT L.
A81-APTACTVT HIRL RY 01/19 - CTAF. ACTVT HIGH INTST FST WITH 7 CLICKS BFR ACTVTNG LOWER INTSTS.
E111ESTAB PRIOR TO 1936.
LINCOLN PARK (IATA: N07) is a public airport located in LINCOLN PARK, NJ, US.
