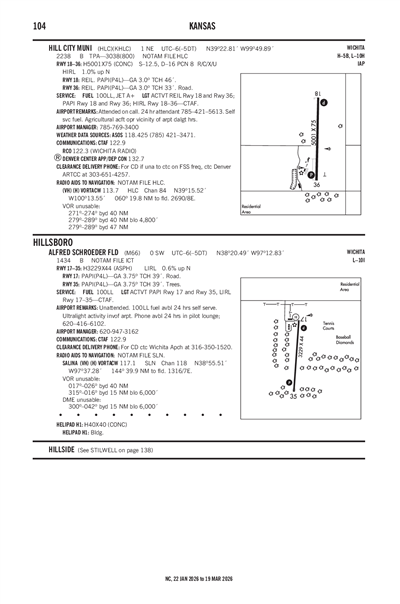

ALFRED SCHROEDER FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

M66
ALFRED SCHROEDER FLD
PublicPUB

0 miles SW of HILLSBORO, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 20' 30"N 97° 12' 50"W
1434' MSL
2434' MSL
100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
4/17/25-5/15/25
KEWK (17nm) VFR
9:56 AM CST
Clear
10sm
38°F
31°F
30.09"Hg
020° 9kts
AO2 SLP196 T00331006 $
METAR KEWK 091556Z AUTO 02009KT 10SM CLR 03/M01 A3009 RMK AO2 SLP196 T00331006 $
+ Add Your Business

M66 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

No frequencies available for this airport.

FAA A/FD Pages

Terminal Area Forecast

KSLN (33nm)
Fri, 1/9 5:20 AM CST
Fri, 1/9 6:00 AM CST - Sat, 1/10 6:00 AM CST
VFR
6:00 AM CST - 1:00 PM CST
Few 20,000'
6sm
350° 5kts
VFR
1:00 PM CST - 3:00 PM CST
Showers in vicinity
Overcast 7,000'
6sm
350° 9kts
MVFR
3:00 PM CST - 5:00 PM CST
Light Rain
Overcast 2,500'
6sm
350° 9kts
VFR
5:00 PM CST - 7:00 PM CST
Light Rain and Snow
Overcast 3,500'
6sm
340° 9kts
MVFR
7:00 PM CST - 9:00 PM CST
Light Snow
Overcast 3,500'
5sm
340° 8kts
VFR
9:00 PM CST - 6:00 AM CST
Showers in vicinity
Overcast 4,500'
6sm
340° 8kts
TAF KSLN 091120Z 0912/1012 35005KT P6SM FEW200
   FM091900 35009KT P6SM VCSH OVC070
   FM092100 35009KT P6SM -RA OVC025
   FM092300 34009KT 6SM -RASN OVC035
   FM100100 34008KT 5SM -SN OVC035
   FM100300 34008KT P6SM VCSH OVC045
M66
EffectiveExpiresCategoryNOTAM
Domestic
1/4/26
2123Z
12/30/26
2359Z
!ICT 01/049 M66 OBST TOWER LGT (ASR 1034960) 382832.80N0971718.30W (8.8NM NNW M66) 2303.8FT (858.9FT AGL) U/S 2601042123-2612302359
11/26/25
0526Z
1/28/26
0001Z
!ICT 11/362 M66 OBST TOWER LGT (ASR 1250955) 382141.60N0971415.70W (1.6NM NW M66) 1690.9FT (234.9FT AGL) U/S 2511260526-2601280001
No
UNATNDD
CITY OF HILLSBORO
118 EAST GRAND
HILLSBORO, KS 67063
Phone: 620-947-3162
LARRY PAINE
118 EAST GRAND
HILLSBORO, KS 67063
Phone: 620-947-3162
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT LIRL RY 17/35; PAPI RYS 17 & 35 - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
No
None
None
None
None
None

Runway 17/35

3229 ft. x 44 ft.
ASPH
Fair
NONE
LOW

--
--
--
--
  Runway 17 Runway 35
True Heading 182°2°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition FAIR FAIR
Latitude 38° 20' 46"N 38° 20' 14"N
Longitude 97° 12' 49"W 97° 12' 51"W
Elevation 1,434' 1,416'
Threshold Crossing Height 39 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3.75° 3.75°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

40 ft. x 40 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 86°266°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 38° 20' 46"N N/A
Longitude 97° 12' 51"W N/A
Elevation 1,435' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ULTRALIGHT ACTIVITY INVOF ARPT.
A110-2PHONE AVBL 24 HRS IN PILOTS LOUNGE; (620) 947-8970.
A110-3FOR CD CTC WICHITA APCH AT 316-350-1520.
A14CITY ADMINISTRATOR.
A16KRISTEN.LONG@TADERA.COM
A31-17/35RY 17/35 TURNAROUND & RUNUP AREA ON APCH TO RY 35 EXTDD APRXLY 23 FT.
A58-35APCH END RWY 35 0 FT +28 FT TREES 125 FT L & 125 FT R; CLNC SLOPE 1:1
A70-FUEL-100LL SELF-SVC 100LL FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APTACTVT LIRL RY 17/35; PAPI RYS 17 & 35 - CTAF.
E111PROVIDED A CLEAR APPROACH TO EACH RWY IS MAINTAINED FOR A MINIMUM 20:1 GLIDE SLOPE AND THE TRANSITIONAL SURFACE IS MAINTAINED FOR A 7:1 SLOPE.
ALFRED SCHROEDER FLD (IATA: M66) is a public airport located in HILLSBORO, KS.
