M54
LEBANON MUNI
PublicPUB

2 miles SW of LEBANON, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 11' 25"N 86° 18' 56"W
588' MSL
1588' MSL
02W
JET A, 100LL
NASHVILLE (BNA)
ST LOUIS
MEMPHIS (ZME)
7/11/24-8/8/24
KM54 VFR
5:15 AM CDT
Clear
10sm
63°F
63°F
29.92"Hg
Calm
A01
KM54 191015Z AUTO 00000KT 10SM CLR 17/17 A2992 RMK A01
Add Your Business

M54 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

AWOS-3

AWOS-3
615-444-5778
 118.325

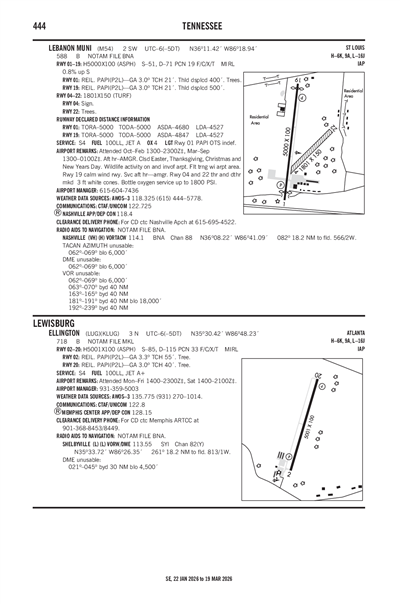

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMQY (15nm)
Thu, 9/19 12:20 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 9:00 AM CDT
Scattered 25,000'
6sm
Calm
VFR
9:00 AM CDT - 1:00 AM CDT
Scattered 25,000'
Few 5,000'
6sm
050° 5kts
KMQY 190520Z 1906/2006 00000KT P6SM SCT250
   FM191400 05005KT P6SM FEW050 SCT250
M54
Domestic
9/14/242300Z !BNA 09/253 M54 RWY 04/22 CLSD DLY 2300-1200 2409142300-2411051200
9/14/242300Z !BNA 09/252 M54 RWY 01/19 CLSD DLY 2300-1200 2409142300-2411051200
8/3/241330Z !BNA 08/088 M54 OBST TOWER LGT (ASR 1038418) 361034.20N0860743.40W (9.1NM E M54) 1190.0FT (355.0FT AGL) U/S 2408031330-2411020400
FDC
7/18/241645Z !FDC 4/4391 M54 IAP LEBANON MUNI, LEBANON, TN.
RNAV (GPS) RWY 1, ORIG-A...
RNAV (GPS) RWY 19, ORIG-A...
LPV DA NA.
LNAV/VNAV DA NA.
NOTE: PROCEDURE NA AT NIGHT.
2407181645-2607181645EST
7/18/241645Z !FDC 4/4390 M54 ODP LEBANON MUNI, LEBANON, TN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 19, 500-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 310 FT/NM TO 1500.
ALL OTHER DATA REMAINS AS PUBLISHED. 2407181645-2607181645EST
No
OCT - FEB 0700-1700
MAR - SEP 0700-1900
AFT HR - AMGR.
CLSD EASTER, THANKSGIVING, CHRISTMAS & NEW YEARS DAY.
CITY OF LEBANON
200 CASTLE HEIGHTS AVE NORTH
LEBANON, TN 37087
Phone: 615-443-2839
HEATHER BAY
200 AVIATION WAY, SUITE 116
LEBANON, TN 37090
Phone: 615-444-0031
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
159
14
5
4
0
1
Minor
Minor
None
None
Air Freight
Air Ambulance
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 01/19

5000 ft. x 100 ft.
ASPH
Good
NONE
MED
19 /F/B/X/T
24,000lbs
37,000lbs
--
--
  Runway 01 Runway 19
True Heading 7°187°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 11' 01"N 36° 11' 50"N
Longitude 86° 19' 03"W 86° 18' 56"W
Elevation 588' 550'
Threshold Crossing Height 21 ft. AGL 21 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 04/22

1801 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 46°226°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 36° 11' 19"N 36° 11' 31"N
Longitude 86° 18' 57"W 86° 18' 41"W
Elevation 568' 565'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2WILDLIFE ON & INVOF ARPT.
A110-3FOR CD CTC NASHVILLE APCH AT 615-695-4522.
A110-4FLT TRNG WI ARPT AREA.
LEBANON MUNI (IATA: M54) is a public airport located in LEBANON, TN.
