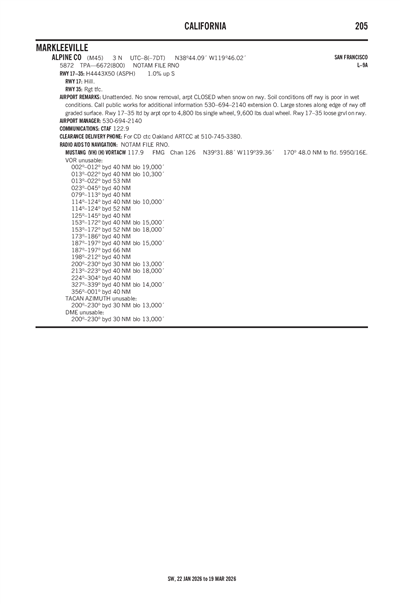

ALPINE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

M45
Local M45
ALPINE COUNTY
PublicPUB

3 miles N of MARKLEEVILLE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 44' 05"N 119° 46' 01"W
Elevation
5872' MSL
Pattern Alt
6672' MSL
Mag Variation
13°E
Declination
16°E
Fuel
None Listed
FSS
RENO (RNO)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KTVL (15nm) VFR
10:53 PM PST
Clear
10sm
31°F
30°F
30.15"Hg
Calm
AO2 SLP195 T10061011
METAR KTVL 040653Z AUTO 00000KT 10SM CLR M01/M01 A3015 RMK AO2 SLP195 T10061011
+ Add Your Business

M45 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KTVL (15nm)
Tue, 3/3 9:20 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 7:00 AM PST
Scattered 20,000'
6sm
180° 5kts
VFR
7:00 AM PST - 10:00 AM PST
Scattered 20,000'
6sm
190° 10kts
Gusts 18kts
VFR
10:00 AM PST - 1:00 PM PST
Scattered 20,000'
6sm
190° 20kts
Gusts 30kts
MVFR
1:00 PM PST - 4:00 PM PST
Light Showers and Rain
Broken 3,000'
6sm
200° 12kts
Gusts 20kts
VFR
4:00 PM PST - 10:00 PM PST
Scattered 10,000'
6sm
190° 8kts
TAF KTVL 040520Z 0406/0506 18005KT P6SM SCT200
   FM041500 19010G18KT P6SM SCT200
   FM041800 19020G30KT P6SM SCT200
   FM042100 20012G20KT 6SM -SHRA BKN030
   FM050000 19008KT P6SM SCT100
M45
No NOTAM Available
No
UNATNDD
ALPINE COUNTY
50 DIAMOND VALLEY RD
MARKLEEVILLE, CA 96120
Phone: 530-694-2140
SAM BOOTH
50 DIAMOND VALLEY RD
MARKLEEVILLE, CA 96120
Phone: 530-694-2140
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 17/35

4443 ft. x 50 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 184°4°
Traffic Pattern Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 38° 44' 27"N 38° 43' 43"N
Longitude 119° 45' 60"W 119° 46' 03"W
Elevation 5,827' 5,872'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1LARGE STONES ALONG EDGE OF RWY OFF GRADED SFC.
A110-2NO SNOW REMOVAL, ARPT CLOSED WHEN SNOW ON RUNWAY.
A110-3TREES PENETRATING TRANSITIONAL SFCS E & W OF RY.
A110-4SOIL CONDITIONS OFF RY IS POOR IN WET CONDITIONS. CALL PUBLIC WORKS FOR ADDITIONAL INFORMATION 530-694-2140 EXT."0".
A110-5RY 17/35 LIMITED BY AIRPORT OPERATOR TO 4,800 LBS SINGLE WHEEL, 9,600 LBS DUAL WHEEL.
A110-6FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
A14DIRECTOR OF COMMUNITY DEVELOPMENT
A16X 425
A33-17/35_CONDLOOSE GRVL ON RWY.
ALPINE COUNTY (IATA: M45) is a public airport located in MARKLEEVILLE, CA, US.
