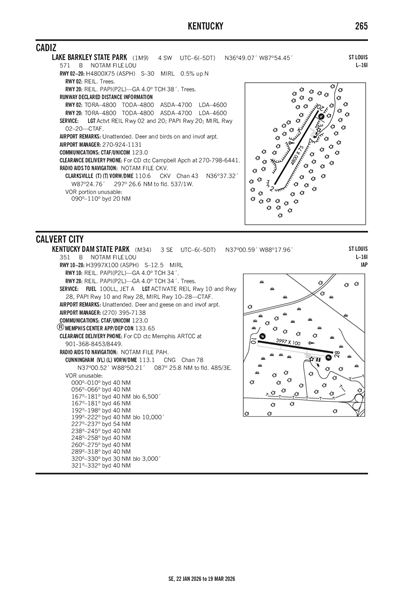

KENTUCKY DAM STATE PARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

M34
Local M34
KENTUCKY DAM STATE PARK
PublicPUB

3 miles SE of CALVERT CITY, KY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 00' 35"N 88° 17' 58"W
Elevation
351' MSL
Pattern Alt
1351' MSL
Mag Variation
3°W
Declination
3°W
Fuel
JET A, 100LL
FSS
LOUISVILLE (LOU)
Sectional
ST LOUIS
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KM25 (20nm) VFR
4:35 AM CST
Overcast 6,500'
10sm
61°F
61°F
30.10"Hg
190° 4kts
AO2 T01590159 $
METAR KM25 041035Z AUTO 19004KT 10SM OVC065 16/16 A3010 RMK AO2 T01590159 $
+ Add Your Business

M34 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
UNICOM 123.0

Center

MEMPHIS CENTER 133.65
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 133.65/292.15 (PADUCAH RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPAH (23nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 9:00 AM CST
Broken 4,500'
6sm
200° 6kts
MVFR
9:00 AM CST - 3:00 PM CST
Showers in vicinity
Broken 2,500'
6sm
210° 8kts
MVFR
3:00 PM CST - 6:00 PM CST
Light Thunderstorm and Rain
No Clouds
5sm
Calm
MVFR
3:00 PM CST - 6:00 PM CST
Thunderstorm in vicinity
Broken 3,000'
6sm
220° 10kts
Gusts 18kts
MVFR
6:00 PM CST - 10:00 PM CST
Thunderstorm in vicinity
Broken 2,500'
6sm
190° 8kts
IFR
Temporary 10:00 PM CST - 12:00 AM CST
Thunderstorm and Rain and Mist
Overcast 2,000'
2sm
Calm
MVFR
10:00 PM CST - 12:00 AM CST
Light Thunderstorm and Rain
Broken 2,500'
4sm
180° 7kts
TAF KPAH 040520Z 0406/0506 20006KT P6SM BKN045
   FM041500 21008KT P6SM VCSH BKN025
   FM042100 22010G18KT P6SM VCTS BKN030CB
   PROB30 0421/0424 5SM -TSRA
   FM050000 19008KT P6SM VCTS BKN025CB
   FM050400 18007KT 4SM -TSRA BKN025CB
   TEMPO 0504/0506 2SM TSRA BR OVC020CB
M34
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
2122Z
3/17/26
2022Z
!LOU 03/025 M34 OBST TOWER LGT (ASR 1222118) 365945.30N0882559.10W (6.5NM W M34) 726.7FT (339.9FT AGL) U/S 2603022122-2603172022
2/16/26
0048Z
4/2/26
0047Z
!LOU 02/372 M34 OBST TOWER LGT (ASN 2021-ASO-37310-OE) 365903N0882129W (3.2NM WSW M34) 590FT (231FT AGL) U/S 2602160048-2604020047
2/15/26
1418Z
4/1/26
1417Z
!LOU 02/364 M34 OBST TOWER LGT (ASN 2024-ASO-23017-OE) 370548N0882400W (7.1NM NW M34) 685FT (260FT AGL) U/S 2602151418-2604011417
2/3/26
1704Z
8/4/26
2359Z
!LOU 02/085 M34 OBST TOWER LGT (ASR 1053410) 370126.00N0882324.00W (4.4NM W M34) 869.1FT (497.0FT AGL) U/S 2602031704-2608042359
12/4/25
0518Z
6/30/26
2359Z
!LOU 12/102 M34 OBST TOWER LGT (ASN 2018-ASO-26691-OE) 370138N0881732W (1.1NM NNE M34) 610FT (279FT AGL) U/S 2512040518-2606302359
No
UNATNDD
CALVERT CITY KENTUCKY
2 HUDSON HOLLOW UNIT 1
FRANKFORT, KY 40601
Phone: (502) 892-3367
JOHN WARD
P.O. BOX 36
CALVERT CITY, KY 42029
Phone: (270) 395-7138
LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF
LOU
--
ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 10/28

3997 ft. x 100 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 98°278°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 00' 38"N 37° 00' 32"N
Longitude 88° 18' 22"W 88° 17' 33"W
Elevation 350' 351'
Threshold Crossing Height 34 ft. AGL 34 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER & GEESE ON & INVOF ARPT.
A110-3FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A81-APTACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
E111EXISTED PRIOR TO 1959.
KENTUCKY DAM STATE PARK (IATA: M34) is a public airport located in CALVERT CITY, KY, US.
