iFlightPlanner



...

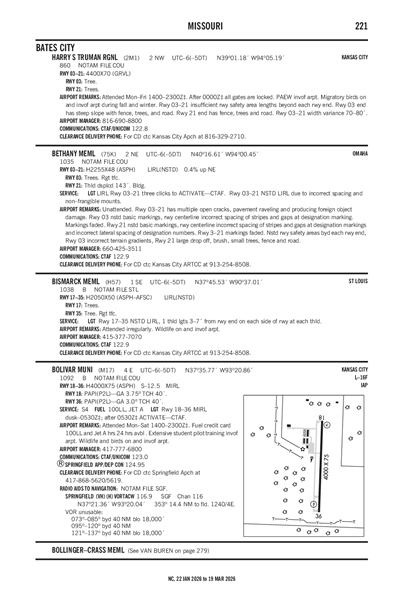

BOLIVAR MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

M17
Local M17
BOLIVAR MUNI
PublicPUB

4 miles E of BOLIVAR, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 35' 46"N 93° 20' 52"W
Elevation
1092' MSL
Pattern Alt
2092' MSL
Mag Variation
0°
Declination
3°E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KSGF (22nm) VFR
7:52 PM CST
Overcast 7,500'
Broken 5,500'
Broken 4,300'
10sm
66°F
57°F
30.00"Hg
190° 7kts
AO2 SLP156 T01890139
METAR KSGF 040152Z 19007KT 10SM BKN043 BKN055 OVC075 19/14 A3000 RMK AO2 SLP156 T01890139
+ Add Your Business

M17 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
RY 18/36 MIRL DUSK-2330; AFT 2330 ACTVT - CTAF.
UNICOM 123.0

Approach

SPRINGFIELD APPROACH 124.95

Departure

SPRINGFIELD DEPARTURE 124.95

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSGF (22nm)
Tue, 3/3 5:23 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 11:00 PM CST
Broken 6,000'
6sm
190° 8kts
VFR
11:00 PM CST - 6:00 AM CST
Broken 8,000'
6sm
010° 6kts
MVFR
3:00 AM CST - 6:00 AM CST
Thunderstorm and Rain
Overcast 2,500'
4sm
Calm
MVFR
6:00 AM CST - 10:00 AM CST
Showers and Rain
Overcast 3,000'
6sm
180° 5kts
MVFR
Temporary 6:00 AM CST - 10:00 AM CST
Thunderstorm and Rain
Overcast 1,500'
4sm
Calm
IFR
Temporary 10:00 AM CST - 2:00 PM CST
Thunderstorm and Rain
Overcast 700'
4sm
Calm
IFR
10:00 AM CST - 6:00 PM CST
Showers and Rain
Overcast 700'
6sm
240° 7kts
TAF KSGF 032323Z 0400/0424 19008KT P6SM BKN060
   FM040500 01006KT P6SM BKN080
   PROB30 0409/0412 4SM TSRA OVC025CB
   FM041200 18005KT 6SM SHRA OVC030
   TEMPO 0412/0416 4SM TSRA OVC015CB
   FM041600 24007KT 6SM SHRA OVC007
   TEMPO 0416/0420 4SM TSRA OVC007CB
M17
EffectiveExpiresCategoryNOTAM
Domestic
2/18/26
0028Z
3/18/26
2359Z
!COU 02/309 M17 OBST TOWER LGT (ASR 1291960) 372846.20N0933226.10W (11.6NM SW M17) 1374.7FT (264.8FT AGL) U/S 2602180028-2603182359
1/27/26
1602Z
3/31/26
2359Z
!COU 01/664 M17 OBST TOWER LGT (ASR 1331698) 372729.50N0931917.60W (8.34NM SSE M17) 1526FT (310FT AGL) U/S 2601271602-2603312359
No
MON-SAT 0800-1700
CITY OF BOLIVAR
BOX 9 345 S MAIN
BOLIVAR, MO 65613
Phone: 417-326-2489
KERRICK TWEEDY
4460 ARPT DR
BOLIVAR, MO 65613
Phone: 417-777-6800
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
RY 18/36 MIRL DUSK-2330; AFT 2330 ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 18/36

4000 ft. x 75 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 183°3°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 36' 05"N 37° 35' 25"N
Longitude 93° 20' 52"W 93° 20' 54"W
Elevation 1,092' 1,092'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.75° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1EXTENSIVE STUDENT PILOT TRAINING INVOF ARPT.
A110-3WILDLIFE & BIRDS ON & INVOF ARPT.
A110-4FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.
A16FAX: 417-777-5558
A70-100LLFUEL CREDIT CARD SYS 100 LL AND JET A 24 HRS AVAIL.
A81-APTRY 18/36 MIRL DUSK-2330; AFT 2330 ACTVT - CTAF.
E111PRVDD A CLEAR APCH TO EACH RY FOR A MINIMUM 34:1 GLIDE SLOPE AND A CLEAR TRANSITIONAL SFC FOR A 7:1 SLOPE.
BOLIVAR MUNI (IATA: M17) is a public airport located in BOLIVAR, MO, US.
