iFlightPlanner



...

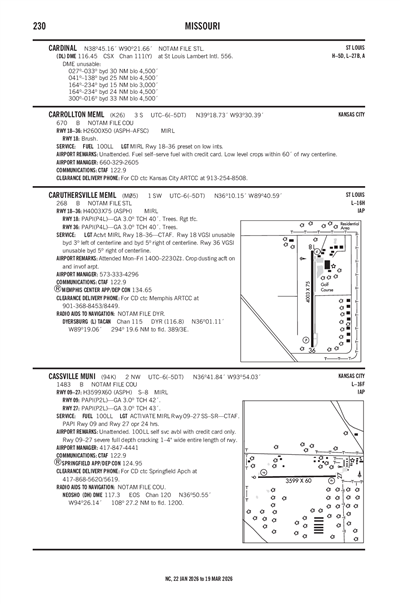

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

M05
CARUTHERSVILLE MEML
PublicPUB

1 miles SW of CARUTHERSVILLE, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 10' 09"N 89° 40' 35"W
268' MSL
1268' MSL
00E
None Listed
SAINT LOUIS (STL)
ST LOUIS
MEMPHIS (ZME)
10/31/24-11/28/24
KHKA (16nm) VFR
5:53 AM CST
Overcast 11,000'
10sm
56°F
47°F
30.09"Hg
090° 9kts
AO2 SLP188 60000 T01330083 10139 20128 58010 $
KHKA 091153Z AUTO 09009KT 10SM OVC110 13/08 A3009 RMK AO2 SLP188 60000 T01330083 10139 20128 58010 $
Add Your Business

M05 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMKL (51nm)
Sat, 11/9 5:35 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 11:00 AM CST
Light Showers and Rain
Broken 5,000'
Scattered 3,500'
6sm
090° 5kts
VFR
11:00 AM CST - 2:00 PM CST
Light Showers and Rain
Overcast 6,000'
Broken 3,500'
6sm
120° 5kts
MVFR
2:00 PM CST - 8:00 PM CST
Light Showers and Rain
Overcast 4,000'
Broken 2,000'
4sm
120° 5kts
IFR
8:00 PM CST - 2:00 AM CST
Showers in vicinity
Overcast 4,000'
Broken 900'
6sm
150° 5kts
IFR
2:00 AM CST - 6:00 AM CST
Light Showers and Rain
Overcast 800'
6sm
180° 6kts
KMKL 091135Z 0912/1012 09005KT 6SM -SHRA SCT035 BKN050
   FM091700 12005KT P6SM -SHRA BKN035 OVC060
   FM092000 12005KT 4SM -SHRA BKN020 OVC040
   FM100200 15005KT P6SM VCSH BKN009 OVC040
   FM100800 18006KT 6SM -SHRA OVC008
M05
Domestic
10/18/241147Z !STL 10/312 M05 RWY 36 PAPI UNUSABLE 2410181147-2504182111EST
FDC
3/18/242107Z !FDC 4/8518 M05 IAP CARUTHERSVILLE MEML, CARUTHERSVILLE, MO.
RNAV (GPS) RWY 36, AMDT 1B...
LNAV MDA 700/HAT 434.
2403182107-2603182107EST
8/2/231842Z !FDC 3/7067 M05 ODP CARUTHERSVILLE MEML, CARUTHERSVILLE, MO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG A...
TAKEOFF OBSTACLE NOTES: NOTE: RWY 18: TREE, FENCE, SMOKESTACK BEGINNING 14 FT FROM DER, 353 FT LEFT OF CENTERLINE, UP TO 301 FT MSL. TREES BEGINNING 1126 FT FROM DER, 263 FT LEFT OF CENTERLINE, UP TO 354 FT MSL. TREES BEGINNING 1132 FT FROM DER, 59 FT RIGHT OF CENTERLINE, UP TO 346 FT MSL. TREES BEGINNING 1379 FT FROM DER, 93 FT LEFT OF CENTERLINE, UP TO 356 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2308021842-2508021842EST
No
MON-FRI 0800-1630
CITY OF CARUTHERSVILLE
200 W 3RD ST.
CARUTHERSVILLE, MO 63830
Phone: 573-333-2142
JERRIE DAVIS
200 W 3RD ST.
CARUTHERSVILLE, MO 63830
Phone: 573-333-4296
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
STL
--
ACTVT MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Crop Dusting
Avionics

Runway 18/36

4003 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 10' 29"N 36° 09' 49"N
Longitude 89° 40' 36"W 89° 40' 35"W
Elevation 268' 266'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1CROP DUSTING ACFT ON & INVOF ARPT.
A110-2FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
CARUTHERSVILLE MEML (IATA: M05) is a public airport located in CARUTHERSVILLE, MO.
