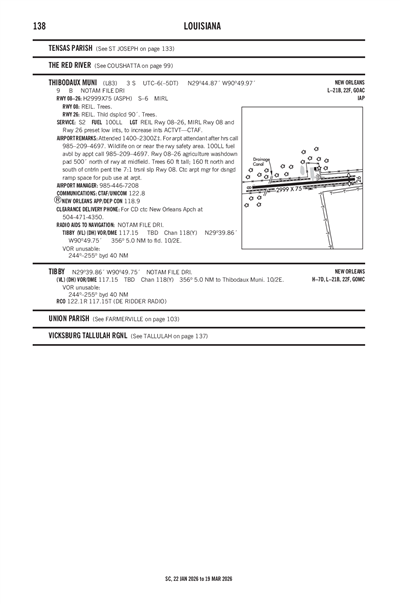

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

L83
THIBODAUX MUNI
PublicPUB

3 miles S of THIBODAUX, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 44' 52"N 90° 49' 58"W
9' MSL
1009' MSL
02E
100LL
DE RIDDER (DRI)
NEW ORLEANS
HOUSTON (ZHU)
10/31/24-11/28/24
KHUM (14nm) VFR
5:50 AM CST
Scattered 1,700'
7sm
75°F
72°F
29.91"Hg
080° 7kts
KHUM 091150Z 08007KT 7SM SCT017 24/22 A2991
Add Your Business

L83 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHUM (14nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
MVFR
6:00 AM CST - 12:00 PM CST
Broken 3,000'
6sm
080° 10kts
VFR
12:00 PM CST - 12:00 AM CST
Broken 3,500'
Scattered 2,000'
6sm
110° 14kts
Gusts 23kts
MVFR
6:00 PM CST - 12:00 AM CST
Light Showers and Rain
Broken 1,500'
5sm
Calm
IFR
12:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist
Broken 1,500'
Broken 800'
5sm
110° 7kts
KHUM 091120Z 0912/1012 08010KT P6SM BKN030
   FM091800 11014G23KT P6SM SCT020 BKN035
   PROB30 1000/1006 5SM -SHRA BKN015
   FM100600 11007KT 5SM -SHRA BR BKN008 BKN015
L83
Domestic
11/4/241602Z !DRI 11/060 L83 OBST TOWER LGT (ASR 1062192) 293632.40N0905343.60W (8.9NM SSW L83) 365.8FT (362.9FT AGL) U/S 2411041602-2503041602
11/3/242356Z !DRI 11/050 L83 OBST TOWER LGT (ASR 1022091) 294053.60N0904628.10W (5.0NM SE L83) 366.8FT (359.9FT AGL) U/S 2411032356-2503032356
11/1/242359Z !DRI 11/024 L83 OBST TOWER LGT (ASR 1236602) 294950.50N0905702.80W (7.9NM NW L83) 480.0FT (464.9FT AGL) U/S 2411012359-2412012359
11/1/242048Z !DRI 11/022 L83 OBST TOWER LGT (ASR 1062072) 294815.10N0905719.40W (7.2NM WNW L83) 344.2FT (336.3FT AGL) U/S 2411012048-2503012048
10/31/241509Z !DRI 10/464 L83 OBST TOWER LGT (ASR 1022141) 294007.40N0905836.00W (9.0NM WSW L83) 316.9FT (307.1FT AGL) U/S 2410311509-2411150400
10/26/240000Z !DRI 10/391 L83 OBST TOWER LGT (ASR 1059304) 294922.80N0905416.70W (5.8NM NW L83) 272.0FT (257.9FT AGL) U/S 2410260000-2411110400
10/11/241904Z !DRI 10/153 L83 OBST TOWER LGT (ASR 1028286) 295102.00N0905448.00W (7.4NM NW L83) 315.3FT (307.4FT AGL) U/S 2410111904-2412112359
10/11/241903Z !DRI 10/152 L83 OBST TOWER LGT (ASR 1028285) 295106.00N0905449.00W (7.4NM NW L83) 314.6FT (307.7FT AGL) U/S 2410111903-2412112359
10/11/241902Z !DRI 10/151 L83 OBST TOWER LGT (ASR 1028284) 295110.00N0905450.00W (7.5NM NW L83) 314.3FT (307.4FT AGL) U/S 2410111902-2412112359
FDC
8/9/231540Z !FDC 3/1006 L83 IAP THIBODAUX MUNI, THIBODAUX, LA.
VOR OR GPS-A, AMDT 1C...
PROCEDURE NA AT NIGHT.
2308091540-2509301540EST
No
0800-1700
FOR ARPT ATND AFT HRS CALL 985-209-4697.
CITY OF THIBODAUX
PO BOX 5418
THIBODAUX, LA 70302-5418
Phone: 985-446-7218
SARAH ARCENAUX
PO BOX 5418
THIBODAUX, LA 70302-5418
Phone: 985-446-7208
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
DRI
--
REIL RWY 08/26; MIRL RWY 08/26 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Crop Dusting
Annual Surveying

Runway 08/26

2999 ft. x 75 ft.
ASPH
Good
NONE
MED

6,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 84°264°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 44' 50"N 29° 44' 54"N
Longitude 90° 50' 15"W 90° 49' 42"W
Elevation 7' 9'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2RWY 08/26 AGRICULTURE WASHDOWN PAD 500 FT NORTH OF RWY AT MIDFLD.
A110-3FOR CD CTC NEW ORLEANS APCH AT 504-471-4350.
A110-4TREES 60 FT TALL; 160 FT NORTH AND SOUTH OF CNTRLN PENT THE 7:1 TRSNL SLP RWY 08.
A110-5WILDLIFE ON OR NEAR THE RWY SAFETY AREA
THIBODAUX MUNI (IATA: L83) is a public airport located in THIBODAUX, LA.
