L77
CHIRIACO SUMMIT
Public
PUB
1 miles NE of CHIRIACO SUMMIT, CA
View on
Map
Status
Operational
Coordinates
33° 39' 53"N
115° 42' 37"W
Elevation
1711' MSL
Pattern Alt
2711' MSL
Mag Variation
13E
Fuel
None Listed
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
L77 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

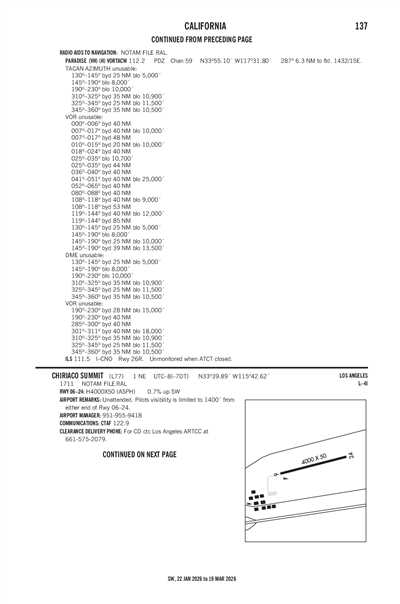

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
No TAF is available for this location.
L77
Domestic
1/14/25
2203Z
!RAL 01/098 L77 OBST TOWER LGT (ASN 2011-AWP-6797-OE) 333904N1154255W (0.9NM SSW L77) 2289FT (162FT AGL) U/S 2501142203-2501292203
ATC Tower
No
Attendance
UNATNDD
Owner
COUNTY OF RIVERSIDE
4080 LEMON STREET, 14TH FLOOR
RIVERSIDE, CA 92501
Phone: 951-955-9722
Manager
ANGELA JAMISON
4080 LEMON STREET, 14TH FLOOR
RIVERSIDE, CA 92501
Phone: 951-955-9418
FSS
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
NOTAM
RAL
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 06/24
Dimensions
4000 ft. x 50 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 06
Runway 24
True Heading
79°
259°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
33° 39' 50"N
33° 39' 57"N
Longitude
115° 43' 01"W
115° 42' 14"W
Elevation
1,711'
1,681'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-1
PILOTS VISIBILITY IS LIMITED TO 1400 FT FROM EITHER END OF RY 06/24.
A110-2
FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
CHIRIACO SUMMIT (IATA: L77) is a public airport located in CHIRIACO SUMMIT, CA.
