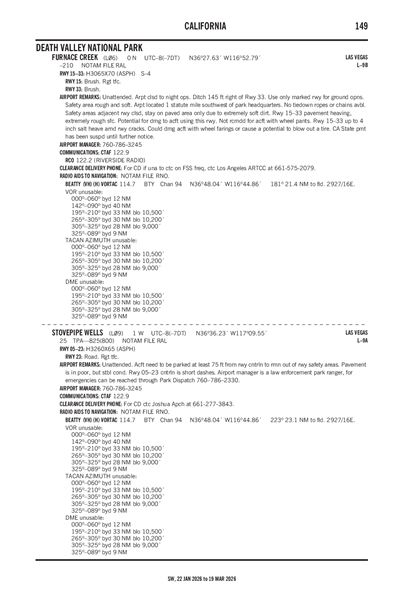

STOVEPIPE WELLS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

L09
Local L09
STOVEPIPE WELLS
PublicPUB

1 miles W of DEATH VALLEY NATIONAL PARK, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 36' 14"N 117° 09' 33"W
Elevation
25' MSL
Pattern Alt
825' MSL
Mag Variation
12°E
Declination
14°E
Fuel
None Listed
FSS
RIVERSIDE (RAL)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KO26 (43nm) VFR
5:55 PM PST
Clear
10sm
54°F
34°F
29.90"Hg
310° 4kts
A01
METAR KO26 050155Z AUTO 31004KT 10SM CLR 12/01 A2990 RMK A01
+ Add Your Business

L09 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KNID (61nm)
Wed, 3/4 3:30 PM PST
Wed, 3/4 3:00 PM PST - Thu, 3/5 3:00 PM PST
VFR
3:00 PM PST - 3:00 AM PST
Few 25,000'
Few 16,000'
6sm
29.82"Hg
260° 12kts
Moderate, In Cloud, Occasional: 9,000 - 18,000'
Moderate, Clear Air, Occasional: 9,000 - 9,000'
VFR
Temporary 6:00 PM PST - 12:00 AM PST
No Clouds
N/A
250° 18kts
Gusts 25kts
VFR
3:00 AM PST - 3:00 PM PST
Few 22,000'
Few 15,000'
6sm
29.85"Hg
330° 15kts
Moderate, Clear Air, Occasional: 9,000 - 9,000'
Moderate, In Cloud, Occasional: 9,000 - 18,000'
LIFR
Temporary 6:00 AM PST - 12:00 PM PST
No Clouds
0.26sm
350° 18kts
Gusts 25kts
TAF KNID 0423/0523 26012KT 9999 FEW160 FEW250 520009 540909 QNH2982INS
   TEMPO 0502/0508 25018G25KT
   FM051100 33015KT 9999 FEW150 FEW220 520009 540909 QNH2984INS
   TEMPO 0514/0520 35018G25KT AUTOMATED SENSOR METWATCH 0423 TIL 0515 TX19/0522Z TN04/0514Z FS30217 Z TN12/0511Z
L09
No NOTAM Available
No
UNATNDD
US DEPT OF INTERIOR/PARK SVC
DEATH VALLEY NATIONAL PARK
DEATH VALLEY, CA 92328
Phone: 760-786-3245
ROB WISSINGER
DEATH VALLEY NATIONAL PARK
DEATH VALLEY, CA 92328
Phone: 760-786-3245
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
RAL
--
--
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

3260 ft. x 65 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 53°233°
Traffic Pattern Left Right
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 36° 36' 04"N 36° 36' 24"N
Longitude 117° 09' 49"W 117° 09' 17"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1ACFT NEED TO BE PARKED AT LEAST 75 FT FROM RWY CNTRLN TO RMN OUT OF RWY SAFETY AREA.
A110-2FOR CD CTC JOSHUA APCH AT 661-277-3843.
A14AIRPORT MANAGER IS A LAW ENFORCEMENT PARK RANGER, FOR EMERGENCIES CAN BE REACHED THROUGH PARK DISPATCH 760-786-2330
A16AFTER HOURS NUMBER 760-786-2330
A33-05/23_CONDPAVEMENT IS IN POOR, BUT STBL COND.
A42-05_MARK05/23 CNTRLN IS SHORT DASHES.
A58-23+4' DIKE 180' FM THR; +5' BRUSH 0' FM THR 40' R.
STOVEPIPE WELLS (IATA: L09) is a public airport located in DEATH VALLEY NATIONAL PARK, CA, US.
