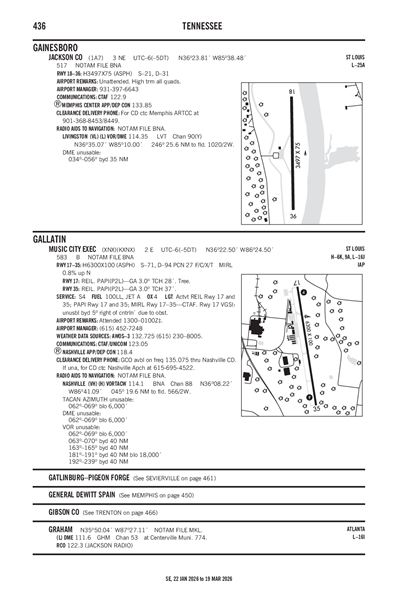

MUSIC CITY EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KXNX
ICAO KXNXLocal XNX
MUSIC CITY EXEC
PublicPUB

2 miles E of GALLATIN, TN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 22' 30"N 86° 24' 30"W
Elevation
583' MSL
Pattern Alt
1583' MSL
Mag Variation
4°W
Declination
2°W
Fuel
JET A, 100LL
FSS
NASHVILLE (BNA)
Sectional
ST LOUIS
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KXNX VFR
9:00 PM CST
Broken 3,900'
10sm
63°F
55°F
30.17"Hg
170° 7kts
A01
METAR KXNX 040300Z AUTO 17007KT 10SM BKN039 17/13 A3017 RMK A01
+ Add Your Business

KXNX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 132.725
(615) 230-8005

Common

CTAF 123.05
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
UNICOM 123.05

Approach

NASHVILLE APPROACH 118.4

Departure

NASHVILLE DEPARTURE 118.4

Flight Service

Ground Communication Outlet 135.075
GCO AVBL ON FREQ 135.075 THRU NASHVILLE CD. IF UNA, FOR CD CTC NASHVILLE APCH AT 615-695-4522.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBNA (21nm)
Tue, 3/3 5:20 PM CST
Tue, 3/3 6:00 PM CST - Thu, 3/5 12:00 AM CST
VFR
6:00 PM CST - 8:00 PM CST
Broken 25,000'
6sm
160° 12kts
VFR
8:00 PM CST - 8:00 AM CST
Broken 3,500'
6sm
180° 9kts
MVFR
8:00 AM CST - 1:00 PM CST
Broken 2,500'
6sm
200° 10kts
Gusts 18kts
VFR
1:00 PM CST - 5:00 PM CST
Scattered 3,000'
6sm
210° 12kts
Gusts 20kts
VFR
5:00 PM CST - 12:00 AM CST
Scattered 25,000'
6sm
200° 9kts
TAF KBNA 032320Z 0400/0506 16012KT P6SM BKN250
   FM040200 18009KT P6SM BKN035
   FM041400 20010G18KT P6SM BKN025
   FM041900 21012G20KT P6SM SCT030
   FM042300 20009KT P6SM SCT250
KXNX
EffectiveExpiresCategoryNOTAM
Domestic
2/14/26
0550Z
3/1/26
0450Z
!BNA 02/342 XNX OBST TOWER LGT (ASR 1251647) 363032.80N0861660.00W (10.1NM NE XNX) 1207.7FT (259.8FT AGL) U/S 2602140550-2603010450
1/25/26
1143Z
2/25/26
2359Z
!BNA 01/625 XNX OBST TOWER LGT (ASR 1041307) 362805.20N0862841.30W (6.5NM NNW XNX) 1505.9FT (500.0FT AGL) U/S 2601251143-2602252359
1/15/26
1808Z
12/31/26
2359Z
!BNA 01/274 XNX COM GND COM OUTLET 135.075 U/S 2601151808-2612312359
1/15/26
1807Z
7/15/26
2359Z
!BNA 01/273 XNX AD AP ABN NOT STD GREEN ONLY 2601151807-2607152359
12/9/25
1423Z
6/26/26
2359Z
!BNA 12/185 XNX OBST POWER LINE LGT (ASN 2021-ASO-16758-OE) 361840N0862924W (5.6NM SW XNX) 647FT (202FT AGL) U/S 2512091423-2606262359
12/4/25
2048Z
Runway!BNA 12/100 XNX RWY 35 PAPI U/S 2512042048-2604222111EST
12/4/25
2044Z
Runway!BNA 12/097 XNX RWY 35 RWY END ID LGT U/S 2512042044-2604222111EST
12/4/25
2042Z
Runway!BNA 12/096 XNX RWY 17 RWY END ID LGT U/S 2512042042-2604222111EST
11/30/25
0135Z
2/27/26
0500Z
!BNA 11/642 XNX OBST TOWER LGT (ASR 1042465) 362140.00N0863925.60W (12.1NM W XNX) 1032.2FT (256.9FT AGL) U/S 2511300135-2602270500
11/21/25
0931Z
5/31/26
2359Z
!BNA 11/498 XNX OBST TOWER LGT (ASN 2021-ASO-16757-OE) 361849N0862931W (5.5NM SW XNX) 647FT (202FT AGL) U/S 2511210931-2605312359
9/29/25
1842Z
10/1/26
2359Z
!BNA 09/618 XNX OBST STACK LGT (ASN 2024-ASO-6789-OE) 361857N0862402W (3.6NM S XNX) 976FT (500FT AGL) U/S 2509291842-2610012359
9/17/25
1859Z
3/31/26
2359Z
!BNA 09/373 XNX OBST STACK (ASN UNKNOWN) 361854N086243W (3.68NM S XNX) 976FT (500FT AGL) U/S 2509171859-2603312359
7/2/25
1244Z
6/28/26
2359Z
!BNA 07/034 XNX OBST TOWER LGT (ASN 2013-ASO-3906-OE) 361844N0862337W (3.8NM S XNX) 650FT (202FT AGL) U/S 2507021244-2606282359
7/2/25
1225Z
6/28/26
2359Z
!BNA 07/033 XNX OBST TOWER LGT (ASN 2013-ASO-3907-OE) 361834N0862323W (4.0NM SSE XNX) 659FT (202FT AGL) U/S 2507021225-2606282359
FDC
9/12/25
1535Z
!FDC 5/2727 XNX IAP MUSIC CITY EXEC, GALLATIN, TN.
VOR-A, AMDT 3A...
PROCEDURE NA.
2509121535-2604241535EST
No
0700-1900
MUSIC CITY EXECUTIVE AIRPORT AUTH
1475 AIRPORT ROAD
GALLATIN, TN 37066
Phone: 615-452-7248
JEFF DUNHAM
1475 AIRPORT ROAD
GALLATIN, TN 37066
Phone: (615) 452-7248
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 17/35

6300 ft. x 100 ft.
ASPH
Excellent
NONE
MED
27/F/C/X/T
71,000lbs
94,000lbs
--
--
  Runway 17 Runway 35
True Heading 171°351°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 23' 01"N 36° 21' 60"N
Longitude 86° 24' 36"W 86° 24' 24"W
Elevation 583' 532'
Threshold Crossing Height 28 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-100GCO AVBL ON FREQ 135.075 THRU NASHVILLE CD. IF UNA, FOR CD CTC NASHVILLE APCH AT 615-695-4522.
A43-17UNUSBL BYD 5 DEGS RIGHT OF CNTRLN DUE TO OBST.
A81-APTACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
MUSIC CITY EXEC (ICAO: KXNX, IATA: XNX) is a public airport located in GALLATIN, TN, US.
