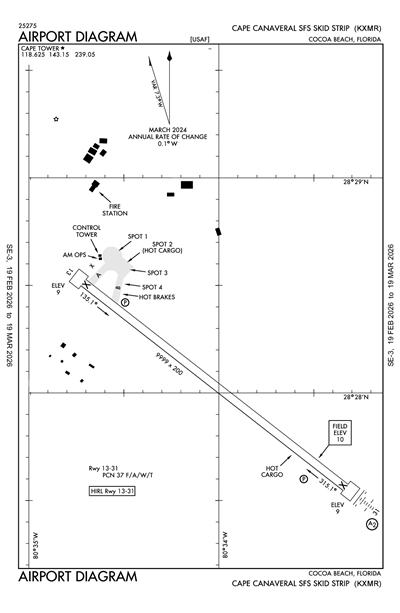

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KXMR
CAPE CANAVERAL SPACE FORCE STATION SKID STRIP
PrivatePVT

7 miles NE of COCOA BEACH, FL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 28' 03"N 80° 33' 60"W
10' MSL
1010' MSL
07W
None Listed
SAINT PETERSBURG (PIE)
JACKSONVILLE
MIAMI (ZMA)
10/31/24-11/28/24
KXMR VFR
6:55 AM EST
Clear
10sm
69°F
68°F
29.98"Hg
050° 3kts
AO2 SLP155 T02080199 10222 20201 52011 $
KXMR 091155Z AUTO 05003KT 10SM CLR 21/20 A2998 RMK AO2 SLP155 T02080199 10222 20201 52011 $

KXMR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ASOS

ASOS
119.325

Tower

LCL/P
118.625
LCL/P
143.15
LCL/S
126.2

Other

PTD
139.3

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KTIX (12nm)
Sat, 11/9 6:20 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 10:00 AM EST
Showers in vicinity
Scattered 25,000'
Scattered 3,000'
6sm
VRB° 4kts
VFR
10:00 AM EST - 7:00 PM EST
Showers in vicinity
Broken 25,000'
Broken 5,000'
Scattered 2,000'
6sm
080° 10kts
Gusts 15kts
VFR
7:00 PM EST - 7:00 AM EST
Scattered 18,000'
Scattered 3,500'
6sm
080° 7kts
KTIX 091120Z 0912/1012 VRB04KT P6SM VCSH SCT030 SCT250
   FM091500 08010G15KT P6SM VCSH SCT020 BKN050 BKN250
   FM100000 08007KT P6SM SCT035 SCT180
KXMR
Military
11/5/240230Z OBST 250 FT FLAGGED/LIGHTED CRANE & BOOM OPERATING (LZ-1) AT 28 29 08.63N 80 32 34.59W.
10/29/241419Z !KXMR V0253/24 XMR AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN-A RWY 13 31 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. MISSED APPROACH REQUIRES USE OF RNAV OR ATC RADAR MONITORING. WHEN CIRCLING TO RWY 13, 31 AT NIGHT, OPERATIONAL VGSI REQUIRED, REMAIN ON OR ABOVE VGSI GLIDEPATH UNTIL THRESHOLD. CIRCLING: CAT A 760-1 750 (800-1); CAT B 800-1 790 (800-1); CAT C 800-2 1/4 790 (800-2 1/4); CAT D 800-2 1/2 790 (800-2 1/2); CAT E 940-3 930 (1000-3). 2410291419-2502072359
10/29/241416Z !KXMR V0252/24 XMR AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 31 STRAIGHT-IN RWY 31 AT NIGHT, OPERATIONAL VGSI REQUIRED, REMAIN ON OR ABOVE VGSI GLIDEPATH UNTIL THRESHOLD. USAF ONLY: WHEN VGSI INOP, STRAIGHT-IN RWY 31 AUTHORIZED AT NIGHT WITH AIRCREW COMMAND APPROVAL. WHEN CIRCLING TO RWY 13 AT NIGHT, OPERATIONAL VGSI REQUIRED, REMAIN ON OR ABOVE VGSI GLIDEPATH UNTIL THRESHOLD. LNAV RWY 31 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. LNAV MDA: CAT AB 700-1 690 (700-1); CAT CDE 700-2 690 (700-2). CIRCLING: CAT AB 700-1 690 (700-1); CAT C 700-2 690 (700-2); CAT D 700-2 1/4 690 (700-2 1/4); CAT E 760-2 3/4 750 (800-2 3/4). 2410291416-2502072359
10/29/241413Z !KXMR V0251/24 XMR AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 13 STRAIGHT-IN RWY 13 AT NIGHT, OPERATIONAL VGSI REQUIRED, REMAIN ON OR ABOVE VGSI GLIDEPATH UNTIL THRESHOLD. USAF ONLY: WHEN VGSI INOP, STRAIGHT-IN RWY 13 AUTHORIZED AT NIGHT WITH AIRCREW COMMAND APPROVAL. WHEN CIRCLING TO RWY 31 AT NIGHT, OPERATIONAL VGSI REQUIRED, REMAIN ON OR ABOVE VGSI GLIDEPATH UNTIL THRESHOLD. LNAV RWY 13 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. LNAV MDA: CAT AB 580-1 570 (600-1); CAT CDE 580-1 5/8 570 (600-1 5/8). CIRCLING: CAT A 580-1 570 (600-1); CAT B 620-1 610 (700-1); CAT C 620-1 3/4 610 (700-1 3/4); CAT D 620-2 610 (700-2); CAT E 760-2 3/4 750 (800-2 3/4). 2410291413-2502072359
10/29/241200Z OBST OBST 250' NUMEROUS LIGHTED AND FLAGGED CRANES OPERATING WITHIN OPERATING AREA 28.44904⁰ N, 80.58721⁰ W SECOND LOCATION ? 28.44913⁰ N, 80.58736⁰ W (0700L - 1730L). CRANE WILL BE LOWERED TO 180' AT NIGHT.
10/28/241754Z !KXMR M0160/24 XMR RWY 31 ALS U/S 2410281754-2501242100
10/28/241516Z AERODROME CONST AREA : MEN AND EQUIPMENT 1,150 FT EAST OF RWY31 TEMPORARY DISPLACED THRESHOLD. USE CAUTION
10/28/241506Z RWY 13/31 NEW TAKEOFF DISTANCE AVAILABLE (TODA) AND LANDING DISTANCE AVAILABLE (LDA) 7,850 FEET
10/28/241452Z AERODROME RESTRICTED TO DAYTIME OPERATIONS/VFR WEATHER CONDITIONS
10/28/241434Z RWY 13/31 OPERATIONS RESTRICTED TO RWY31 DEPARTURE AND ARRIVAL ONLY
10/28/241424Z RWY 31 DISPLACED. NEW RUNWAY DISTANCE IS 7,850 FEET. USE CAUTION
10/28/241421Z RWY 31 LIGHTED BARRICADES 1150 FEET EAST OF RUNWAY 31 TEMPORARY DISPLACED THRESHOLD.
10/28/241414Z RWY 31 PAPI LEFT SIDE UNSERVICEABLE
Yes
MON-FRI IRREG
CLSD SAT, SUN AND HOLIDAY. SEE FLIP AP/1 SUPPLEMENTARY INFO.
USAF
PATRICK AFB
COCOA BEACH, FL 32925
Phone: V467-5941
CHIEF OF AFLD MANAGEMENT
PATRICK AFB
COCOA BEACH, FL 32925
Phone: 321-853-4242
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 13/31

9999 ft. x 200 ft.

ASPH
GRVD
HIGH
37 /F/A/W/T
--
--
--
--
  Runway 13 Runway 31
True Heading 128°308°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 28' 34"N 28° 27' 33"N
Longitude 80° 34' 44"W 80° 33' 16"W
Elevation 9' 9'
Threshold Crossing Height 79 ft. AGL 79 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights SALS
Centerline Lights No No
Runway End Identifier Lights No No
A110-1SERVICE LGT: RWY 31 APCH LGT NSTD SALS, 1000'.
A110-11TRAN ALERT: CHIP DETECTION INSP RQRD BY F16'S NOT AVBL.
A110-12CSTMS AVBL: PN RQR.
A110-15MISC: OBSN AUTOMATED, FMQ-19 OBSN WX EQUIP IN USE H24. WX OBSN/FCST AVBL H24 VIA FONE DSN 467-8484, C321-853-8484. LTD PRK. NO CLASSIFIED MATERIALS STOR AVBL.
A110-2JASU: 1(AM32A-60A) 1(A/M32A-86D).
A110-20MISC: AM OPS DSN 467-4241, COMM (321) 853-4241, FAX COMM (321) 853-1521.
A110-21RY 13/31 DOES NOT HAVE PAVED OVERRUNS.
A110-23RSTD: PPR. PPR VALID +/- 30 MIN PRIOR/AFTER ETA, CHANGES MUST BE COORDINATED. TWR MANNED BASED ON PPR. CTC 45 RANS/DOS, CCAFS, FL DSN 467-5941, C321-853-5941 FOR PPR.
A110-24EARLY/LATE ARR/DEP MUST BE RECOORDINATED.
A110-25CAUTION: NVD OPS MAY BE IN PROGRESS SS-SR. CHECK LCL NOTAMS FOR CURRENT OPS.
A110-26PMSV METRO: CALL CAPE METRO; TRML WX FCST NOT ISSUED FOR KXMR, SEE KCOF.
A110-27MISC: RY GROOVED, EXC 300 FT X 300 FT STRESSED TURNAROUND EA END.
A110-28RSTD: CREW TRANSPORT/CARGO ONLOAD/OFFLOAD SUPPORT LTD TO 1400-2000Z++ MON-FRI. CTC: DSN 854-5631, C321-494-5631 WITH REQUESTED REQUIREMENTS.
A110-29TRAN ALERT: MANNED BASED ON PPR. SVC AVBL 1100-0400Z MON-FRI, CLSD SAT, SUN AND HOL. OT RQR 10 DAYS ADVANCE NOTICE. CTC DSN 854-5425/26, C321-494-5425/26 WITH REQ FOR SVC.
A110-3FUEL: J8 1200 - 2200Z++MON-FRI, OTR TIMES RQR 5 DAYS ADVN NOTICE. DUE TO LTD MANNING, AIRCREW ASSISTANCE IS RQRD WITH RFL OPS.
A110-30FUEL: A++.
A110-31FLUID - LOX AVBL WITH 2 DAY PN.
A110-33CAUTION: USAF ARFF SET 3. 3 ARFF VEHICLE WITH 5000 GALS OF AGENT.
A110-34FOR CD OR TO CNL IFR WHEN ATCT CLSD, CTC ORLANDO APCH AT 407-852-7500.
A110-3550 FT WINGTIP CLNC BTN LRG FRAME ACFT NOT AVBL BTN PRKG SPOT 2 AND 3. MNM WING-TIP SEPN RDCD TO 30 FT. MAJCOM WAIVER ON FILE.
A110-5RSTD: ALL ACFT WILL CTC APP BEFORE PROCEEDING TO CAPE CANAVERAL. LDG AND TKOF NOT AUTH UNLESS CAPE TWR IS OPR.
A110-6RSTD: OFFL BUS OR HI PRIORITY MSN ACFT CTC 1 ROPS/DOS, CCSFS, FL, DSN 467-5941, C321-853-5941 FOR PPR. PPR FOR OPR 1230-2100Z++, MON-FRI RQR 24 HR PN, PPR OT RQR 5 DAY PN. SKID STRIP OPR HR ARE DETERMINED BY PPR NR FOR SPECIFIED OPR.
A110-7RSTD: NO ARR OR DEP WITHIN 1 HR OF CAPE CANAVERAL LAUNCH OPR. LDG AND TKOF NOT AUZD UNLESS CAPE TWR IS OPR. ALL ACFT WILL CTC APP BEFORE PROCEEDING TO CAPE CANAVERAL. FLT IS RSTD TO 1000' ABV AND WITHIN A HORIZONTAL RAD OF 2000' FR ANY SPACE LAUNCH COMPLEX.
A110-8RSTD: IF OPR NECESSITY RQR FLT CLOSER THAN THESE RSTD, COORD WITH THE CUSTODIAN OF THE AFFECTED COMPLEX SHALL BE ACCOMPLISHED NO LATER THAN 24 HR PRIOR TO FLT.
A110-9CAUTION: MANY OBST IN VCNTY OF RWY. BIRD HAZ. USE EXTREME CAUTION FOR EXTENSIVE UAS OPS IN VCNTY.
CAPE CANAVERAL SPACE FORCE STATION SKID STRIP (ICAO: KXMR, IATA: XMR) is a private airport located in COCOA BEACH, FL.
