KWRL
WORLAND MUNI
PublicPUB

3 miles S of WORLAND, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 57' 46"N 107° 57' 02"W
4252' MSL
5252' MSL
13E
JET A, 100LL
CASPER (CPR)
CHEYENNE
SALT LAKE CITY (ZLC)
4/17/25-5/15/25
KWRL VFR
12:53 AM MDT
Light Rain
Overcast 4,600'
10sm
48°F
40°F
30.11"Hg
350° 3kts
AO2 SLP180 P0002 T00890044 402060072
KWRL 030653Z AUTO 35003KT 10SM -RA OVC046 09/04 A3011 RMK AO2 SLP180 P0002 T00890044 402060072
+ Add Your Business

KWRL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

ASOS

ASOS
307-347-4217
 135.475

FAA A/FD Pages

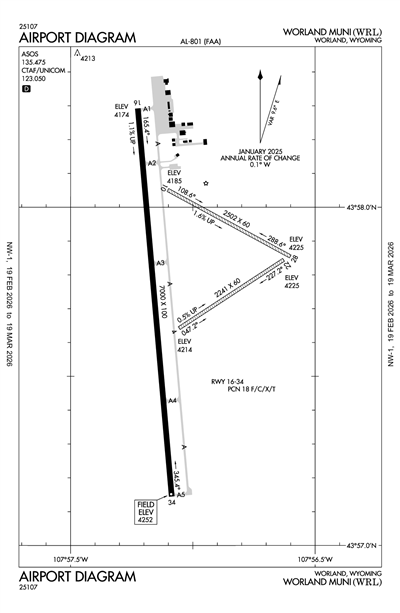

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KWRL
Mon, 6/2 11:20 PM MDT
Tue, 6/3 12:00 AM MDT - Wed, 6/4 12:00 AM MDT
VFR
12:00 AM MDT - 10:00 AM MDT
Light Rain
Broken 8,000'
Scattered 4,000'
6sm
320° 10kts
VFR
10:00 AM MDT - 4:00 PM MDT
Broken 10,000'
Scattered 5,000'
6sm
300° 8kts
VFR
4:00 PM MDT - 12:00 AM MDT
Broken 15,000'
Scattered 10,000'
6sm
230° 6kts
KWRL 030520Z 0306/0406 32010KT 6SM -RA SCT040 BKN080
   FM031600 30008KT P6SM SCT050 BKN100
   FM032200 23006KT P6SM SCT100 BKN150
KWRL
Domestic
5/19/250251Z !WRL 05/010 WRL COM REMOTE COM OUTLET 122.4 U/S 2505190251-2505262000EST
5/7/251418Z !WRL 05/006 WRL RWY 04/22 CLSD 2505071418-2506302300
5/7/251417Z !WRL 05/005 WRL RWY 10/28 CLSD 2505071417-2506302300
5/7/251300Z !WRL 05/002 WRL OBST ASPHALT PLANT (ASN 2025-ANM-2335-NRA) 435826N1075726W (600FT NW APCH END RWY 16) 4285FT (40FT AGL) LGTD NOT FLAGGED 2505071300-2506302300
5/7/251300Z !WRL 05/001 WRL TWY A, A2, A3, A4, A5 CLSD 2505071300-2506302300
4/22/251153Z !WRL 04/013 WRL RWY 34 RWY END ID LGT U/S 2504221153-2510222111EST
4/3/251232Z !WRL 04/004 WRL RWY 34 PAPI UNUSABLE 2504031232-2510032111EST
FDC
5/19/251145Z !FDC 5/2520 WRL ODP WORLAND MUNI, WORLAND, WY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKEOFF MINIMUMS: RWY 16, 300-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 215 FT/NM TO 4500. ALL OTHER DATA REMAINS AS PUBLISHED. 2505191145-2705191145EST
5/7/251416Z !FDC 5/7125 WRL ODP WORLAND MUNI, WORLAND, WY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RLY VOR/DME OUT OF SERVICE. 2505071416-2508061416EST
No
MON-FRI 0700-1600
CITY OF WORLAND
P.O. BOX 226
WORLAND, WY 82401
Phone: 307-347-2486
LYNN MURDOCH
1438 AIRPORT ROAD
WORLAND, WY 82401
Phone: 307-347-8977
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
WRL
--
ACTVT REIL RWY 16 & 34; PAPI RWY 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Air Ambulance
Pilot Instruction

Runway 04/22

2241 ft. x 60 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 57°237°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 57' 39"N 43° 57' 51"N
Longitude 107° 57' 03"W 107° 56' 38"W
Elevation 4,214' 4,225'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

2502 ft. x 60 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 118°298°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 58' 03"N 43° 57' 51"N
Longitude 107° 57' 06"W 107° 56' 36"W
Elevation 4,185' 4,225'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

7000 ft. x 100 ft.
ASPH
Good
PFC
MED
18 /F/C/X/T
50,000lbs
70,000lbs
--
--
  Runway 16 Runway 34
True Heading 175°355°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 58' 18"N 43° 57' 09"N
Longitude 107° 57' 13"W 107° 57' 05"W
Elevation 4,174' 4,252'
Threshold Crossing Height 41 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1WIND PERMITTING LAND RY 16.
A110-3RYS 04/22 & 10/28 CLSD OCT 30 - MAR 30 YEARLY.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
WORLAND MUNI (ICAO: KWRL, IATA: WRL) is a public airport located in WORLAND, WY.
