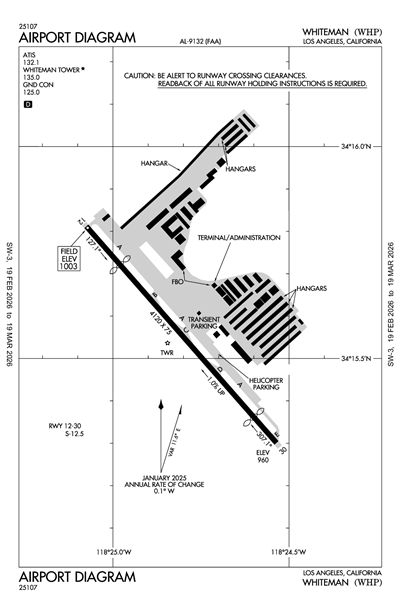

WHITEMAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KWHP
ICAO KWHPIATA WHPLocal WHP
WHITEMAN
PublicPUB

1 miles E of LOS ANGELES, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 15' 34"N 118° 24' 48"W
Elevation
1003' MSL
Pattern Alt
2003' MSL
Mag Variation
12°E
Declination
14°E
Fuel
JET A, 100LL
FSS
HAWTHORNE (HHR)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KWHP VFR
7:00 PM PST
Sky Clear
10sm
66°F
52°F
30.01"Hg
Calm
METAR KWHP 040300Z 00000KT 10SM SKC 19/11 A3001
+ Add Your Business

KWHP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 132.1
(818) 899-9820
AWOS-3PT 132.1
(818) 899-9820

Common

CTAF 135.0
UNICOM 122.95

Ground

WHITEMAN GROUND 125.0
0800-2000

Tower

WHITEMAN TOWER 135.0
0800-2000

Approach

SOCAL APPROACH 120.4
Initial Contact - VNY 280-BUR 050, NORTH
SOCAL APPROACH 134.2
Initial Contact - 160-280 VNY, WEST

Departure

SOCAL DEPARTURE 120.4
Initial Contact - VNY 280-BUR 050, NORTH
SOCAL DEPARTURE 134.2
Initial Contact - 160-280 VNY, WEST

Other

CLASS C 120.4
VNY 280-BUR 050
CLASS C 134.2
160-280 VNY

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KBUR (4nm)
Tue, 3/3 3:57 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 7:00 PM PST
Scattered 25,000'
6sm
170° 8kts
VFR
7:00 PM PST - 5:00 AM PST
Scattered 25,000'
6sm
VRB° 3kts
IFR
5:00 AM PST - 10:00 AM PST
Mist
Broken 600'
4sm
140° 4kts
VFR
10:00 AM PST - 4:00 PM PST
Broken 25,000'
6sm
180° 8kts
TAF KBUR 032357Z 0400/0424 17008KT P6SM SCT250
   FM040300 VRB03KT P6SM SCT250
   FM041300 14004KT 4SM BR BKN006
   FM041800 18008KT P6SM BKN250
KWHP
EffectiveExpiresCategoryNOTAM
Domestic
1/26/26
2134Z
1/26/27
2359Z
!WHP 01/015 WHP OBST STACK (ASN UNKNOWN) 341439N1182336W (2NM SE WHP) 1165FT (250FT AGL) NOT LGTD 2601262134-2701262359
FDC
12/12/25
0136Z
!FDC 5/8379 WHP ODP WHITEMAN, LOS ANGELES, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
WHITEMAN ONE DEPARTURE...
TAKE-OFF MINIMUMS: RWY 12, 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB OF 385 FEET PER NM TO 1400. TEMPORARY CRANES BEGINNING 6040FT FROM DER, 875FT LEFT OF CENTERLINE, UP TO 335FT AGL/1250MSL (2024-AWP-3266/67/68/69-OE).
ADD TAKEOFF OBSTACLE NOTE: RWY 12, TEMPORARY CRANES BEGINNING 6040FT FROM DER, 875FT LEFT OF CENTERLINE, UP TO 335FT AGL/1250MSL (2024-AWP-3266/67/68/69-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2512120136-2607242355EST
Yes
ALL
LOS ANGELES CO
P.O. BOX 1460
ALHAMBRA, CA 91802
Phone: 626-300-4600
ALVARO ESCOBEDO
10000 AIRPARK WAY
PACOIMA, CA 91331
Phone: 818-896-5271
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
WHP
--
WHEN ATCT CLSD, ARPT LGT OPRS CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
Major
Major
High Pressure
High Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 12/30

4120 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 139°319°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 15' 49"N 34° 15' 18"N
Longitude 118° 25' 05"W 118° 24' 32"W
Elevation 1,003' 960'
Threshold Crossing Height 54 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3.8° 3.8°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1HELICOPTER OPNS 2500' MSL (1500' AGL) AND BELOW.
A110-10FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-11VOLUNTARY CURFEW IN EFCT. ALL ACFT OPRS, EXCP FOR FLTS RELATED TO EMERG, LIFESAVING, FIREFIGHTING, LAW ENFORCEMENT, GOVT AGENCIES, AND SVCS TO THE PUBLIC SUCH AS NEWS MEDIA, ARE REQD TO AVOID CONDUCTING ACFT ARRS AND DEPS BTN 2200 AND 0600 DAILY.
A110-5POWER LINES SW OF RY PENETRATE 7:1 TRANSITIONAL SFC.
A110-6BIRDS ON AND INVOF ARPT.
A110-7(E125) INCLUDES 3 AMPHIBIANS.
A110-8AIRPORT CLOSED TO HELICOPTER TRAINING / PATTERN OPERATIONS 2000-0800.
A110-9DIRT INFIELD AREAS. HELICOPTERS ADVISED TO USE CARE TO PREVENT BLASTING DIRT AND DEBRIS ONTO MOVEMENT AREAS.
A13LA COUNTY CTC: PAUL MASELBAS, 626-300-4600 X4615.
A14ASSISTANT AMGR: ERNIE UMANA
A16AIR TRAFFIC MGR: 818-896-5555.
A43-12PAPI DOES NOT PRVD OBSTN CLNC BYD 5 NM FROM THLD.
A57-12APCH RATIO 30:1 TO DSPLCD THLD; APCH RATIO TO DSPLCD THLD OVER 33 FT BLDG 850 FT FM DSPLCD THLD 95 FT R 25:1.
A57-30APCH RATIO 22:1 TO DSPLCD THLD; APCH RATIO TO DSPLCD THLD OVER +35 FT TREE 488 FT FM DSPLCD THLD 110 FT R 13:1.
A58-12HAS + 6 FT FENCE 60 FT FM EOR AND ROAD 70 FT FM EOR 125 FT L TO R; +12 FT BLDG 135-200 FM FM EOR 20-50 FT L; +24 FT LIGHT STANDARD 140 FT FM EOR 45 FT R.
A58-30HAS 35 FT TREES 50 FT FM EOR 110 FT R; +6 FT FENCE 30 FT FM EOR 125 FT L TO R; ROAD 80 FT FM EOR 125 FT L TO R; +30 FT PLINES 160 FT FM EOR 125 FT L TO R; + 20 FT LIGHT 75 FT FM EOR 20 FT L.
A81-APTWHEN ATCT CLSD, ARPT LGT OPRS CONSLY.
WHITEMAN (ICAO: KWHP, IATA: WHP) is a public airport located in LOS ANGELES, CA, US.
