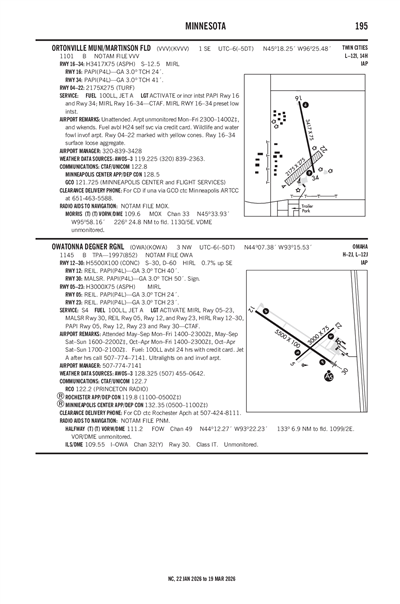

ORTONVILLE MUNI/MARTINSON FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVVV
ICAO KVVVLocal VVV
ORTONVILLE MUNI/MARTINSON FLD
PublicPUB

1 miles SE of ORTONVILLE, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 18' 15"N 96° 25' 29"W
Elevation
1101' MSL
Pattern Alt
2101' MSL
Mag Variation
2°E
Declination
5°E
Fuel
JET A, 100LL
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KVVV VFR
7:55 PM CST
Scattered 2,900'
10sm
39°F
37°F
30.15"Hg
Calm
AO2
METAR KVVV 040155Z AUTO 00000KT 10SM SCT029 04/03 A3015 RMK AO2
+ Add Your Business

KVVV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.225
(320) 839-2363

Common

CTAF 122.8
ACTVT OR INCR INTST PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF. MIRL RWY 16/34 PRESET LOW INTST.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 128.5
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 128.5/306.2 (WATERTOWN RCAG).

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KATY (39nm)
Tue, 3/3 7:59 PM CST
Tue, 3/3 8:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
Temporary 8:00 PM CST - 10:00 PM CST
Fog
Obscured
0.25sm
Calm
LIFR
8:00 PM CST - 12:00 AM CST
Mist
Broken 200'
2sm
VRB° 3kts
LIFR
12:00 AM CST - 10:00 AM CST
Freezing Fog
Broken 300'
0.5sm
200° 6kts
MVFR
10:00 AM CST - 12:00 PM CST
Mist
Scattered 25,000'
Scattered 600'
4sm
200° 10kts
VFR
12:00 PM CST - 6:00 PM CST
Few 1,000'
6sm
200° 11kts
TAF KATY 040159Z 0402/0424 VRB03KT 2SM BR BKN002
   TEMPO 0402/0404 1/4SM FG VV002
   FM040600 20006KT 1/2SM FZFG BKN003
   FM041600 20010KT 4SM BR SCT006 SCT250
   FM041800 20011KT P6SM FEW010
KVVV
EffectiveExpiresCategoryNOTAM
Domestic
6/12/25
1423Z
6/12/26
2359Z
Runway!VVV 06/007 VVV RWY 34 PAPI U/S 2506121423-2606122359
6/12/25
1422Z
6/12/26
2359Z
Runway!VVV 06/006 VVV RWY 16 PAPI U/S 2506121422-2606122359
6/12/25
1422Z
6/12/26
2359Z
Runway!VVV 06/005 VVV RWY 22 PAPI U/S 2506121422-2606122359
6/12/25
1422Z
6/12/26
2359Z
Runway!VVV 06/004 VVV RWY 04 PAPI U/S 2506121422-2606122359
FDC
12/9/25
0333Z
!FDC 5/6274 VVV IAP ORTONVILLE MUNI/MARTINSON FLD, ORTONVILLE, MN.
RNAV (GPS) RWY 34, AMDT 1...
LNAV MDA 1540/HAT 443 ALL CATS, VIS CAT C 1 1/4. CIRCLING CATS A/B MDA 1760/HAA 659.
2512090333-2712090333EST
No
UNATNDD
CITY OF ORTONVILLE
315 MADISON AVE
ORTONVILLE, MN 56278
Phone: 320-839-3428
CHARLEEN GROSSMAN
315 MADISON AVE
ORTONVILLE, MN 56278
Phone: 320-839-3428
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
VVV
--
ACTVT OR INCR INTST PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF. MIRL RWY 16/34 PRESET LOW INTST.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

2175 ft. x 275 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 47°227°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 17' 59"N 45° 18' 13"N
Longitude 96° 25' 41"W 96° 25' 18"W
Elevation 1,092' 1,095'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 16/34

3417 ft. x 75 ft.
ASPH
Poor
NONE
MED

12,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 169°349°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 18' 37"N 45° 18' 04"N
Longitude 96° 25' 33"W 96° 25' 23"W
Elevation 1,101' 1,095'
Threshold Crossing Height 24 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.
A110-2WILDLIFE & WATERFOWL INVOF ARPT.
A110-3ARPT UNMON MON-FRI 1700-0800 & WKENDS.
A110-4FOR CD IF UNA VIA GCO CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A33-16/34_CONDLOOSE AGGREGATE.
A42-04_MARKYELLOW CONES.
A42-22_MARKYELLOW CONES.
A70-100LLFUEL AVBL H24 SELF SVC VIA CREDIT CARD.
A81-APTACTVT OR INCR INTST PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF. MIRL RWY 16/34 PRESET LOW INTST.
ORTONVILLE MUNI/MARTINSON FLD (ICAO: KVVV, IATA: VVV) is a public airport located in ORTONVILLE, MN, US.
