iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVVS
JOSEPH A HARDY CONNELLSVILLE
PublicPUB

5 miles SW of CONNELLSVILLE, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 57' 33"N 79° 39' 27"W
1264' MSL
2264' MSL
08W
JET A, 100LL
ALTOONA (AOO)
CINCINNATI
CLEVELAND (ZOB)
4/17/25-5/15/25
KVVS VFR
12:55 PM EST
Clear
10sm
58°F
26°F
30.27"Hg
260° 9kts
Gusts 15kts
AO2 T01431033 10146 20027
METAR KVVS 041755Z AUTO 26009G15KT 10SM CLR 14/M03 A3027 RMK AO2 T01431033 10146 20027
+ Add Your Business

KVVS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
724-626-8745
 133.325

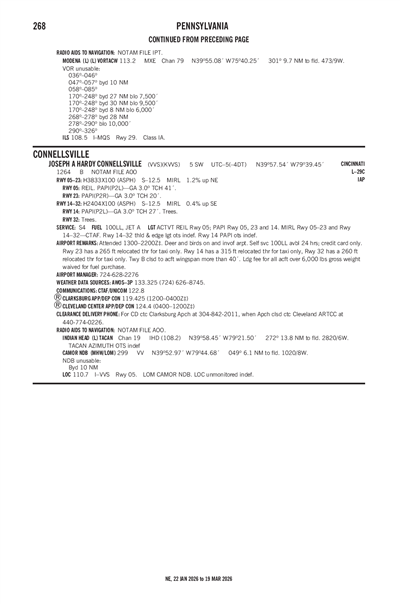

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMGW (22nm)
Tue, 11/4 12:32 PM EST
Tue, 11/4 1:00 PM EST - Wed, 11/5 1:00 PM EST
VFR
10:00 AM EST - 1:00 PM EST
Scattered 15,000'
6sm
220° 12kts
Gusts 24kts
VFR
6:00 PM EST - 10:00 AM EST
Broken 25,000'
6sm
220° 2kts
VFR
1:00 PM EST - 6:00 PM EST
Few 25,000'
6sm
250° 8kts
TAF KMGW 041732Z 0418/0518 25008KT P6SM FEW250
   FM042300 22002KT P6SM BKN250
   FM051500 22012G24KT P6SM SCT150
KVVS
EffectiveExpiresCategoryNOTAM
Domestic
10/24/25
1207Z
1/23/26
0400Z
!AOO 10/200 VVS OBST TOWER LGT (ASR 1018212) 394730.50N0793216.50W (11.4NM SSE VVS) 2248.7FT (215.9FT AGL) U/S 2510241207-2601230400
10/22/25
0438Z
11/6/25
0338Z
!AOO 10/182 VVS OBST TOWER LGT (ASR 1283549) 400330.10N0794629.60W (8.0NM NW VVS) 1494.8FT (198.8FT AGL) U/S 2510220438-2511060338
10/19/25
0449Z
11/3/25
0349Z
!AOO 10/145 VVS OBST TOWER LGT (ASR 1220565) 395544.00N0793846.10W (1.9NM SSE VVS) 1603.7FT (154.9FT AGL) U/S 2510190449-2511030349
10/2/25
1523Z
1/2/26
2359Z
!AOO 10/026 VVS OBST TOWER LGT (ASR 1027263) 394901.00N0794056.00W (8.7NM S VVS) 2848.1FT (210.0FT AGL) U/S 2510021523-2601022359
10/2/25
1332Z
11/30/25
2359Z
Runway!AOO 10/025 VVS RWY 23 WIP MAINT 2510021332-2511302359
10/2/25
0144Z
11/2/25
0300Z
!AOO 10/018 VVS OBST TOWER LGT (ASR 1226792) 395240.30N0793030.10W (8.3NM SE VVS) 2210.0FT (270.0FT AGL) U/S 2510020144-2511020300
10/2/25
0144Z
11/2/25
0300Z
!AOO 10/017 VVS OBST TOWER LGT (ASR 1228079) 394657.30N0794206.20W (10.9NM S VVS) 3042.0FT (270.0FT AGL) U/S 2510020144-2511020300
9/14/25
0145Z
12/12/25
0400Z
!AOO 09/110 VVS OBST TOWER LGT (ASR 1030610) 400109.50N0794621.10W (6.4NM NW VVS) 1717.2FT (373.0FT AGL) U/S 2509140145-2512120400
8/31/25
2241Z
11/30/25
2359Z
!AOO 08/277 VVS OBST TOWER LGT (ASR 1027986) 394639.20N0794210.90W (11.2NM S VVS) 2981.6FT (311.7FT AGL) U/S 2508312241-2511302359
8/1/25
1743Z
10/31/25
0400Z
!AOO 08/009 VVS OBST TOWER LGT (ASR 1050306) 394839.30N0794130.60W (9.1NM S VVS) 3049.9FT (314.0FT AGL) U/S 2508011743-2510310400
6/4/25
1814Z
12/31/25
2359Z
!AOO 06/027 VVS NAV LOC RWY 05 U/S 2506041814-2512312359
FDC
10/27/25
1403Z
!FDC 5/7009 VVS IAP JOSEPH A HARDY CONNELLSVILLE, CONNELLSVILLE, PA.
LOC RWY 5, AMDT 4D...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MGW VORTAC OUT OF SERVICE. 2510271403-2606081403EST
10/3/25
1533Z
!FDC 5/5823 VVS IAP JOSEPH A HARDY CONNELLSVILLE, CONNELLSVILLE, PA.
RNAV (GPS) RWY 5, ORIG-C...
LNAV MDA 1660/HAT 406; VISIBILITY CAT C 1 1/8SM.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE MGW ALTIMETER SETTING AND INCREASE LPV DA TO 1559 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 1579 FEET AND VISIBILITIES 1/8 SM; INCREASE ALL MDA 60 FEET AND LNAV CAT C VISIBILITY 1/4 SM.
2510031533-2710031532EST
No
0800 - 1700
FAYETTE COUNTY AIRPORT AUTHORITY
988 SKY DRIVE
LEMONT FURNACE, PA 15456
Phone: 724-628-2276
JOHN NECKERAUER
988 SKY DRIVE
LEMONT FURNACE, PA 15456
Phone: 724-628-2276
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AOO
--
ACTVT REIL RWY 05; PAPI RWY 05, 23 & 14. MIRL RWY 05/23 & 14/32 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Aircraft Rental

Runway 05/23

3833 ft. x 100 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 41°221°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 39° 57' 24"N 39° 57' 53"N
Longitude 79° 39' 44"W 79° 39' 12"W
Elevation 1,220' 1,264'
Threshold Crossing Height 41 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

2404 ft. x 100 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 131°311°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 39° 57' 30"N 39° 57' 15"N
Longitude 79° 39' 36"W 79° 39' 12"W
Elevation 1,228' 1,236'
Threshold Crossing Height 27 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY 23 HAS A 265 FT RELOCATED THR FOR TAXI ONLY. RWY 14 HAS A 315 FT RELOCATED THR FOR TAXI ONLY, RWY 32 HAS A 260 FT RELOCATED THR FOR TAXI ONLY.
A110-3DEER & BIRDS ON & INVOF ARPT.
A110-4TWY B CLSD TO ACFT WITH WINGSPAN MORE THAN 40 FT.
A110-6FOR CD CTC CLARKSBURG APCH AT 304-842-2011, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0226.
A110-7RWY 14/32: CLSD SS TO SR.
JOSEPH A HARDY CONNELLSVILLE (ICAO: KVVS, IATA: VVS) is a public airport located in CONNELLSVILLE, PA.
