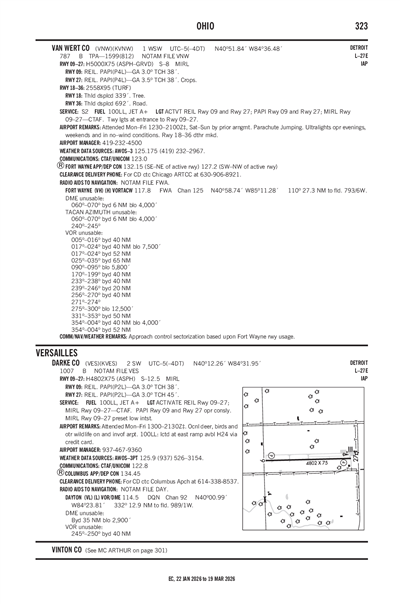

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVNW
VAN WERT COUNTY
PublicPUB

2 miles SW of VAN WERT, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 51' 50"N 84° 36' 23"W
787' MSL
1599' MSL
05W
JET A (FSII), 100LL
DAYTON (DAY)
DETROIT
INDIANAPOLIS (ZID)
4/17/25-5/15/25
KVNW VFR
2:55 AM EDT
Clear
10sm
59°F
46°F
30.01"Hg
180° 4kts
AO2
KVNW 030655Z AUTO 18004KT 10SM CLR 15/08 A3001 RMK AO2
+ Add Your Business

KVNW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
419-232-2967
 125.175

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFWA (28nm)
Tue, 6/3 1:20 AM EDT
Tue, 6/3 2:00 AM EDT - Wed, 6/4 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Sky Clear
6sm
190° 5kts
VFR
11:00 AM EDT - 8:00 PM EDT
Scattered 25,000'
Few 5,000'
6sm
200° 18kts
Gusts 25kts
VFR
8:00 PM EDT - 2:00 AM EDT
Broken 25,000'
6sm
190° 12kts
Gusts 19kts
KFWA 030520Z 0306/0406 19005KT P6SM SKC
   FM031500 20018G25KT P6SM FEW050 SCT250
   FM040000 19012G19KT P6SM BKN250
KVNW
Domestic
5/20/251929Z !VNW 05/017 VNW OBST TOWER LGT (ASR 1225294) 405454.60N0841733.30W (14.6NM ENE VNW) 1029.2FT (283.1FT AGL) U/S 2505201929-2509171929
5/19/251142Z !VNW 05/016 VNW RWY 27 RWY END ID LGT U/S 2505191142-2508012100
5/19/251142Z !VNW 05/015 VNW RWY 09 RWY END ID LGT U/S 2505191142-2508012100
5/19/251142Z !VNW 05/014 VNW RWY 36 RWY END ID LGT U/S 2505191142-2508012100
5/19/251142Z !VNW 05/013 VNW RWY 18 RWY END ID LGT U/S 2505191142-2508012100
5/19/251141Z !VNW 05/012 VNW RWY 18/36 REDL U/S 2505191141-2508012100
5/19/251141Z !VNW 05/011 VNW RWY 09/27 REDL U/S 2505191141-2508012100
5/19/251141Z !VNW 05/010 VNW RWY 36 PAPI U/S 2505191141-2508012100
5/19/251141Z !VNW 05/009 VNW RWY 18 PAPI U/S 2505191141-2508012100
5/19/251141Z !VNW 05/008 VNW RWY 27 PAPI U/S 2505191141-2508012100
5/19/251140Z !VNW 05/007 VNW RWY 09 PAPI U/S 2505191140-2508012100
5/19/251133Z !VNW 05/006 VNW RWY 18/36 CLSD 2505191133-2505232100
5/19/251132Z !VNW 05/005 VNW RWY 09/27 CLSD 2505191132-2505232100
5/19/250401Z !VNW 05/004 VNW AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 405235N0843637W (.2NM NE VNW) SFC-50FT AGL 2505190401-2505220359
5/19/250401Z !VNW 05/003 VNW AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 404843N0843508W (4NM SE VNW) SFC-50FT AGL 2505190401-2505220359
5/19/250401Z !VNW 05/001 VNW AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 405057N0844032W (3.5NM SW VNW) SFC-50FT AGL 2505190401-2505220359
5/12/251240Z !DAY 05/180 VNW OBST TOWER LGT (ASR 1329105) 410101.30N0842515.00W (12.47NM NE VNW) 1026FT (304FT AGL) U/S 2505121240-2507112359
5/7/252105Z !DAY 05/134 VNW OBST TOWER LGT (ASN 2024-AGL-7418-OE) 410101N0842515W (12.5NM NE VNW) 1025FT (304FT AGL) U/S 2505072105-2506212103
4/24/251729Z !DAY 04/365 VNW OBST TOWER LGT (ASR 1316423) 410107.44N0843219.93W (9.8NM NNE VNW) 1030FT (300FT AGL) U/S 2504241729-2506081300
2/14/251254Z !DAY 02/140 VNW RWY 27 RWY END ID LGT U/S 2502141254-2508142111EST
FDC
8/14/241333Z !FDC 4/8595 VNW IAP VAN WERT COUNTY, VAN WERT, OH.
RNAV (GPS) RWY 27, ORIG-A...
DELETE: DESCENT ANGLE 3.04/TCH 40. CHART PROFILE NOTE: VISUAL SEGMENT - OBSTACLES. DELETE PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT.
2408141333-2608141333EST
No
MON-FRI 0730-1600
SAT-SUN BY PRIOR ARNGMT
VAN WERT CO RGNL ARPT AUTH
901 ELKS DR
VAN WERT, OH 45891-8202
Phone: 419-232-4500
JAMES BLACK
901 ELKS DR
VAN WERT, OH 45891-8202
Phone: 419-232-4500
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
DAY
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 09/27

4000 ft. x 75 ft.
ASPH
Good
NONE
MED

8,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 51' 53"N 40° 51' 53"N
Longitude 84° 37' 00"W 84° 36' 08"W
Elevation 783' 785'
Threshold Crossing Height 38 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

2558 ft. x 95 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 40° 51' 57"N 40° 51' 32"N
Longitude 84° 36' 06"W 84° 36' 05"W
Elevation 782' 786'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-4(E81) TAXIWAY LGTS AT ENTRANCE TO RWY.
A110-5FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-6ULTRALIGHTS OPR EVES, WKENDS, & IN NO-WIND CONDS.
VAN WERT COUNTY (ICAO: KVNW, IATA: VNW) is a public airport located in VAN WERT, OH.
