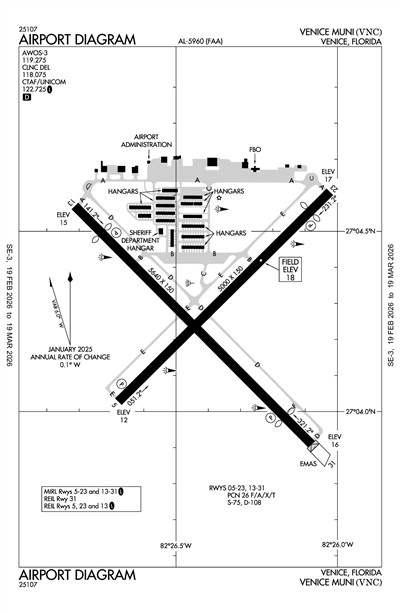

VENICE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVNC
ICAO KVNCIATA VNCLocal VNC
VENICE MUNI
PublicPUB

2 miles S of VENICE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 04' 17"N 82° 26' 24"W
Elevation
18' MSL
Pattern Alt
1018' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KVNC VFR
3:55 AM EST
Few 400'
9sm
65°F
65°F
30.16"Hg
070° 8kts
AO2 T01840181 58011 $
METAR KVNC 040855Z AUTO 07008KT 9SM FEW004 18/18 A3016 RMK AO2 T01840181 58011 $
+ Add Your Business

KVNC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.275
(941) 486-2718

Common

CTAF 122.725
ACTVT REIL RWY 5, 23, & 13; MIRL RWY 5/23, 13/31 - CTAF.
UNICOM 122.725

Clearance

Clearance Delivery 118.075

Arrival

BANGZ STAR 118.8
LUBBR STAR 135.5
RAYZZ STAR 118.8

Approach

TAMPA APPROACH 119.65
TAMPA APPROACH 124.95
Secondary

Departure

TAMPA DEPARTURE 119.65
TAMPA DEPARTURE 124.95
Secondary

Terminal Area Forecast

KSRQ (21nm)
Wed, 3/4 12:20 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
1:00 AM EST - 9:00 AM EST
Few 25,000'
6sm
080° 7kts
VFR
9:00 AM EST - 3:00 PM EST
Scattered 25,000'
Few 5,000'
6sm
100° 10kts
VFR
3:00 PM EST - 8:00 PM EST
Broken 25,000'
Scattered 5,000'
6sm
310° 8kts
VFR
8:00 PM EST - 1:00 AM EST
Broken 25,000'
Few 5,000'
6sm
090° 8kts
TAF KSRQ 040520Z 0406/0506 08007KT P6SM FEW250
   FM041400 10010KT P6SM FEW050 SCT250
   FM042000 31008KT P6SM SCT050 BKN250
   FM050100 09008KT P6SM FEW050 BKN250
KVNC
EffectiveExpiresCategoryNOTAM
Domestic
2/21/26
0815Z
4/7/26
0500Z
!PIE 02/317 VNC OBST TOWER LGT (ASR 1027569) 270758.30N0822336.80W (4.5NM NE VNC) 591.2FT (575.1FT AGL) U/S 2602210815-2604070500
2/17/26
1359Z
4/17/26
2359Z
!PIE 02/259 VNC OBST TOWER LGT (ASR 1058426) 270644.00N0822260.00W (4.0NM NE VNC) 216.9FT (205.1FT AGL) U/S 2602171359-2604172359
2/8/26
1554Z
5/9/26
0500Z
!PIE 02/108 VNC OBST TOWER LGT (ASR 1027570) 270759.20N0822339.40W (4.5NM NNE VNC) 606.0FT (590.9FT AGL) U/S 2602081554-2605090500
10/24/23
1350Z
!PIE 10/255 VNC TWY ALL HLDG PSN SIGN FOR RWY 13/31, 05/23 NOT LGTD ACFT MAY LOSE VIEW OF HORIZON CAUTION ADZ 2310241350-PERM
3/16/16
2052Z
Runway!PIE 03/185 VNC RWY 13 ENGINEERED MATERIALS ARST SYSTEM 260FT X 162FT DEP END COMMISSIONED 1603162052-PERM
FDC
1/13/26
1605Z
!FDC 6/2755 VNC ODP VENICE MUNI, VENICE, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
ADD TAKEOFF OBSTACLE NOTE: RWY 31, TEMPORARY CRANES 1156FT FROM DER, 713FT LEFT OF CENTERLINE, 150FT AGL/ 162FT MSL (2024-ASO-15156-OE, 2024-ASO-17015-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2601131605-2603161605EST
1/13/26
1605Z
3/16/26
1605Z
!FDC 6/2754 VNC IAP VENICE MUNI, VENICE, FL.
RNAV (GPS) RWY 13, AMDT 2A...
LPV DA 424/HAT 407 ALL CATS, VIS ALL CATS 1 1/8. TEMPORARY CRANES 162 MSL 1932FT NW OF RWY 13 (2024-ASO-15156/17015-OE).
2601131605-2603161605EST
No
0700-1900
CITY OF VENICE
401 WEST VENICE AVE
VENICE, FL 34285
Phone: 941-486-2626
NICHOLAS DUMAS
150 AIRPORT AVE EAST
VENICE, FL 34285
Phone: 941-486-2711
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
ACTVT REIL RWY 5, 23, & 13; MIRL RWY 5/23, 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

5000 ft. x 150 ft.
ASPH
Good
NONE
MED
26/F/A/X/T
75,000lbs
108,000lbs
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 04' 02"N 27° 04' 37"N
Longitude 82° 26' 41"W 82° 26' 01"W
Elevation 12' 17'
Threshold Crossing Height 43 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 13/31

5640 ft. x 150 ft.
ASPH
Excellent
NONE
MED
26/F/A/X/T
75,000lbs
108,000lbs
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 04' 34"N 27° 03' 55"N
Longitude 82° 26' 49"W 82° 26' 05"W
Elevation 15' 16'
Threshold Crossing Height 46 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-12NOISE ABATEMENT PROCEDURES IN EFFECT, CALL AMGR 941-486-2711.
A110-13ARPT SFC CONDS NOT RPRTD.
A110-14FOR CD CTC TAMPA APCH AT 813-878-2528
A110-1524 HR PPR FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQPT 941-486-2711.
A110-2ARPT HAS EXTENSIVE FLIGHT TRAINING.
A110-4BIRD AND WILDLIFE ON AND INVOF THE ARPT.
A110-6PAEW ADJ TO ALL RYS AND TWYS DURG DALGT HRS.
A110-7PPR FOR ACFT EXCEEDING RY WEIGHT BEARING CAPACITY.
A110-8PARASAILING ACTIVITY WEST THE ARPT ALONG BEACH.
A110-9RY 23 IS CALM WIND RY.
A30A-05RWY 05/23 PREF APCH.
A30A-23PREF DEP CALM WIND RWY.
A57-13RWY 13 APCH SLOPE 45:1 TO DTHR.
A57-23RWY 23 APCH RATIO 30:1 TO DTHR.
A57-31RWY 31 APCH SLOPE 34:1 TO DTHR.
A81-APTACTVT REIL RWY 5, 23, & 13; MIRL RWY 5/23, 13/31 - CTAF.
E60-13_EMASENGINEERED MATERIAL ARRESTING SYSTEM 260 FT IN LENGTH BY 165 FT IN WIDTH LCTD AT THE DER 13.
VENICE MUNI (ICAO: KVNC, IATA: VNC) is a public airport located in VENICE, FL, US.
