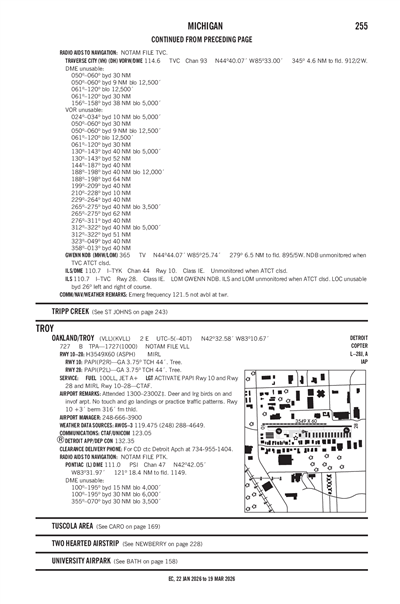

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVLL
OAKLAND/TROY
PublicPUB

2 miles E of TROY, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 32' 35"N 83° 10' 40"W
727' MSL
1727' MSL
06W
JET A (FSII), 100LL
LANSING (LAN)
DETROIT
CLEVELAND (ZOB)
4/17/25-5/15/25
KVLL VFR
6:55 AM EDT
Clear
10sm
50°F
48°F
30.23"Hg
240° 1kts
AO2
METAR KVLL 141055Z AUTO 24001KT 10SM CLR 10/09 A3023 RMK AO2
+ Add Your Business

KVLL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3

AWOS-3
248-288-4649
 119.475

Terminal Area Forecast

KDET (11nm)
Tue, 10/14 4:58 AM EDT
Tue, 10/14 5:00 AM EDT - Wed, 10/15 2:00 AM EDT
VFR
10:00 PM EDT - 2:00 AM EDT
Broken 12,000'
6sm
010° 5kts
VFR
3:00 PM EDT - 10:00 PM EDT
Broken 4,500'
6sm
360° 7kts
VFR
12:00 PM EDT - 3:00 PM EDT
Scattered 4,000'
6sm
010° 7kts
VFR
5:00 AM EDT - 12:00 PM EDT
Few 6,000'
6sm
Calm
TAF KDET 140858Z 1409/1506 00000KT P6SM FEW060
   FM141600 01007KT P6SM SCT040
   FM141900 36007KT P6SM BKN045
   FM150200 01005KT P6SM BKN120
KVLL
EffectiveExpiresCategoryNOTAM
Domestic
10/6/25
1332Z
!VLL 10/002 VLL OBST TOWER LGT (ASR 1001226) 423439.60N0831660.00W (5.1NM WNW VLL) 1134.8FT (210.0FT AGL) U/S 2510061332-2510142359EST
10/4/25
2101Z
11/18/25
2101Z
!VLL 10/001 VLL OBST TOWER LGT (ASR 1007142) 422823.00N0831159.00W (4.3NM SSW VLL) 1144.4FT (469.5FT AGL) U/S 2510042101-2511182101
9/2/25
1600Z
10/11/25
2100Z
!VLL 09/002 VLL AD AP ABN U/S 2509021600-2510112100
2/21/25
2047Z
12/31/25
2359Z
!VLL 02/003 VLL OBST TREES (ASN UNKNOWN) 423232N0831111W (550FT W APCH END RWY 10) 788FT (30FT AGL) NOT LGTD 2502212047-2512312359
2/21/25
2046Z
12/31/25
2359Z
!VLL 02/002 VLL OBST TREES (ASN UNKNOWN) 423235N0831112W (535FT W APCH END RWY 10) 767FT (20FT AGL) NOT LGTD 2502212046-2512312359
2/21/25
2045Z
12/31/25
2359Z
!VLL 02/001 VLL OBST TREES (ASN UNKNOWN) 423234N0831113W (630FT W APCH END RWY 10) 786FT (28FT AGL) NOT LGTD 2502212045-2512312359
FDC
6/13/25
1205Z
!FDC 5/3933 VLL ODP OAKLAND/TROY, TROY, MI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4B...
TAKEOFF OBSTACLE NOTES: RWY 10: UTILITY POLE, BEGINNING 1389 FT FROM DER, 179 FT LEFT OF CENTERLINE, 66 FT AGL/756 FT MSL. UTILITY POLE, BEGINNING 1391 FT FROM DER, 27 FT LEFT OF CENTERLINE, 66 FT AGL/757 FT MSL. UTILITY POLE, BEGINNING 1395 FT FROM DER, 104 FT RIGHT OF CENTERLINE, 66 FT AGL/757 FT MSL. (2024-AGL-6162/6163/6733-OE PERMANENT). ALL OTHER DATA REMAINS AS PUBLISHED. 2506131205-2706131205EST
3/26/25
1357Z
!FDC 5/8016 VLL IAP OAKLAND/TROY, TROY, MI.
RNAV (GPS) RWY 10, AMDT 3A...
CIRCLING CAT C VIS 2.
2503261357-2703271357EST
No
0800-1800
OAKLAND COUNTY
6500 PATTERSON PKWY
WATERFORD, MI 48327-1683
Phone: 248-666-3900
CHERYL BUSH
6500 PATTERSON PKWY
WATERFORD, MI 48327-1683
Phone: 248-666-3900
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
VLL
--
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 10/28

3549 ft. x 60 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 32' 35"N 42° 32' 35"N
Longitude 83° 11' 04"W 83° 10' 17"W
Elevation 727' 701'
Threshold Crossing Height 44 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3.75° 3.75°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1DEER & LRG BIRDS ON & INVOF ARPT.
A110-6NO TGL OR PRACTICE TFC PATTERNS.
A110-7FOR CD CTC DETROIT APCH AT 734-955-1404.
OAKLAND/TROY (ICAO: KVLL, IATA: VLL) is a public airport located in TROY, MI.
