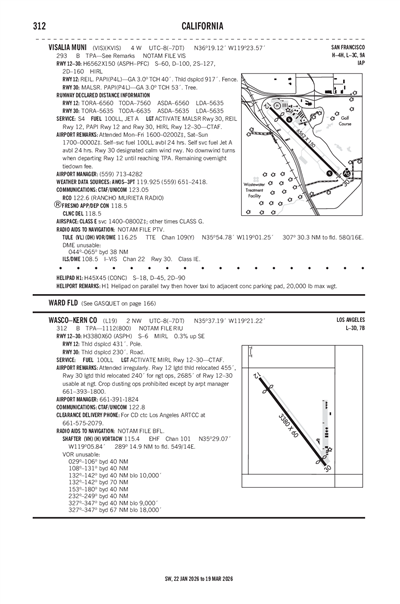

VISALIA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVIS
VISALIA MUNI
PublicPUB

4 miles W of VISALIA, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 19' 07"N 119° 23' 34"W
292' MSL
1292' MSL
12E
JET A, 100LL
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
4/17/25-5/15/25
KVIS VFR
2:56 PM PST
Scattered 4,100'
10sm
54°F
39°F
30.19"Hg
330° 9kts
AO2 SLP223 T01220039 $
METAR KVIS 082256Z AUTO 33009KT 10SM SCT041 12/04 A3019 RMK AO2 SLP223 T01220039 $
+ Add Your Business

KVIS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.925
559-651-2418

Terminal Area Forecast

KVIS
Thu, 1/8 9:20 AM PST
Thu, 1/8 10:00 AM PST - Fri, 1/9 10:00 AM PST
VFR
10:00 AM PST - 1:00 PM PST
Scattered 25,000'
6sm
310° 11kts
VFR
1:00 PM PST - 5:00 PM PST
Scattered 25,000'
6sm
330° 11kts
MVFR
5:00 PM PST - 4:00 AM PST
Mist
Scattered 25,000'
4sm
VRB° 3kts
MVFR
4:00 AM PST - 6:00 AM PST
Mist
Sky Clear
4sm
120° 2kts
LIFR
6:00 AM PST - 10:00 AM PST
Fog
Few 25,000'
0.25sm
VRB° 3kts
TAF KVIS 081720Z 0818/0918 31011KT P6SM SCT250
   FM082100 33011KT P6SM SCT250
   FM090100 VRB03KT 4SM BR SCT250
   FM091200 12002KT 4SM BR SKC
   FM091400 VRB03KT 1/4SM FG FEW250
KVIS
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
1800Z
1/7/26
2000Z
!VIS 01/002 VIS COM REMOTE TRANS/REC 118.5 U/S 2601071800-2601072000
FDC
6/3/25
1918Z
!FDC 5/8482 VIS IAP VISALIA MUNI, VISALIA, CA.
RNAV (GPS) RWY 30, AMDT 2...
LNAV/VNAV DA 656/HAT 363, CIRCLING CAT A MDA 740/HAA 447.
2506031918-2706031918EST
6/3/25
1918Z
!FDC 5/8481 VIS IAP VISALIA MUNI, VISALIA, CA.
RNAV (GPS) RWY 12, AMDT 2...
LNAV/VNAV DA 719/HAT 428, LNAV MDA 700/HAT 409, CIRCLING CAT A MDA 740/HAA 447.
2506031918-2706031918EST
6/3/25
1918Z
!FDC 5/8480 VIS IAP VISALIA MUNI, VISALIA, CA.
ILS OR LOC RWY 30, AMDT 9A...
S-LOC 30 MDA 680/HAT 387, CIRCLING CAT A MDA 740/HAA 447.
2506031918-2706031918EST
No
MON-FRI 0800-1800
SAT-SUN 0900-1600
CITY OF VISALIA
CITY HALL, 707 WEST ACEQUIA
VISALIA, CA 93291
Phone: 559-713-4201
JODY MILLER
9501 ARPT DRIVE
VISALIA, CA 93277
Phone: (559) 713-4282
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
VIS
--
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12 & 30; HIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12/30

6562 ft. x 150 ft.
ASPH
Good
PFC
HIGH

60,000lbs
100,000lbs
160,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 36° 19' 30"N 36° 18' 44"N
Longitude 119° 24' 03"W 119° 23' 06"W
Elevation 289' 292'
Threshold Crossing Height 40 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway H1

45 ft. x 45 ft.
CONC
Good
NONE


18,000lbs
45,000lbs
90,000lbs
--
  Runway H1 Runway
True Heading 72°252°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 36° 19' 31"N N/A
Longitude 119° 23' 57"W N/A
Elevation 294' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 30 DESIGNATED CALM WIND RY.
A14EMAIL: JODY.MILLER@VISALIA.CITY
A24RON TIEDOWN FEE.
A42-H1HELIPAD ON PARALLEL TWY; THEN HOVERTAXI TO ADJACENT CONCRETE PARKING PAD; 20000 LBS MAX WGT.
A57-12APCH RATIO 20:1 TO DSPLCD THLD.
A70-FUEL-100LL SELF-SERVICE FUEL 100LL AVBL 24 HRS.
A70-FUEL-ASELF-SERVICE FUEL JET A AVBL 24HRS.
A81-APTACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12 & 30; HIRL RWY 12/30 - CTAF.
E147NO DOWNWIND TURNS WHEN DEPARTING RWY 12 UNTIL RCHG TFC PAT ALT.
VISALIA MUNI (ICAO: KVIS, IATA: VIS) is a public airport located in VISALIA, CA.
