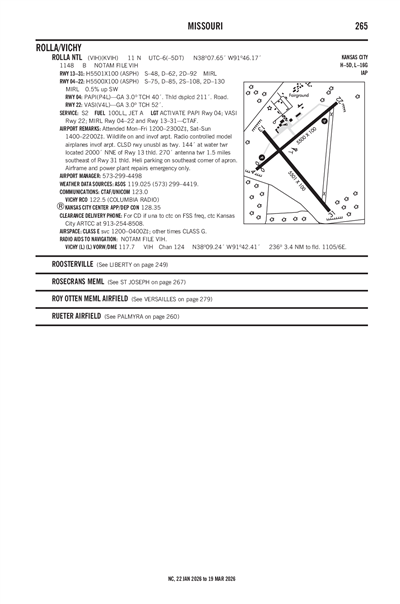

ROLLA NTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVIH
ICAO KVIHIATA VIHLocal VIH
ROLLA NTL
PublicPUB

11 miles N of ROLLA/VICHY, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 07' 39"N 91° 46' 10"W
Elevation
1148' MSL
Pattern Alt
2148' MSL
Mag Variation
1°W
Declination
2°E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KVIH VFR
7:53 PM CST
Overcast 4,300'
10sm
54°F
48°F
30.05"Hg
030° 6kts
AO2 SLP176 T01220089
METAR KVIH 040153Z AUTO 03006KT 10SM OVC043 12/09 A3005 RMK AO2 SLP176 T01220089
+ Add Your Business

KVIH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 119.025
(573) 299-4419

Common

CTAF 123.0
ACTVT PAPI RWY 04; VASI RWY 22; MIRL RWY 04/22 AND RWY 13/31 - CTAF.
UNICOM 123.0

Center

KANSAS CITY CENTER 128.35
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 128.35/284.675 (MAPLES RCAG).

Flight Service

Flight Service 122.5
(COU)

Terminal Area Forecast

KTBN (29nm)
Tue, 3/3 4:00 PM CST
Tue, 3/3 4:00 PM CST - Wed, 3/4 10:00 PM CST
VFR
4:00 PM CST - 7:00 PM CST
Broken 14,000'
Scattered 6,000'
6sm
29.91"Hg
230° 10kts
VFR
Becoming 7:00 PM CST - 10:00 PM CST
Broken 4,000'
Scattered 2,000'
6sm
30.00"Hg
170° 6kts
IFR
Becoming 10:00 PM CST - 2:00 AM CST
Overcast 2,000'
Broken 700'
6sm
30.00"Hg
190° 6kts
IFR
Becoming 2:00 AM CST - 9:00 AM CST
Light Showers and Rain and Mist
Overcast 2,000'
Broken 700'
4.97sm
30.00"Hg
210° 6kts
MVFR
Becoming 9:00 AM CST - 6:00 PM CST
Light Thunderstorm and Rain
Overcast 5,000'
Broken 1,200'
4.97sm
29.94"Hg
310° 10kts
Gusts 15kts
IFR
Becoming 6:00 PM CST - 10:00 PM CST
Light Showers and Rain
Overcast 600'
5.59sm
29.91"Hg
070° 3kts
TAF KTBN 032200Z 0322/0504 23010KT 9999 SCT060 BKN140 QNH2990INS
   BECMG 0401/0402 17006KT 9999 SCT020 BKN040 QNH3000INS
   BECMG 0404/0405 19006KT 9999 BKN007 OVC020 QNH3001INS
   BECMG 0408/0409 21006KT 8000 -SHRA BR BKN007 OVC020 QNH3000INS
   BECMG 0415/0416 31010G15KT 8000 -TSRA BKN012CB OVC050 QNH2995INS
   BECMG 0500/0501 07003KT 9000 -SHRA OVC006 QNH2991INS TX22/0322Z TN13/0414Z LAST NO AMDS AFT 0422 NEXT 0414
KVIH
EffectiveExpiresCategoryNOTAM
Domestic
2/28/26
0600Z
2/28/26
1100Z
!VIH 02/015 VIH COM REMOTE COM OUTLET 122.5 U/S 2602280600-2602281100
2/21/26
2143Z
4/21/26
2143Z
!VIH 02/016 VIH OBST TOWER LGT (ASR 1258409) 380915.00N0915345.30W (6.2NM WNW VIH) 1150.3FT (309.7FT AGL) U/S 2602212143-2604212143
2/3/26
0730Z
6/3/26
0730Z
!VIH 02/004 VIH OBST TOWER LGT (ASR 1006615) 381515.00N0915554.00W (10.8NM NW VIH) 1278.9FT (319.9FT AGL) U/S 2602030730-2606030730
2/1/26
0330Z
!VIH 02/001 VIH OBST TOWER LGT (ASR 1253327) 381159.00N0915626.00W (9.1NM WNW VIH) 1201.4FT (314.6FT AGL) U/S 2602010330-2603312359EST
1/30/26
0001Z
4/30/26
2359Z
!VIH 01/011 VIH AIRSPACE SEE ZKC 01/351 HIGH SPEED ACFT DLY SR-SS 2601300001-2604302359
1/3/26
0247Z
3/3/26
2359Z
!VIH 01/003 VIH OBST TOWER LGT (ASR 1276487) 380352.00N0913944.30W (6.3NM SE VIH) 1246.7FT (259.8FT AGL) U/S 2601030247-2603032359
FDC
5/29/25
1013Z
!FDC 5/6433 VIH IAP ROLLA NTL, ROLLA/VICHY, MO.
RNAV (GPS) RWY 4, ORIG-C...
VOR RWY 22, AMDT 8A...
VOR/DME RWY 4, AMDT 3A...
CIRCLING CATS A/B/C MDA 1700/HAA 552.
2505291013-2605291013EST
No
MON-FRI 0600-1700
SAT-SUN 0800-1600
CITY OF ROLLA
901 N. ELM ST. PO BOX 979
ROLLA, MO 65401
Phone: 573-426-6948
DARRIN BACON
631 AIRPORT DRIVE
VICHY, MO 65580
Phone: 573-299-4498
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
VIH
--
ACTVT PAPI RWY 04; VASI RWY 22; MIRL RWY 04/22 AND RWY 13/31 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Pilot Instruction
Parachute Jump Activity

Runway 04/22

5500 ft. x 100 ft.
ASPH
Excellent
NONE
MED

75,000lbs
85,000lbs
130,000lbs
--
  Runway 04 Runway 22
True Heading 47°227°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD FAIR
Latitude 38° 07' 29"N 38° 08' 07"N
Longitude 91° 46' 36"W 91° 45' 46"W
Elevation 1,137' 1,109'
Threshold Crossing Height 40 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 13/31

5501 ft. x 100 ft.
ASPH
Fair
NONE
MED

48,000lbs
62,000lbs
92,000lbs
--
  Runway 13 Runway 31
True Heading 137°317°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 38° 07' 49"N 38° 07' 10"N
Longitude 91° 46' 33"W 91° 45' 46"W
Elevation 1,136' 1,148'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1144 FT WATER TOWER LCTD 2000 FT NNE OF RWY 13 THLD.
A110-3RADIO CONTROLLED MODEL AIRPLANES INVOF ARPT.
A110-4HELI PARKING ON SE CORNER OF APRON.
A110-5WILDLIFE ON & INVOF ARPT.
A110-6270 FT ANTENNA TOWER 1.5 MILES SE OF RWY 31 THLD
A110-7CLSD RWY UNUSBL AS TWY.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
A57-04APCH RATIO TO DSPLCD THLD 29:1; DSPLCD THLD 1 FT LOWER THAN RY END.
A71AIRFRAME & PWR PLANT RPRS EMERG ONLY.
A81-APTACTVT PAPI RWY 04; VASI RWY 22; MIRL RWY 04/22 AND RWY 13/31 - CTAF.
ROLLA NTL (ICAO: KVIH, IATA: VIH) is a public airport located in ROLLA/VICHY, MO, US.
