iFlightPlanner



...

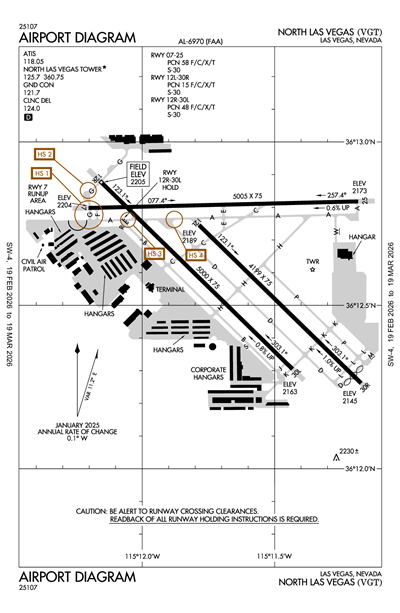

NORTH LAS VEGAS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVGT
NORTH LAS VEGAS
PublicPUB

3 miles NW of LAS VEGAS, NV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 12' 39"N 115° 11' 40"W
2205' MSL
3005' MSL
JET A, 100LL
RENO (RNO)
LAS VEGAS
LOS ANGELES (ZLA)
4/17/25-5/15/25
KVGT VFR
7:53 AM PST
Clear
10sm
40°F
12°F
30.45"Hg
340° 12kts
Gusts 21kts
AO2 SLP339 T00441111 $
METAR KVGT 091553Z 34012G21KT 10SM CLR 04/M11 A3045 RMK AO2 SLP339 T00441111 $
+ Add Your Business

KVGT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 118.05
702-631-7125
ASOS 118.05
702-648-6633

Clearance

CD/P 124.0

Ground

GND/P 121.7

Tower

LCL/P 125.7
LCL/S 119.15

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KVGT
Fri, 1/9 3:21 AM PST
Fri, 1/9 4:00 AM PST - Sat, 1/10 4:00 AM PST
VFR
4:00 AM PST - 5:00 PM PST
Sky Clear
6sm
340° 15kts
Gusts 25kts
VFR
5:00 PM PST - 4:00 AM PST
Sky Clear
6sm
350° 11kts
TAF KVGT 091121Z 0912/1012 34015G25KT P6SM SKC
   FM100100 35011KT P6SM SKC
KVGT
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
0510Z
1/22/26
0410Z
!VGT 01/004 VGT OBST TOWER LGT (ASR 1225063) 361923.80N1145551.70W (14.3NM ENE VGT) 2726.0FT (220.1FT AGL) U/S 2601070510-2601220410
12/31/25
0523Z
1/15/26
0423Z
!VGT 12/032 VGT OBST TOWER LGT (ASR 1236460) 361557.50N1150131.80W (8.8NM ENE VGT) 2029.9FT (86.9FT AGL) U/S 2512310523-2601150423
11/17/25
1319Z
2/16/26
0500Z
!VGT 11/008 VGT OBST TOWER LGT (ASR 1220088) 361304.50N1151242.40W (1.0NM WNW VGT) 2330.1FT (86.9FT AGL) U/S 2511171319-2602160500
11/3/25
1642Z
3/27/26
2359Z
Runway!VGT 11/001 VGT RWY 12L PAPI U/S 2511031642-2603272359
10/30/25
2352Z
1/16/26
2359Z
Runway!VGT 10/032 VGT RWY 12R 3000FT DIST REMAINING SIGN MISSING 2510302352-2601162359
FDC
11/19/25
1457Z
!FDC 5/8543 VGT IAP NORTH LAS VEGAS, LAS VEGAS, NV.
ILS OR LOC RWY 12L, AMDT 1...
CHART S-ILS 12L CATS A/B VIS 1 SM..
DELETE CIRCLING ICON.
CHANGE MISSED APPROACH TO READ: CLIMB TO 2660 THEN CLIMBING RIGHT
TURN HEADING 250 TO 6000, INTERCEPT LAS VORTAC R-310 OUTBOUND TO
TUPUC/LAS 10.00 DME THEN RIGHT TURN ON LAS VORTAC R-330 TO LAS
VORTAC AND HOLD.
THIS IS ILS OR LOC RWY 12L, AMDT 1A. 2511191457-PERM
Yes
0500-2230
CLARK COUNTY
2730 AIRPORT DR SUITE 101
NORTH LAS VEGAS, NV 89032
Phone: 702-261-3803
KARINA TARNOWSKA
2730 AIRPORT DR SUITE 101
NORTH LAS VEGAS, NV 89032
Phone: 702-261-3804
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
VGT
--
WHEN ATCT CLSD ACTVT REIL RWY 07 & 25, 12L & 30R, 12R & 30L; PAPI RWY 07 & 25, 12L & 30R, 12R & 30L; MIRL RWY 07/25, 12L/30R, 12R/30L; TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

5005 ft. x 75 ft.
ASPH
Good
NONE
MED
58 /F/C/X/T
30,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 88°268°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 36° 12' 48"N 36° 12' 49"N
Longitude 115° 12' 12"W 115° 11' 11"W
Elevation 2,204' 2,172'
Threshold Crossing Height 37 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 12L/30R

4199 ft. x 75 ft.
ASPH
Good
NONE
MED
15 /F/C/X/T
30,000lbs
--
--
--
  Runway 12L Runway 30R
True Heading 134°314°
Traffic Pattern
Markings PIR BSC
Markings Condition GOOD GOOD
Latitude 36° 12' 45"N 36° 12' 16"N
Longitude 115° 11' 47"W 115° 11' 10"W
Elevation 2,189' 2,145'
Threshold Crossing Height 48 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.2° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12R/30L

5000 ft. x 75 ft.
ASPH
Good
NONE
MED
48 /F/C/X/T
30,000lbs
--
--
--
  Runway 12R Runway 30L
True Heading 134°314°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 12' 53"N 36° 12' 18"N
Longitude 115° 12' 10"W 115° 11' 26"W
Elevation 2,205' 2,163'
Threshold Crossing Height 25 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1AIMING POINT MKD AT 1000 FT - ALL RWYS.
A110-4RWY GUARD LGTS AT ALL INTXNS.
A110-5FOR CD WHEN ATCT IS CLSD CTC LAS APCH ON 124.0 OR PH 725-200-4432.
A110-6WHEN SPL EVENT PRKG PPR PROGRAM NOTAM IS ACTV, TSNT ACFT OPERS NOT PERM BASED NEED TO OBTAIN A PPR NR FM AN FBO FOR EA LDG. PPR APPVL & CONFIRMATION NRS CAN BE OBTAINED FM THE SEL FBO AT 702-261-7775. PPR CONFIRMATION NRS SHOULD BE ENTERED IN THE RMKS SECTION OF EACH FLT PLAN.
A110-7RWY 12R CALM WIND RWY.
A14MGR. ALSO 702-261-3802. 702.261.3804, NORTH LAS VEGAS AIRPORT 2730 AIRPORT DRIVE, SUITE 101 NORTH LAS VEGAS, NV 89032
A26ARFF INDEX A, 139.315 (E)
A81-APTWHEN ATCT CLSD ACTVT REIL RWY 07 & 25, 12L & 30R, 12R & 30L; PAPI RWY 07 & 25, 12L & 30R, 12R & 30L; MIRL RWY 07/25, 12L/30R, 12R/30L; TWY LGTS - CTAF.
NORTH LAS VEGAS (ICAO: KVGT, IATA: VGT) is a public airport located in LAS VEGAS, NV.
