iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVBT
BENTONVILLE MUNI/LOUISE M THADEN FLD
PublicPUB

2 miles S of BENTONVILLE, AR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 20' 41"N 94° 13' 10"W
1298' MSL
2298' MSL
01E
JET A, 100LL
JONESBORO (JBR)
KANSAS CITY
MEMPHIS (ZME)
10/31/24-11/28/24
KVBT MVFR
5:56 AM CST
Light Rain
Overcast 3,100'
Broken 1,200'
Scattered 400'
7sm
54°F
54°F
30.03"Hg
110° 8kts
AO2 RAB1058 SLP167 P0004 60053 70095 T01220122 10122 20117 56003 $
KVBT 091156Z AUTO 11008KT 7SM -RA SCT004 BKN012 OVC031 12/12 A3003 RMK AO2 RAB1058 SLP167 P0004 60053 70095 T01220122 10122 20117 56003 $
Add Your Business

KVBT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 122.975

AWOS-3PT

AWOS-3PT
479-273-9198
 134.975

FAA A/FD Pages

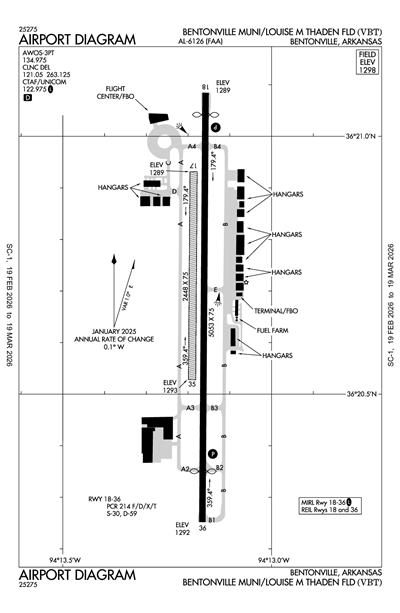

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KXNA (6nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
MVFR
6:00 AM CST - 9:00 AM CST
Light Showers and Rain
Broken 1,000'
6sm
160° 9kts
LIFR
Temporary 6:00 AM CST - 8:00 AM CST
Light Showers and Rain
Overcast 400'
4sm
Calm
MVFR
9:00 AM CST - 12:00 PM CST
Mist
Overcast 1,500'
6sm
180° 6kts
MVFR
12:00 PM CST - 3:00 PM CST
Overcast 3,000'
6sm
200° 7kts
VFR
3:00 PM CST - 6:00 PM CST
Scattered 25,000'
6sm
200° 10kts
VFR
6:00 PM CST - 6:00 AM CST
Sky Clear
6sm
190° 4kts
KXNA 091120Z 0912/1012 16009KT 6SM -SHRA BKN010
   TEMPO 0912/0914 4SM -SHRA OVC004
   FM091500 18006KT 6SM BR OVC015
   FM091800 20007KT P6SM OVC030
   FM092100 20010KT P6SM SCT250
   FM100000 19004KT P6SM SKC
KVBT
Domestic
10/31/241432Z !VBT 10/015 VBT COM REMOTE TRANS/REC 263.125 U/S 2410311432-2501032000EST
10/21/240912Z !VBT 10/008 VBT OBST TOWER LGT (ASR 1037677) 362337.00N0941058.00W (3.4NM NNE VBT) 1575.1FT (315.0FT AGL) U/S 2410210912-2411200001
10/8/241426Z !VBT 10/004 VBT TWY A BTN TWY D AND TWY A2 WIP ADJ 2410081426-2411152359
7/26/241300Z !VBT 07/018 VBT AIRSPACE SEE RZC 07/335 UAS DLY 1300-0400
2407261300-2501010400
3/15/241444Z !VBT 03/007 VBT AIRSPACE SEE RZC 03/161 UAS 2403151444-2503152359
3/15/241442Z !VBT 03/006 VBT AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF 362208N0941328W (.7NM NW VBT) SFC-175FT AGL 2403151442-2503152359
10/25/231938Z !VBT 10/023 VBT RWY 18/36 CHANGED TO 5053FT X 75FT. DECLARED DIST: RWY 18 TORA 4453FT TODA 4453FT ASDA 5053FT LDA 4796FT.
RWY 36 TORA 4796FT TODA 4796FT ASDA 4796FT LDA 4196FT. 2310251938-PERM
FDC
9/9/241513Z !FDC 4/2579 VBT SID BENTONVILLE MUNI/LOUISE M THADEN FLD, BENTONVILLE, AR.
BENTON SEVEN DEPARTURE...
TAKEOFF MINIMUMS: RWY 36, 400-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 220 FEET PER NM TO 1800. TAKEOFF OBSTACLE NOTES: RWY 36, ANTENNA TOWER, 1.91 NM FROM DER, 1603FT LEFT OF CENTERLINE, 359FT AGL/1609FT MSL (2024-ASW-10969-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2409091513-2609091513EST
9/9/241513Z !FDC 4/2578 VBT ODP BENTONVILLE MUNI/LOUISE M THADEN FLD, BENTONVILLE, AR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A...
TAKEOFF MINIMUMS: RWY 36, 400-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 220 FEET PER NM TO 1800. TAKEOFF OBSTACLE NOTES: RWY 36, ANTENNA TOWER, 1.91 NM FROM DER, 1603FT LEFT OF CENTERLINE, 359FT AGL/1609FT MSL (2024-ASW-10969-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2409091513-2609091513EST
8/28/241147Z !FDC 4/7277 VBT IAP BENTONVILLE MUNI/LOUISE M THADEN FLD, BENTONVILLE, AR.
RNAV (GPS) RWY 18, AMDT 2A...
CIRCLING CAT A/B MDA 1860/HAA 562.
TEMPORARY CRANES, 1505 MSL, BEGINNING 1545FT SOUTH OF KVBT AIRPORT (2024-ASW-5856 THRU 5860-NRA).
2408281147-2504091147EST
8/28/241147Z !FDC 4/7264 VBT IAP BENTONVILLE MUNI/LOUISE M THADEN FLD, BENTONVILLE, AR.
RNAV (GPS) RWY 36, AMDT 2B...
LPV DA NA.
LNAV/VNAV DA NA.
LNAV MDA 1820/HAT 522 ALL CATS. VIS CATS C/D 1 1/2.
CIRCLING CATS A/B MDA 1860/HAA 562.
VDP NA.
TEMPORARY CRANES, 1505 MSL, BEGINNING 580FT NW OF RWY 36 (2024-ASW-5856 THRU 5860-NRA).
2408281147-2504091147EST
No
OCT-MAR 0800-1700
APR-SEP 0700-1900
FOR SVC AFT HRS CALL 479-367-9800.
CITY OF BENTONVILLE
305 SW A STREET
BENTONVILLE, AR 72712
Phone: 479-271-3112
DEBBIE GRIFFIN
305 SW A ST
BENTONVILLE, AR 72712
Phone: 479-254-2028
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
VBT
--
ACTVT MIRL RWY 18/36, PAPI RWY 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 17/35

2448 ft. x 75 ft.

TURF
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern
Markings
Markings Condition
Latitude 36° 20' 56"N 36° 20' 32"N
Longitude 94° 13' 11"W 94° 13' 11"W
Elevation 1,289' 1,292'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

5053 ft. x 75 ft.
ASPH
Fair
GRVD
MED

30,000lbs
59,000lbs
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 36° 21' 05"N 36° 20' 15"N
Longitude 94° 13' 09"W 94° 13' 10"W
Elevation 1,289' 1,292'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BEGINNING 60 FT BYD NORTH END OF RY 18 PAVEMENT, GND HAS APROXLY 12 FT DROP OVER 60 FT LENGTH TO POND.
A110-2FOR CD CTC RAZORBACK APCH 479-649-2416, WHEN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A110-3MIGRATORY BIRDS ON & INVOF ARPT
A110-4RWY 17/35 VFR DALGT OPNS ONLY.
A110-5SIMUL USE OF RWYS 17/35 AND 18/36 NA.
BENTONVILLE MUNI/LOUISE M THADEN FLD (ICAO: KVBT, IATA: VBT) is a public airport located in BENTONVILLE, AR.
