KVBG
VANDENBERG SPACE FORCE BASE
PrivatePVT

7 miles NW of LOMPOC, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 44' 14"N 120° 35' 04"W
368' MSL
1368' MSL
12E
JET A+, CILI
HAWTHORNE (HHR)
LOS ANGELES
LOS ANGELES (ZLA)
10/31/24-11/28/24
KVBG VFR
3:55 AM PST
Clear
10sm
42°F
28°F
29.99"Hg
140° 6kts
AO2 SLP159 T00581021 10084 20045 57007 TSNO $
KVBG 091155Z AUTO 14006KT 10SM CLR 06/M02 A2999 RMK AO2 SLP159 T00581021 10084 20045 57007 TSNO $
Add Your Business

KVBG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 124.95

ATIS

D-ATIS
DSN 275-2847
 133.125

Clearance Delivery

CD/P
 121.75

Emergency

EMERG
 121.5

Ground

GND/P
 121.75

Tower

LCL/P
 124.95

Other

COMD POST
 126.2
PTD
 126.2
RANGE CTL
 121.4

FAA A/FD Pages

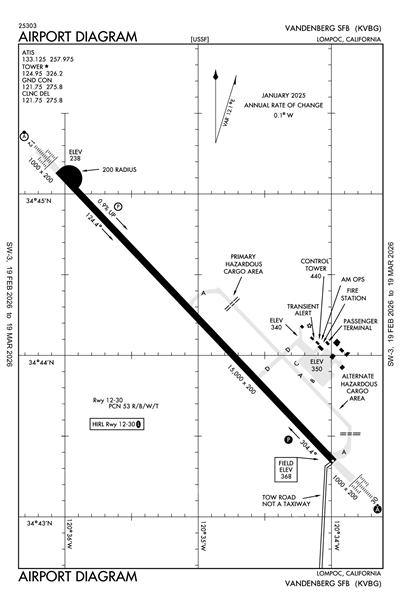

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSMX (11nm)
Sat, 11/9 3:20 AM PST
Sat, 11/9 4:00 AM PST - Sun, 11/10 4:00 AM PST
VFR
4:00 AM PST - 1:00 PM PST
Sky Clear
6sm
VRB° 3kts
VFR
1:00 PM PST - 7:00 PM PST
Sky Clear
6sm
300° 8kts
VFR
7:00 PM PST - 4:00 AM PST
Scattered 25,000'
6sm
VRB° 3kts
KSMX 091120Z 0912/1012 VRB03KT P6SM SKC
   FM092100 30008KT P6SM SKC
   FM100300 VRB03KT P6SM SCT250
KVBG
Military
11/6/240850Z M0593/24 NOTAMC M0591/24
11/6/240750Z M0592/24 NOTAMC M0585/24
11/6/240043Z M0590/24 NOTAMC M0586/24
11/5/241907Z M0589/24 NOTAMC M0583/24
11/5/241907Z M0588/24 NOTAMC M0584/24
10/8/241033Z !KVBG V0248/24 VBG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC/DME RWY 30 MINIMA TO THE FOLLOWING: S-LOC 30: WHEN ALS INOP INCREASE CAT AB RVR TO 55, VIS TO 1 MILE; CAT CDE VIS TO 1 3/4 MILES. WHEN CONTROL TOWER CLOSED INCREASE RVR TO 50. S-ILS 30: NO CHANGE. S-LOC 30: CAT AB 960/24 592 (600-1/2); CAT CDE 960-1 1/4 592 (600-1 1/4). CIRCLING: CAT A 980-1 612 (700-1); CAT B 1000-1 632 (700-1); CAT C 1020-1 3/4 652 (700-1 3/4); CAT D 1180-2 3/4 812 (900-2 3/4); CAT E 1560-3 1192 (1200-3). 2410081033-2412122359
10/8/241027Z !KVBG V0247/24 VBG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-ILS OR LOC RWY 30 MINIMA TO THE FOLLOWING: S-LOC 30: WHEN ALS INOP INCREASE CAT CDE VIS TO 1 3/4 MILES. WHEN CONTROL TOWER CLOSED INCREASE RVR TO 50. S-ILS 30: NO CHANGE. S-LOC 30: 960-1 1/4 592 (600-1 1/4). CIRCLING CAT C 1020-1 3/4 652 (700-1 3/4); CAT D 1180-2 3/4 812 (900-2 3/4); CAT E 1560-3 1192 (1200-3). 2410081027-2412122359
10/8/241020Z !KVBG V0246/24 VBG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 30 WHEN ALS INOP INCREASE CAT AB RVR TO 55, VIS TO 1 MILE; CAT CDE VIS TO 1 7/8 MILES. WHEN CONTROL TOWER CLOSED INCREASE CAT AB RVR TO 50. S-30: CAT AB 1020/24 652 (700-1/2); CAT CDE 1020-1 3/8 652 (700-1 3/8). CIRCLING CAT A 980-1 612 (700-1); CAT B 1000-1 632 (700-1); CAT C 1020-1 7/8 652 (700-1 7/8); CAT D 1180-2 3/4 812 (900-2 3/4); CAT E 1560-3 1192 (1200-3). 2410081020-2412122359
10/8/241014Z !KVBG V0245/24 VBG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-TACAN RWY 30 MINIMA TO THE FOLLOWING: WHEN ALS INOP INCREASE CAT CDE VIS TO 1 7/8 MILES. S-30: 1020-1 3/8 652 (700-1 3/8). CIRCLING CAT C 1020-1 7/8 652 (700-1 7/8); CAT D 1180-2 3/4 812 (900-2 3/4); CAT E 1560-3 1192 (1200-3). 2410081014-2412122359
8/12/241536Z AERODROME BEACON OUT OF SERVICE
8/12/241535Z RWY 30 END LIGHTS NOT ILLUMINATED
8/12/241532Z RWY 30 CENTERLINE OBSCURED FROM SOUTHEAST RDR 14/1 TO RDR 12/3.
8/12/241528Z BLDG 1735 OBST LGT NOT ILLUMINATED.
8/12/241526Z 1 OBST LGT ON ILS SHELTER NOT ILLUMINATED, LOCATED APRXLY 1,200 FT NORTH OF RWY 12 THLD.
8/12/241525Z WIND DIRECTION INDICATOR OBST LGT NOT ILLUMINATED.
8/12/241521Z AERODROME WIND DIRECTION INDICATOR OTS.
8/12/241516Z 1 OBST LGT ON BLDG 1623 NOT ILLUMINATED, LOCATED APRXLY 1.5 MILES NORTHWEST OF THE RWY 12 THLD.
8/12/241505Z FADED SURFACE-PAINTED DIRECTIONAL MARKINGS LOCATED ON TWY A INTERSECTIONS TO RWY 12/30 & TWYS B, C & D.
12/19/231810Z !KVBG V0194/23 VBG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 30 HOLDING OVER FIX WATKN NOT AUTHORIZED BELOW 6500. 2312191810-2412312359
Yes
1600-0100Z++
CLSD SAT, SUN AND HOL.
USAF
VANDENBERG AFB
LOMPOC, CA 93437
BASE OPERATIONS
VANDENGERG AFB
LOMPOC, CA 93437
Phone: 805-606-6941
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
HHR
--
WHEN ATCT CLSD ACTVT ALS RWY 30; PAPI RWY 30; HIRL RWY 12/30 - CTAF. RWY 12 & 30 SFL OTS. RWY 12 ALS OTS; USE NO APCH LIGHT MINS.
N/A
BCN OTS.
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
None

Runway 12/30

15000 ft. x 200 ft.
CONC
Good
NONE
HIGH
48 /R/B/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 137°317°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 45' 08"N 34° 43' 21"N
Longitude 120° 36' 05"W 120° 34' 02"W
Elevation 238' 368'
Threshold Crossing Height 72 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF2
Centerline Lights No No
Runway End Identifier Lights
A110-10RSTD - ACTIVATION OF AN/APS 145 RADAR OR SIMILAR RADAR SYSTEMS IS PROH WHILE IN R2516, R2517, R2534A AND R2534B. CTC TWR ON GND PRIOR TO ENG START, ENG START OR AFLD OPR NOT AUTH TIL CTC WITH TWR IS MADE. NO INT DEP BTN OFFL SS-SR.
A110-11CAUTION - UNCTL CIV ARPT TFC 7 NM SE. WHEN ARPT IS VMC ACFT WILL NOT EXCEED 1900' TIL CROS DEP END OF RWY TO AVOID OVERHEAD TFC PAT. HVY AND LARGE ACFT ARE REQ TO USE MIN TAXI PWR AND SHUT DOWN OR IDLE OUTBOARD ENG TO AVOID BLOWING FOREIGN OBJECT ONTO PAVEMENT.
A110-12CAUTION - PRK RAMP IS NOT MRK FOR C-17 ACFT.
A110-16REMARKS - FOR BASH INFO, SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-2RWY-LGTS: RWY 12 - SF.
A110-23TRAN ALERT: LTD FLEET SVC AVBL, CTC AM OPS.
A110-24MISC: ALL ACFT REQ FULL STOP AT VBG OR SUPPORTING VBG VIP MOVEMENT, CTC PTD (OT COMD POST) 30 MIN PRIOR TO LDG. ALTN AFLD RQR. AM OPS DSN 276-6941/42, C805-606-6941/42 FAX EXTN 6664. RWY 12-30 GROOVED.
A110-25MISC: EARLY/LATE ACFT ARR/DEP BEFORE/AFTER PUBL OR SKED AFLD OPERATING HRS SHALL EXP HOLDING WITH APCH CTL OR ARTCC TIL AFLD IS OPEN OR RON IF DEP. ACFT SHALL CTC COMD POST AT DSN 276-9961 PRIOR TO DEP WITH UPDATED ARR TIME. ENSURE PILOTS CK NOTAMS PRIOR TO DEP AS NOTAM WILL REFLECT AFLD HRS BASED ON APPROVED AFTER HRS REQ. CTC COMD POST 30 MIN OUT OR EARLIER.
A110-26TRAN ALERT: POTABLE WATER SVC UNAVBL.
A110-3RWY-LGTS: RWY 30 - SF.
A110-30TOW CPBLTY AVBL FOR C-130 AND SMLR ACFT.
A110-31LTD TOW CPBLTY FOR ACFT UP TO 450K LBS; CTC AIRFIELD MGMT FOR SPECIFICS.
A110-32ALL OTHER ACFT TOW CPBLTY UNAVBL.
A110-34CAUTION: MKGS ON PRKG APRON FADED AND NON-RETROREFLECTIVE.
A110-35RSTD: ALPHA ROW ENG RUN-UP AREA UNAVBL.
A110-36CSTMS/AG/IMG: CUSTOMS UNAVBL.
A110-38CAUTION: ALTN HAZ CARGO PAD DOES NOT HAVE TIE DOWNS.
A110-39MISC: ANY CHANGE TO ARR/DEP TIME MUST BE COORD THRU COMD POST, RE-APVL IS RQR IF NEW ETA/ETD IS OUTSIDE OF AFLD HRS OF OPR.
A110-40CAUTION: OBST LGT ON WATER TWR LCTD 1.3 SM SW OF RWY 30 THLD O/S.
A110-41CAUTION: ACFT TIE-DOWNS UNAVBL.
A110-46MISC: COMSEC MTRL MUST BE STORED AT 30 SW COMD POST, DSN 276-9961, C805-606-9961.
A110-48CAUTION - USE EXTREME CTN FOR EXTENSIVE UAS OPS IN VCNTY.
A110-49RSTD: PPR AT LEAST 24 HR IN ADVN, BUT NO EARLIER THAN 5 BUS DAYS IN ADVN. SEND EMAIL TO 30OSS_OSAA-AIRFIE@US.AF.MIL FOR PPR REQ FORM. AM OPS DSN 276-6941 OR C805-606-6941/6942 FAX EXTN 6664. ACFT OPS OUTSIDE OF PUBL AFLD OPRG HRS MUST BE APV AT LEAST 48 HRS IN ADV THRU AFLD MGMT. GRD SUPPORT SVC UNAVBL FOR ARR/DEP OPS OUTSIDE OF PUBL OR SKED AFLD OPRG HRS.
A110-5JASU - 4(A/M32A-86) 2(AM32-95).
A110-50MISC: AD WIND DRCTN INDCR OTS.
A110-7FLUID - SP PRESAIR LPOX LOX LHNIT.
A110-8OIL - O-148-156.
VANDENBERG SPACE FORCE BASE (ICAO: KVBG, IATA: VBG) is a private airport located in LOMPOC, CA.
