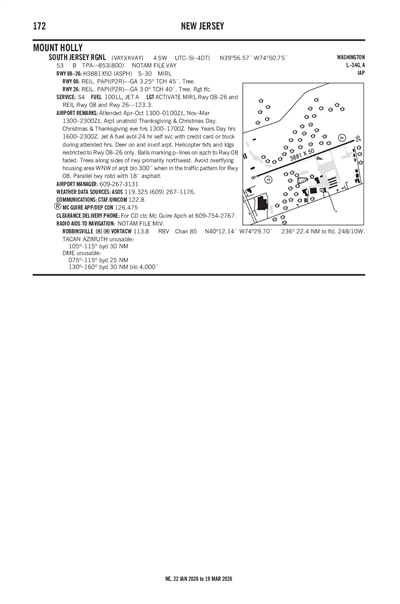

SOUTH JERSEY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVAY
ICAO KVAYIATA LLYLocal VAY
SOUTH JERSEY RGNL
PublicPUB

4 miles SW of MOUNT HOLLY, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 56' 34"N 74° 50' 45"W
Elevation
53' MSL
Pattern Alt
853' MSL
Mag Variation
12°W
Declination
12°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KVAY VFR
2:54 AM EST
Overcast 4,100'
Scattered 700'
10sm
40°F
38°F
30.21"Hg
220° 5kts
AO2 RAE33 SLP231 P0000 T00440033
METAR KVAY 040754Z AUTO 22005KT 10SM SCT007 OVC041 04/03 A3021 RMK AO2 RAE33 SLP231 P0000 T00440033
+ Add Your Business

KVAY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 119.325
(609) 267-1176

Common

CTAF 122.8
UNICOM 122.8

Approach

MC GUIRE APPROACH 126.475

Departure

MC GUIRE DEPARTURE 126.475

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KPNE (11nm)
Wed, 3/4 12:33 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
IFR
1:00 AM EST - 3:00 AM EST
Mist
Overcast 600'
6sm
240° 8kts
LIFR
3:00 AM EST - 10:00 AM EST
Mist
Overcast 200'
3sm
VRB° 3kts
IFR
10:00 AM EST - 6:00 PM EST
Mist
Overcast 800'
6sm
040° 5kts
MVFR
Temporary 2:00 PM EST - 6:00 PM EST
Light Rain and Mist
Overcast 1,500'
4sm
Calm
IFR
6:00 PM EST - 11:00 PM EST
Mist
Overcast 800'
5sm
080° 3kts
IFR
11:00 PM EST - 1:00 AM EST
Mist
Overcast 500'
3sm
VRB° 2kts
TAF KPNE 040533Z 0406/0506 24008KT 6SM BR OVC006
   FM040800 VRB03KT 3SM BR OVC002
   FM041500 04005KT 6SM BR OVC008
   TEMPO 0419/0423 4SM -RA BR OVC015
   FM042300 08003KT 5SM BR OVC008
   FM050400 VRB02KT 3SM BR OVC005
KVAY
EffectiveExpiresCategoryNOTAM
Domestic
1/6/26
0830Z
4/6/26
0500Z
!VAY 01/002 VAY OBST TOWER LGT (ASR 1283155) 400149.80N0744859.90W (5.5NM NNE VAY) 231.0FT (162.1FT AGL) U/S 2601060830-2604060500
No
APR-OCT 0800-2000
NOV-MAR 0800-1800
ARPT UNATNDD THANKSGIVING & CHRISTMAS DAY. CHRISTMAS & THANKSGIVING EVE HRS 0800-1200. NEW YEARS DAY HRS 1100-1800.
N.J. DEPT. OF TRANSPORTATION
1035 PARKWAY AVE. P.O. BOX 600
TRENTON, NJ 08625
Phone: 609-530-2900
MINDY KIMBALL
68 STACY HAINES RD.
LUMBERTON, NJ 08048
Phone: 609-267-3131
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
VAY
--
ACTVT MIRL RY 08/26 AND REIL RY 08 & 26 -123.3.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction

Runway 08/26

3881 ft. x 50 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 70°250°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 56' 28"N 39° 56' 41"N
Longitude 74° 51' 08"W 74° 50' 21"W
Elevation 44' 52'
Threshold Crossing Height 45 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.25° 3°
Visual Slope Indicator P2R P2R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1TREES ALONG SIDES OF RY PRIMARILY NW.
A110-2BALLS MKG PLINES ON APH TO RY 08 FADED.
A110-3DEER ON & INVOF ARPT.
A110-4HELICOPTER TAKEOFFS AND LANDINGS RESTRICTED TO RY 08/26 ONLY.
A110-7PARALLEL TAXIWAY NON-STANDARD WIDTH, 18 FT ASP.
A110-8AVOID OVERFLYING HOUSING AREA WNW OF ARPT BELOW 300 FT WHEN IN THE TRAFFIC PATTERN FOR RWY 8.
A110-9FOR CD CTC MC GUIRE APCH AT 609-754-2767.
A17-M1ARPT UNATNDD THANKSGIVING & CHRISTMAS DAY. CHRISTMAS & THANKSGIVING EVE HRS 0800-1200. NEW YEARS DAY HRS 1100-1800.
A70-AJET A AVAILABLE 24-HOUR SELF SERVICE WITH CREDIT CARD OR TRUCK DURING ATTENDED HOURS.
A81-APTACTVT MIRL RY 08/26 AND REIL RY 08 & 26 -123.3.
SOUTH JERSEY RGNL (ICAO: KVAY, IATA: VAY) is a public airport located in MOUNT HOLLY, NJ, US.
