iFlightPlanner



...

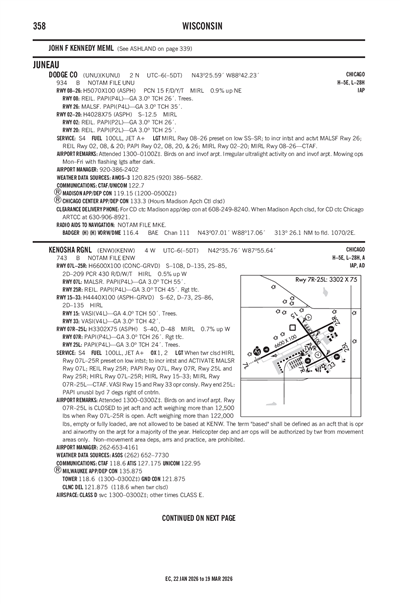

DODGE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KUNU
ICAO KUNUIATA UNULocal UNU
DODGE COUNTY
PublicPUB

2 miles N of JUNEAU, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 25' 35"N 88° 42' 14"W
Elevation
934' MSL
Pattern Alt
1934' MSL
Mag Variation
3°W
Declination
1°W
Fuel
JET A (FSII), 100LL
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KUNU VFR
9:55 PM CST
Clear
10sm
33°F
29°F
30.19"Hg
Calm
AO2 T00031014 TSNO
METAR KUNU 040355Z AUTO 00000KT 10SM CLR 00/M01 A3019 RMK AO2 T00031014 TSNO
+ Add Your Business

KUNU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.825
(920) 386-5682

Common

CTAF 122.7
MIRL RWY 08/26 PRESET ON LOW SS-SR; TO INCR INTST & ACTVT MALSF RWY 26; REIL RWY 02, 08 & 20; PAPI RWY 02, 08, 20 & 26; MIRL RWY 02/20; MIRL RWY 08/26 - CTAF.
UNICOM 122.7

Approach

MADISON APPROACH 119.15

Departure

MADISON DEPARTURE 119.15

Center

MADISON CENTER 133.3
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQS 133.3/257.925 (LONE ROCK RCAG) WHEN MADISON APCH CTL CLSD.

Terminal Area Forecast

KUES (31nm)
Tue, 3/3 5:33 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 9:00 AM CST
Scattered 25,000'
Few 2,100'
6sm
090° 4kts
VFR
9:00 AM CST - 6:00 PM CST
Few 24,000'
6sm
VRB° 4kts
TAF KUES 032333Z 0400/0424 09004KT P6SM FEW021 SCT250
   FM041500 VRB04KT P6SM FEW240
KUNU
EffectiveExpiresCategoryNOTAM
Domestic
2/5/26
1410Z
Runway!UNU 02/003 UNU RWY 20 RWY END ID LGT U/S 2602051410-2603312300EST
1/26/26
1610Z
3/31/26
2359Z
!UNU 01/028 UNU OBST TOWER LGT (ASR 1030364) 432809.00N0884932.00W (5.9NM WNW UNU) 1237.9FT (317.9FT AGL) U/S 2601261610-2603312359
1/25/26
2135Z
3/25/26
2359Z
!UNU 01/027 UNU OBST TOWER LGT (ASR 1302878) 433300.97N0885521.43W (12.1NM NW UNU) 1166FT (260FT AGL) U/S 2601252135-2603252359
FDC
1/11/26
1644Z
!FDC 6/2124 UNU IAP DODGE COUNTY, JUNEAU, WI.
RNAV (GPS) RWY 8, AMDT 1...
CHART NOTE: VDP NA WHEN USING MSN ALTIMETER SETTING.
CHART NOTE: CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE MSN ALTIMETER SETTING AND INCREASE MDA 100 FEET AND LNAV VISIBILITY CAT C 1/4 SM.
AWOS OUT OF SERVICE.
2601111644-2608231644EST
1/11/26
1644Z
!FDC 6/2123 UNU IAP DODGE COUNTY, JUNEAU, WI.
RNAV (GPS) RWY 26, AMDT 1...
CHART NOTE: VDP NA WHEN USING MSN ALTIMETER SETTING.
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE MSN ALTIMETER SETTING AND INCREASE MDA 100 FEET AND LNAV VISIBILITY CAT C 1/4 SM.
AWOS OUT OF SERVICE.
2601111644-2608231644EST
10/23/25
1549Z
!FDC 5/5309 UNU IAP DODGE COUNTY, JUNEAU, WI.
RNAV (GPS) RWY 2, AMDT 1A...
LNAV VIS CAT C 1 3/8.
2510231549-2710231549EST
No
0700-1900
DODGE COUNTY
DODGE CO HWY DEPT
JUNEAU, WI 53039
Phone: 920-386-3650
TOM DAVID
W6491 STATE HIGHWAY 26
JUNEAU, WI 53039
Phone: 920-386-2402
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
UNU
--
MIRL RWY 08/26 PRESET ON LOW SS-SR; TO INCR INTST & ACTVT MALSF RWY 26; REIL RWY 02, 08 & 20; PAPI RWY 02, 08, 20 & 26; MIRL RWY 02/20; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

4028 ft. x 75 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 17°197°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 25' 18"N 43° 25' 56"N
Longitude 88° 42' 07"W 88° 41' 51"W
Elevation 930' 932'
Threshold Crossing Height 26 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 08/26

5070 ft. x 100 ft.
ASPH
Excellent
NONE
MED
15/F/D/Y/T
--
--
--
--
  Runway 08 Runway 26
True Heading 80°260°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR GOOD
Latitude 43° 25' 30"N 43° 25' 39"N
Longitude 88° 42' 60"W 88° 41' 52"W
Elevation 890' 934'
Threshold Crossing Height 26 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes
A110-1IREG ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-4BIRDS ON & INVOF ARPT.
A110-6MOWING OPNS MON-FRI WITH FLASHING LGTS AFT DARK.
A110-7FOR CD CTC MADISON APP/DEP CON AT 608-249-8240. WHEN MADISON APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A81-APTMIRL RWY 08/26 PRESET ON LOW SS-SR; TO INCR INTST & ACTVT MALSF RWY 26; REIL RWY 02, 08 & 20; PAPI RWY 02, 08, 20 & 26; MIRL RWY 02/20; MIRL RWY 08/26 - CTAF.
DODGE COUNTY (ICAO: KUNU, IATA: UNU) is a public airport located in JUNEAU, WI, US.
