KUNO
WEST PLAINS RGNL
Public
PUB
10 miles NW of WEST PLAINS, MO
View on
Map
Status
Operational
Coordinates
36° 52' 42"N
91° 54' 10"W
Elevation
1228' MSL
Pattern Alt
2228' MSL
Mag Variation
02E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
MEMPHIS (ZME)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KUNO FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
ASOS
ASOS
417-257-1313
123.825
FAA A/FD Pages
FAA A/FD Page

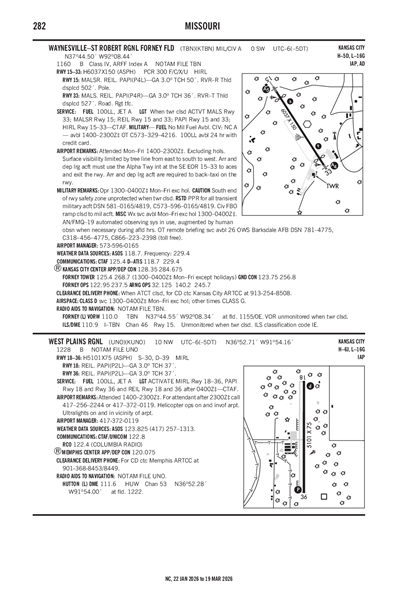

Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 18
RNAV (GPS) RWY 36
Terminal Area Forecast
No TAF is available for this location.
KUNO
Domestic
1/13/25
0436Z
!UNO 01/007 UNO OBST TOWER LGT (ASN 2021-ACE-281-OE) 365249N0920201W (6.3NM W UNO) 1445FT (285FT AGL) U/S 2501130436-2502270436
1/2/25
1724Z
!UNO 01/002 UNO AIRSPACE SEE ZKC 12/330 HIGH SPEED ACFT DLY SR-SS 2501021724-2512312359
12/16/24
1248Z
!UNO 12/003 UNO OBST TOWER LGT (ASR 1251834) 364815.00N0921156.00W (15.0NM WSW UNO) 1367.5FT (344.8FT AGL) U/S 2412161248-2502162359
12/8/24
0806Z
!UNO 12/002 UNO OBST TOWER LGT (ASR 1307040) 364846.70N0915405.40W (3.9NM S UNO) 1524FT (317FT AGL) U/S 2412080806-2501220805
1/31/24
1909Z
!UNO 01/026 UNO AD AP WILDLIFE HAZARD DEER 2401311909-PERM
FDC
4/3/23
2008Z
!FDC 3/5465 UNO ODP WEST PLAINS RGNL, WEST PLAINS, MO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
IN ADDITION TO PUBLISHED TAKEOFF OBSTACLE NOTES, ADD THE FOLLOWING:
TAKEOFF OBSTACLE NOTES: RWY 18: TERRAIN, SIGN BEGINNING 10 FT FROM DER, 199 FT RIGHT OF CENTERLINE, UP TO 1235 FT MSL.
TERRAIN 12 FT FROM DER, 280 FT LEFT OF CENTERLINE, 1232 FT MSL.
TREE 94 FT FROM DER, 493 FT RIGHT OF CENTERLINE, 1257 FT MSL. RWY 36: TERRAIN, ELECTRICAL SYSTEM BEGINNING 5 FT FROM DER, 37 FT RIGHT OF CENTERLINE, UP TO 1227 FT MSL.
LIGHT POLE 39 FT FROM DER, 112 FT LEFT OF CENTERLINE, 2 FT AGL/1226 FT MSL.
TREE 129 FT FROM DER, 492 FT RIGHT OF CENTERLINE, 22 FT AGL/1249 FT MSL.
TREE 131 FT FROM DER, 530 FT RIGHT OF CENTERLINE, 21 FT AGL/1250 FT MSL.
TREE 281 FT FROM DER, 471 FT LEFT OF CENTERLINE, 1236 FT MSL. 2304032008-2504032008EST
ATC Tower
No
Attendance
0800-1700
FOR ATTENDANT AFTER 1700 CALL 417-257-1539 OR 417-274-4043.
Owner
CITY OF WEST PLAINS
1910 HOLIDAY LANE-BOX 710
WEST PLAINS, MO 65775
Phone: 417-256-7176
Manager
BRIAN MITCHELL
4523 CO ROAD 2340
POMONA, MO 65789
Phone: 417 372-3997
FSS
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
NOTAM
UNO
Light Schedule
--
Lights
ACTVT MIRL RY 18/36; PAPI RYS 18; 36 & REIL RYS 18 & 36 AFT 2200 - CTAF.
Beacon
N/A
BCN LOCATED ON WATER TWR WEST OF ARPT.
Wind Indicator
Yes
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Air Ambulance
Pilot Instruction
Runway 18/36
Dimensions
5101 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
30,000lbs
Double Wheel
39,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
181°
1°
Traffic Pattern
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
36° 53' 08"N
36° 52' 17"N
Longitude
91° 54' 09"W
91° 54' 10"W
Elevation
1,225'
1,228'
Threshold Crossing Height
37 ft. AGL
37 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
HELICOPTER OPS ON & INVOF ARPT.
A110-2
FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
WEST PLAINS RGNL (ICAO: KUNO, IATA: UNO) is a public airport located in WEST PLAINS, MO.
