KULM
NEW ULM MUNI
PublicPUB

2 miles W of NEW ULM, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 19' 06"N 94° 30' 06"W
1011' MSL
2011' MSL
01E
JET A, 100LL
PRINCETON (PNM)
OMAHA
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KULM VFR
5:57 AM CST
Clear
10sm
43°F
36°F
30.14"Hg
140° 6kts
AO2
KULM 091157Z AUTO 14006KT 10SM CLR 06/02 A3014 RMK AO2
Add Your Business

KULM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
507-359-1656
 118.325

FAA A/FD Pages

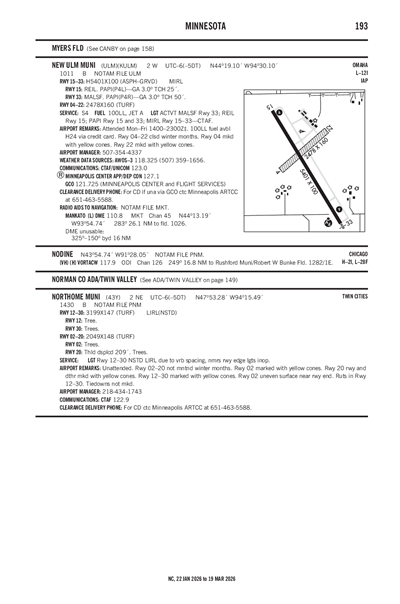

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMKT (26nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Overcast 20,000'
6sm
120° 7kts
VFR
10:00 AM CST - 3:00 PM CST
Overcast 8,000'
6sm
130° 10kts
VFR
3:00 PM CST - 5:00 PM CST
Light Showers and Rain
Overcast 3,500'
6sm
110° 11kts
MVFR
5:00 PM CST - 10:00 PM CST
Light Showers and Rain and Mist
Overcast 2,000'
6sm
120° 10kts
MVFR
10:00 PM CST - 2:00 AM CST
Overcast 1,500'
6sm
130° 7kts
IFR
2:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist
Overcast 900'
4sm
130° 4kts
KMKT 091120Z 0912/1012 12007KT P6SM OVC200
   FM091600 13010KT P6SM OVC080
   FM092100 11011KT 6SM -SHRA OVC035
   FM092300 12010KT 6SM -SHRA BR OVC020
   FM100400 13007KT P6SM OVC015
   FM100800 13004KT 4SM -SHRA BR OVC009
KULM
Domestic
11/4/241619Z !ULM 11/001 ULM OBST TOWER LGT (ASR 1220429) 441956.20N0942533.20W (3.4NM ENE ULM) 1255.9FT (251.0FT AGL) U/S 2411041619-2503041619
8/5/241729Z !ULM 08/001 ULM AD AP FULL SERVICE JET A FUEL NOT AVBL 2408051729-2501012359
No
MON-FRI 0800-1700
CITY OF NEW ULM
100 N BROADWAY, PO BOX 636
NEW ULM, MN 56073-0636
Phone: 507-359-8245
BRYAN CHRISTENSEN
1617 HIGHWAY 14 W
NEW ULM, MN 56073-2331
Phone: 507-354-4337
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
ULM
--
ACTVT MALSF RWY 33; REIL RWY 15; PAPI RWY 15 & 33; MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
None

Runway 04/22

2478 ft. x 160 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 49°229°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 44° 19' 04"N 44° 19' 20"N
Longitude 94° 30' 21"W 94° 29' 55"W
Elevation 1,003' 1,001'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 15/33

5401 ft. x 100 ft.
ASPH
Good
GRVD
MED

--
--
--
--
  Runway 15 Runway 33
True Heading 151°331°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 19' 27"N 44° 18' 40"N
Longitude 94° 30' 23"W 94° 29' 47"W
Elevation 1,005' 1,003'
Threshold Crossing Height 25 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes No
A110-3GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.
A110-5FOR CD IF UNA VIA GCO CTC MINNEAPOLIS ARTCC AT 651-463-5588.
NEW ULM MUNI (ICAO: KULM, IATA: ULM) is a public airport located in NEW ULM, MN.
