KUGN
WAUKEGAN NTL
Public
PUB
35 miles N of CHICAGO/WAUKEGAN, IL
View on
Map
Status
Operational
Coordinates
42° 25' 20"N
87° 52' 04"W
Elevation
728' MSL
Pattern Alt
1728' MSL
Mag Variation
03W
Fuel
JET A, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
7/11/24-8/8/24
KUGN
IFR
5:51 AM CDT
RAW
Mist
Clear
Viz
1.75sm
Temp
57°F
Dew
54°F
Pres
29.96"Hg
Wind
Calm
RMK
AO2 VIS 3/4V5 SLP138 T01390122 $
KUGN 191051Z 00000KT 1 3/4SM BR CLR 14/12 A2996 RMK AO2 VIS 3/4V5 SLP138 T01390122 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KUGN FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
120.05
ATIS
ATIS
132.4
Emergency
EMERG
121.5
Ground
GND/P
121.65
Tower
LCL/P
120.05
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

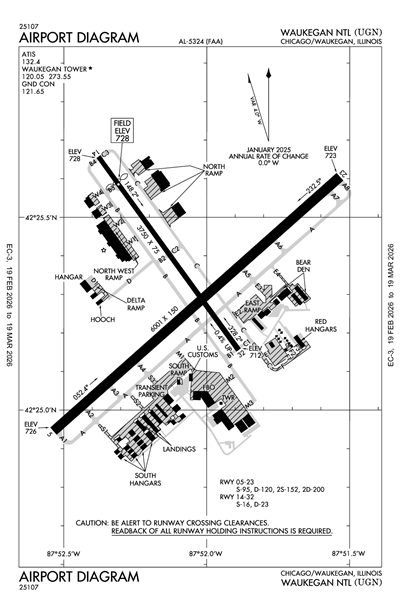

AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
JORJO FIVE (RNAV)
MONKZ FIVE (RNAV)
Hotspot
No Documents
Standard Term. Arrival
GOPAC THREE (RNAV)
Instrument Approach
ILS OR LOC RWY 23
RNAV (GPS) RWY 05
RNAV (GPS) RWY 23
Terminal Area Forecast
KENW (11nm)
RAW
Reported
Thu, 9/19 3:51 AM CDT
Valid
Thu, 9/19 4:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
4:00 AM CDT - 1:00 PM CDT
Scattered 25,000'
Viz
6sm
Wind
Calm
IFR
Temporary
4:00 AM CDT - 7:00 AM CDT
Mist
No Clouds
Viz
2sm
Wind
Calm
VFR
1:00 PM CDT - 11:00 PM CDT
Few 25,000'
Viz
6sm
Wind
150° 7kts
VFR
11:00 PM CDT - 1:00 AM CDT
Scattered 23,000'
Viz
6sm
Wind
160° 6kts
KENW 190851Z 1909/2006 00000KT P6SM SCT250
TEMPO 1909/1912 2SM BR
FM191800 15007KT P6SM FEW250
FM200400 16006KT P6SM SCT230
KUGN
Domestic
9/9/24
1853Z
!UGN 09/002 UGN AD AP ABN U/S 2409091853-2409241853
ATC Tower
Yes
Attendance
ALL
Owner
WAUKEGAN PORT DISTRICT
PO BOX 620
WAUKEGAN, IL 60079
Phone: 847-244-0055
Manager
SKIP GOSS
2601 PLANE REST DRIVE
WAUKEGAN, IL 60087
Phone: 847-244-0055
FSS
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
NOTAM
UGN
Light Schedule
--
Lights
ACTVT MALSR RWY 23; REIL RWY 05; HIRL RWY 05/23; TWY LGTS - CTAF. WHEN ATCT CLSD, MIRL RWY 14/32 PRESET TO LOW INTST, TO INCR INTST & ACTVT - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
85
# Multi Engine
8
# Jets
39
# Helicopters
1
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High & Low Pressure
Bulk Oxygen
High & Low Pressure
Other Services
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Runway 05/23
Dimensions
6001 ft. x 150 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
Single Wheel
95,000lbs
Double Wheel
120,000lbs
Double Tandem
200,000lbs
Dual Dbl Tand
--
Runway 05
Runway 23
True Heading
48°
228°
Traffic Pattern
Left
Right
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
42° 24' 57"N
42° 25' 36"N
Longitude
87° 52' 32"W
87° 51' 32"W
Elevation
726'
723'
Threshold Crossing Height
35 ft. AGL
52 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
V4L
V4L
Approach Lights
MALSR
Centerline Lights
No
No
Runway End Identifier Lights
Yes
No
Runway 14/32
Dimensions
3750 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
16,000lbs
Double Wheel
23,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 14
Runway 32
True Heading
144°
324°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
42° 25' 40"N
42° 25' 10"N
Longitude
87° 52' 23"W
87° 51' 53"W
Elevation
728'
712'
Threshold Crossing Height
30 ft. AGL
--
Visual Glide Path Angle
3.5°
--
Visual Slope Indicator
V4L
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-2
BIRDS ON & INVOF ARPT.
A110-5
FOR CD WHEN ATCT IS CLSD CTC CHICAGO APCH AT 847-289-0926.
WAUKEGAN NTL (ICAO: KUGN, IATA: UGN) is a public airport located in CHICAGO/WAUKEGAN, IL.
