BELLE PLAINE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTZT
ICAO KTZTIATA TZTLocal TZT
BELLE PLAINE MUNI
PublicPUB

1 miles SW of BELLE PLAINE, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 52' 44"N 92° 17' 04"W
Elevation
771' MSL
Pattern Alt
1771' MSL
Mag Variation
1°W
Declination
0°
Fuel
None Listed
FSS
FORT DODGE (FOD)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KGGI (23nm) MVFR
2:55 AM CST
Mist
Overcast 2,800'
Scattered 2,100'
5sm
35°F
32°F
30.19"Hg
Calm
AO2 T00151001
METAR KGGI 040855Z AUTO 00000KT 5SM BR SCT021 OVC028 02/00 A3019 RMK AO2 T00151001
+ Add Your Business

KTZT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RY 18/36 - CTAF.

Approach

CEDAR RAPIDS APPROACH 119.7

Departure

CEDAR RAPIDS DEPARTURE 119.7

Center

CEDAR RAPIDS CENTER 132.8
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQS 132.8/328.4 (CEDAR RAPIDS RCAG) WHEN CEDAR RAPIDS APCH CTL CLSD.

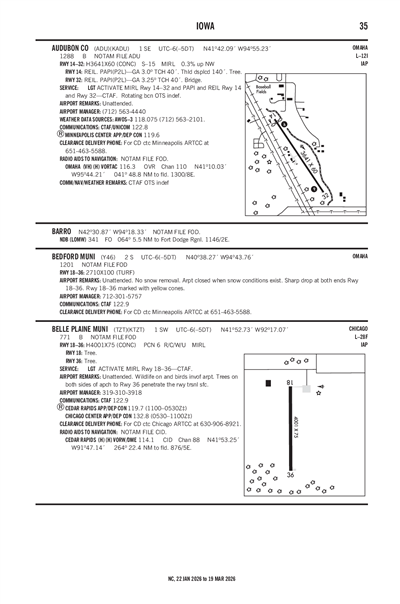

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCID (25nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
12:00 AM CST - 8:00 AM CST
Mist
Scattered 1,500'
5sm
040° 5kts
IFR
Temporary 4:00 AM CST - 8:00 AM CST
Mist
Overcast 1,000'
1sm
Calm
MVFR
8:00 AM CST - 2:00 PM CST
Broken 1,800'
6sm
120° 7kts
MVFR
2:00 PM CST - 12:00 AM CST
Broken 3,000'
6sm
090° 5kts
TAF KCID 040520Z 0406/0506 04005KT 5SM BR SCT015
   TEMPO 0410/0414 1SM BR OVC010
   FM041400 12007KT P6SM BKN018
   FM042000 09005KT P6SM BKN030
KTZT
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
2022Z
4/26/26
2359Z
!FOD 02/421 TZT OBST TOWER LGT (ASR 1016991) 414257.00N0921723.00W (9.8NM S TZT) 1333.0FT (415.0FT AGL) U/S 2602262022-2604262359
2/26/26
1358Z
4/26/26
1357Z
!FOD 02/419 TZT OBST TOWER LGT (ASR 1257838) 413439.20N0922054.70W (18.3NM S TZT) 1220.5FT (308.7FT AGL) U/S 2602261358-2604261357
2/19/26
1813Z
4/19/26
1812Z
!FOD 02/268 TZT OBST TOWER LGT (ASR 1056817) 415857.00N0921758.00W (6.3NM N TZT) 1226.0FT (345.1FT AGL) U/S 2602191813-2604191812
2/12/26
2258Z
4/13/26
1200Z
!FOD 02/134 TZT OBST TOWER LGT (ASR 1228051) 415742.30N0920722.30W (8.8NM NE TZT) 1256.9FT (350.1FT AGL) U/S 2602122258-2604131200
FDC
9/12/25
1729Z
!FDC 5/2879 TZT ODP BELLE PLAINE MUNI, BELLE PLAINE, IA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
ADD TAKEOFF OBSTACLE NOTE: RWY 36, BUILDINGS BEGINNING 385FT FROM DER, 469FT LEFT OF CENTERLINE, UP TO 48FT AGL/822FT MSL. ALL OTHER DATA REMAINS AS PUBLISHED. 2509121729-2709121729EST
No
UNATNDD
CITY OF BELLE PLAINE
8TH AVE & 13TH ST.
BELLE PLAINE, IA 52208
Phone: 319-444-2200
STEPHEN BECK
1207 - 8TH AVENUE
BELLE PLAINE, IA 52208
Phone: 319-310-3918
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
--
ACTVT MIRL RY 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

4001 ft. x 75 ft.
CONC
Good
NONE
MED
6/R/C/W/U
--
--
--
--
  Runway 18 Runway 36
True Heading 177°357°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 53' 03"N 41° 52' 24"N
Longitude 92° 17' 06"W 92° 17' 03"W
Elevation 771' 769'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TREES ON BOTH SIDES OF APCH TO RWY 36 PENETRATE THE RWY TRSNL SFC.
A110-2WILDLIFE ON AND BIRDS INVOF ARPT.
A110-3FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A14CITY ADMINISTRATOR
A81-APTACTVT MIRL RY 18/36 - CTAF.
E111DETERMINATION PENDING.
BELLE PLAINE MUNI (ICAO: KTZT, IATA: TZT) is a public airport located in BELLE PLAINE, IA, US.
